DUPOW

Plastic dual belt conveyor - DUPOW

Model: dupow, Type: Plastic belt conveyor for wash tunnel

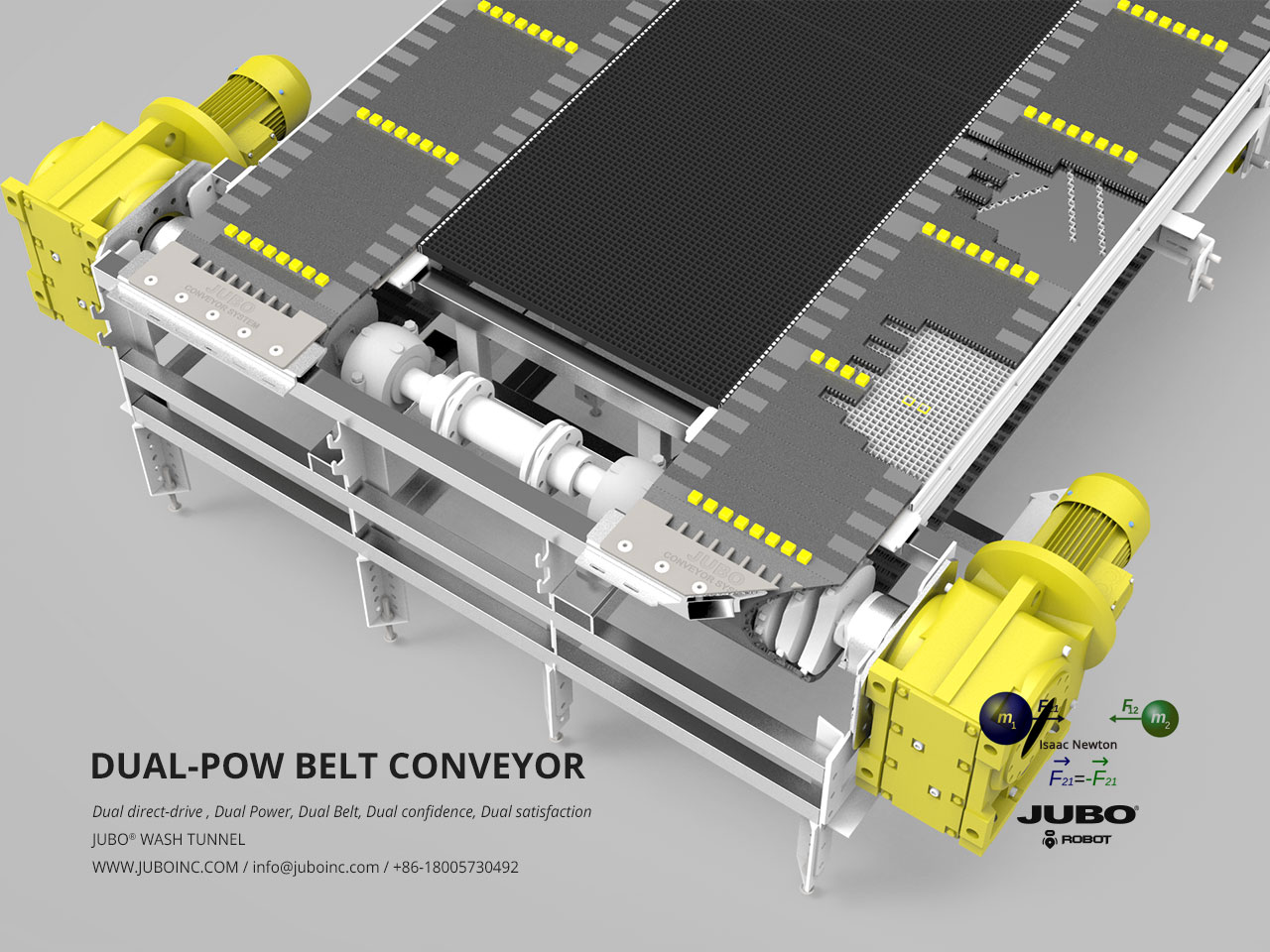

Plastic dual belt conveyor with dual direct driven system for wash tunnel DUPOW JUBO

Flat dual plastic conveyor for wash tunnel system.
Easy entry, Flat, Silent, Self-clean, Self-lubricant wash tunnel conveyor.

Description

JUBO plastic belt conveyor system is designed for loading cars in the wash tunnel.
It's so easy you can self load! Glide into the tunnel and put your car onto the belt conveyor, Sit back and prepare for car wash!
No rails! Each one of the belts are wide. No more stress about scratched wheels, alignment issues, or scuffed tires.
Open entrance. flat conveyor so that you will always feel safely loaded before the car wash begins.

Wash tunnel installation for plastic dual belt conveyor with dual direct driven DUPOW JUBO

JUBO dual belt conveyor is perfect for large vehicles or hand washing / detailing applications. The extra wide conveyor belt makes loading easy and provides extra space for staff members to stand during service multiple cars can be stacked closely on the belt in the same tunnel, maximizing service speed and minimizing space used. Detailing / wash equipment can be stacked down the tunnel along the conveyor, close at hand when the car is carried past. The JUBO WASH TUNNEL DUAL PLASTIC CONVEYOR reduces the probability of vehicle damage and eliminates rollers and other high-maintenance components.

Belt conveyor with holes for sprocket drive

The advantages of belt conveyor systems over traditional chain conveyors include easy loading & unloading, the ability to accept any size vehicle or tire width, no damage to tires, rims or suspension components and higher customer throughputs.

Studded belt conveyor for wash tunnel

Additionally, the incorporation of a dual belt conveyor system automatically future-proofs a tunnel against any problems associated with automatic braking systems

Studded belt conveyor for wash tunnel

Advantages

  1. Easy entry
  2. Flat
  3. Silent
  4. Self-clean
  5. Self-lubricant
  6. Heavy-loading
  7. Flexibility
  8. Safety
  9. High Torque

Specifications

Electricity and power supply3PHASE 380V 50HZ 4kW, 8A
3PHASE 220V 60HZ 4kW, 13A
Electrical systemFrench Schneider
MaterialHot dipped galvanized steel, Stainless steel 304
Control systemVFD, electric motor and gear box
Conveyor speed0 - 10000mm/min
0 - 395inch/min
Belt materialPlastic DuPont
Belt width600mm = 24inch
Belt length12000mm = 40ft
24000mm = 80ft
36000mm = 120ft
48768mm = 160ft
60960mm = 200ft
Belt quantity1 single
2 dual
Stud pusher distance600mm = 24inch
SprocketNylon (pa6) drive sprocket
Glide platesStainless steel 304
ShaftZinc-nickel coated drive-shafts and couplings
Pit Length Vary along with belt length
Pit width4600mm for drive area
2800 for belt area
Pit depth800 - 1200mm
30 – 50inch
Vehicle tyres lateral distanceMin inner width 1100mm = 45inch
Max outer width 2300mm = 90inch

Deployment

Deployed for outdoor wash stations, several self-serve wash bays and single automatic car wash system will be a good idea to work together. Steel frame is necessary to support the components.

Application

  1. Mini
  2. Sedan
  3. SUV
  4. MPV
  5. Pickup-Truck
