VENTUS
TOUCHLESS CAR WASH SYSTEM - VENTUS
Model: ventus, Type: In-bay automatic touchless (IBA Touchless)
Video of touchless car wash machine jubo360
Description

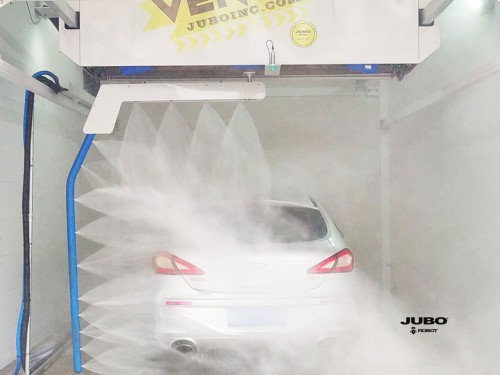

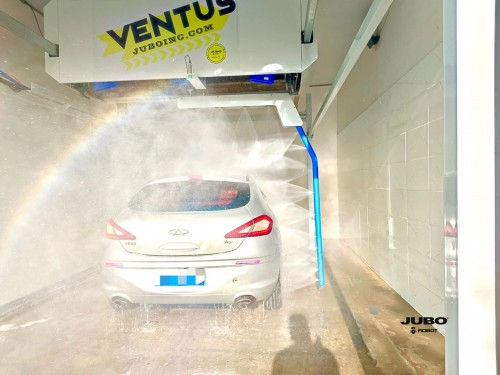

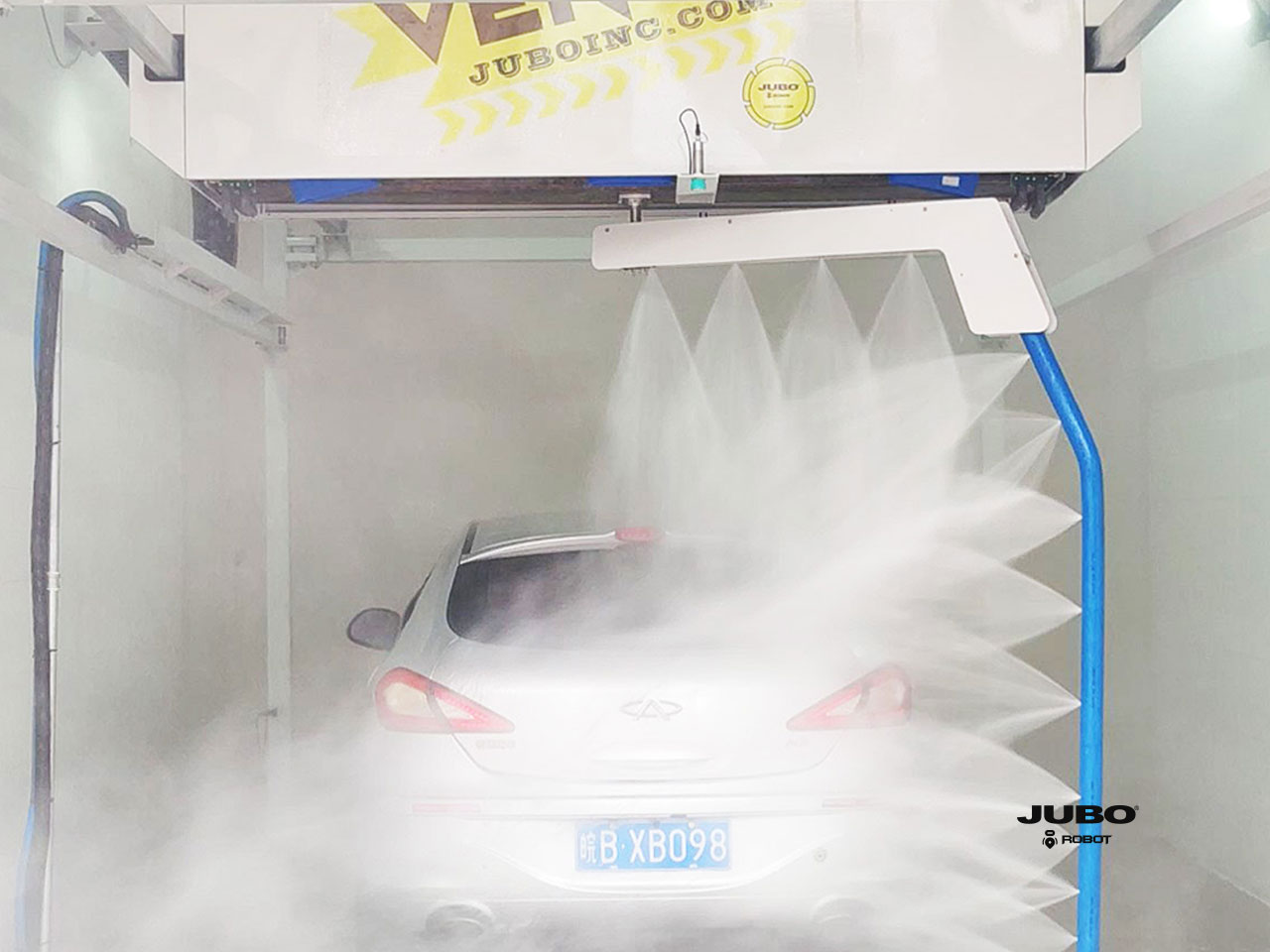

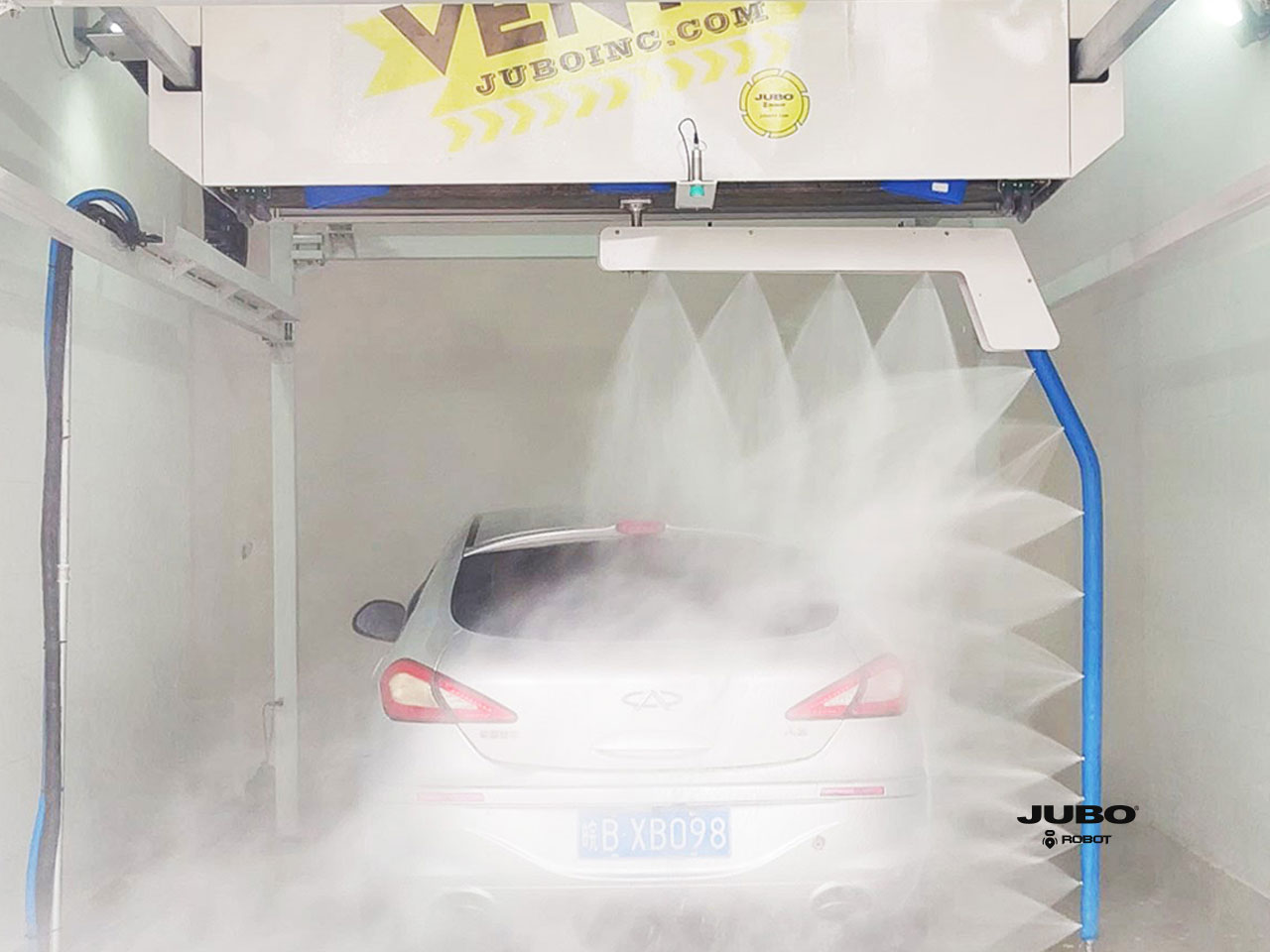

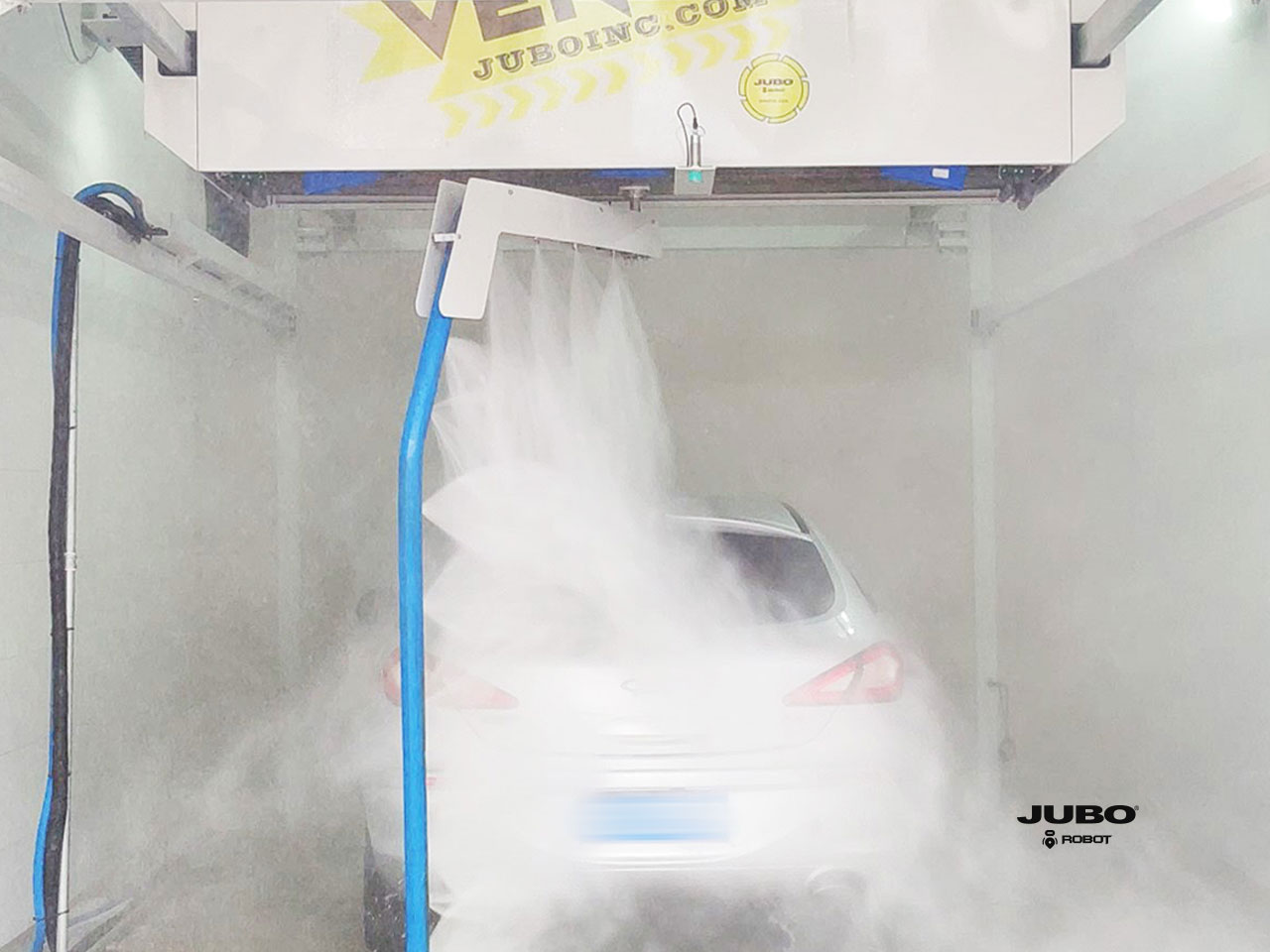

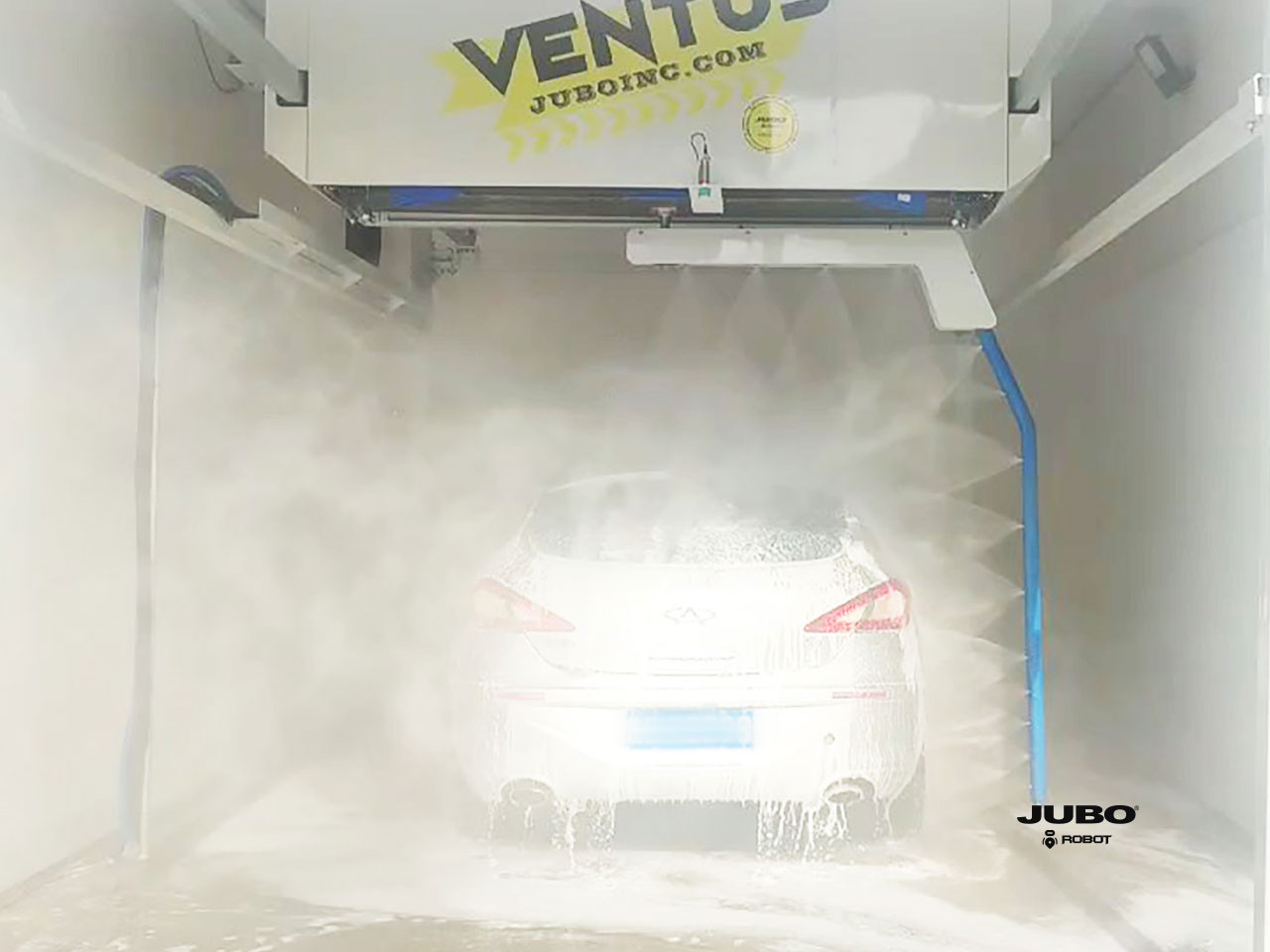

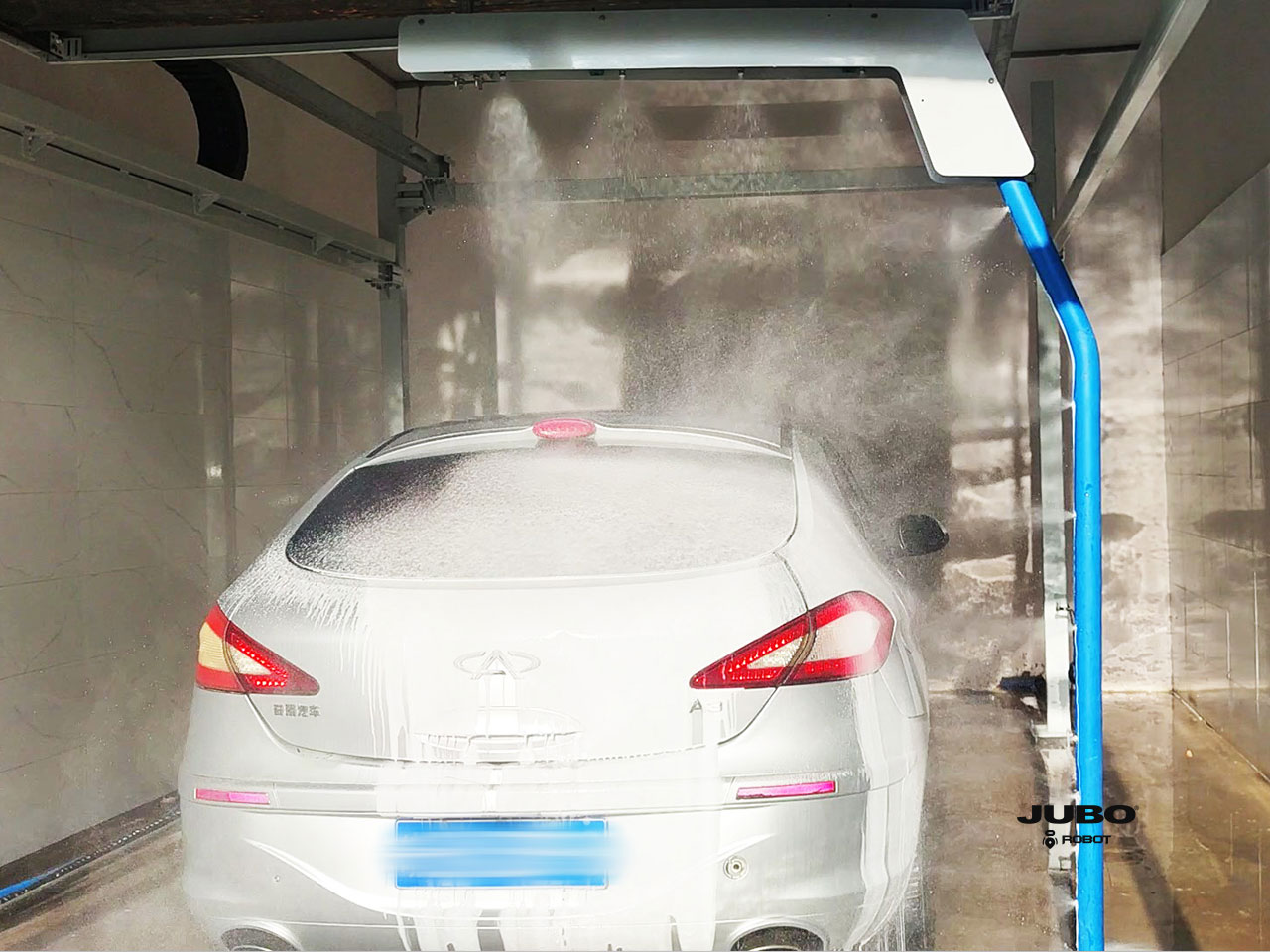

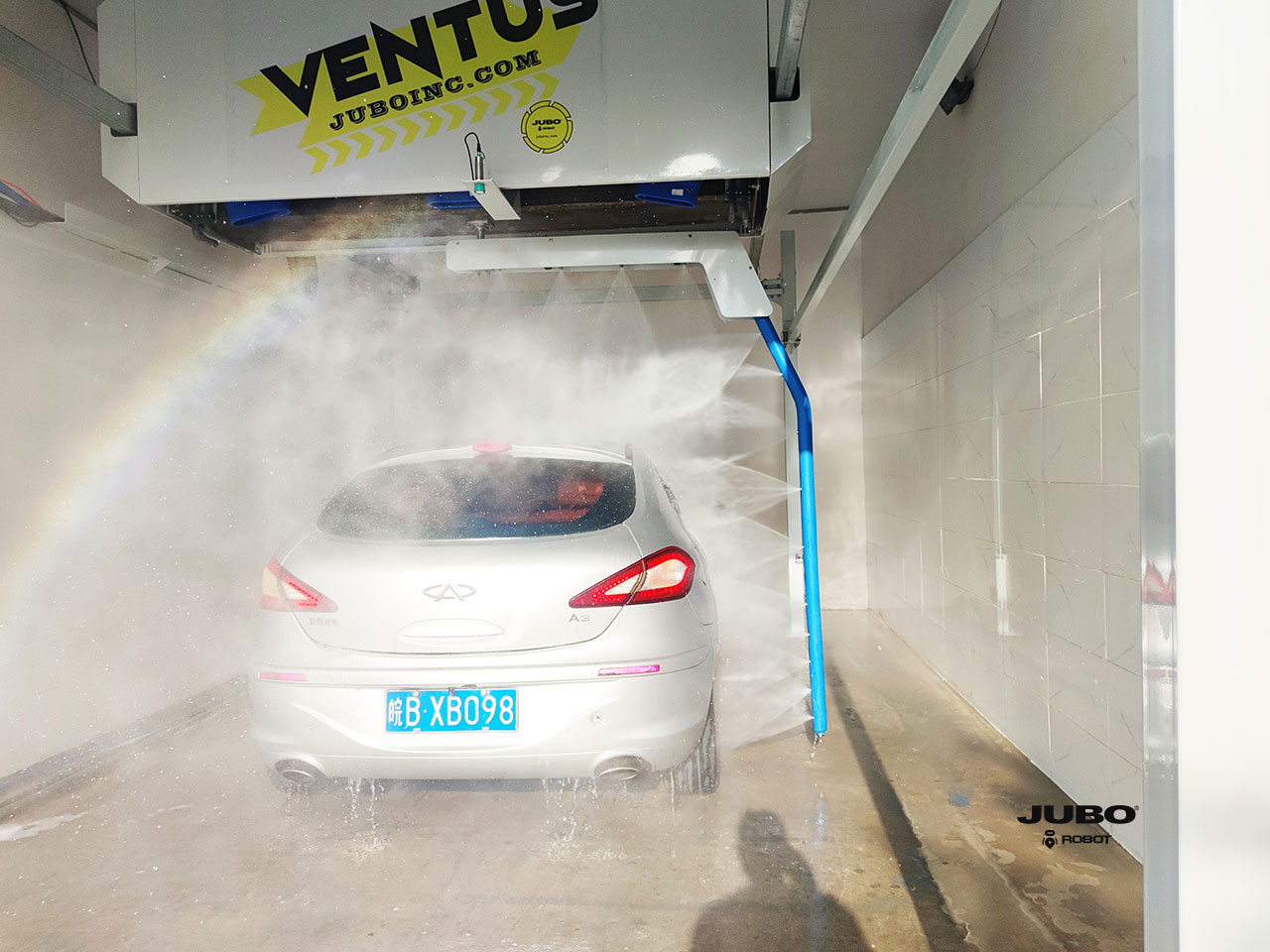

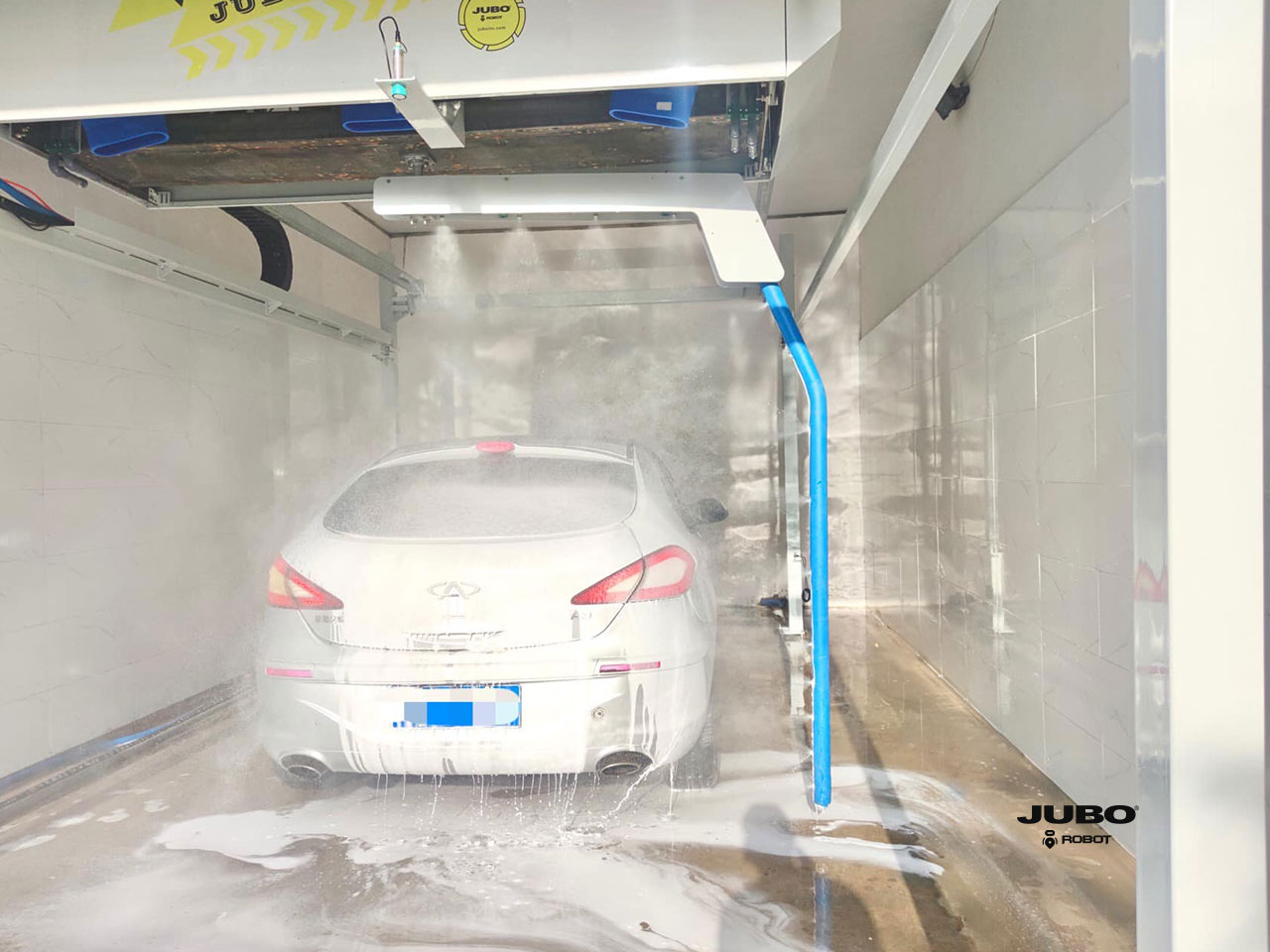

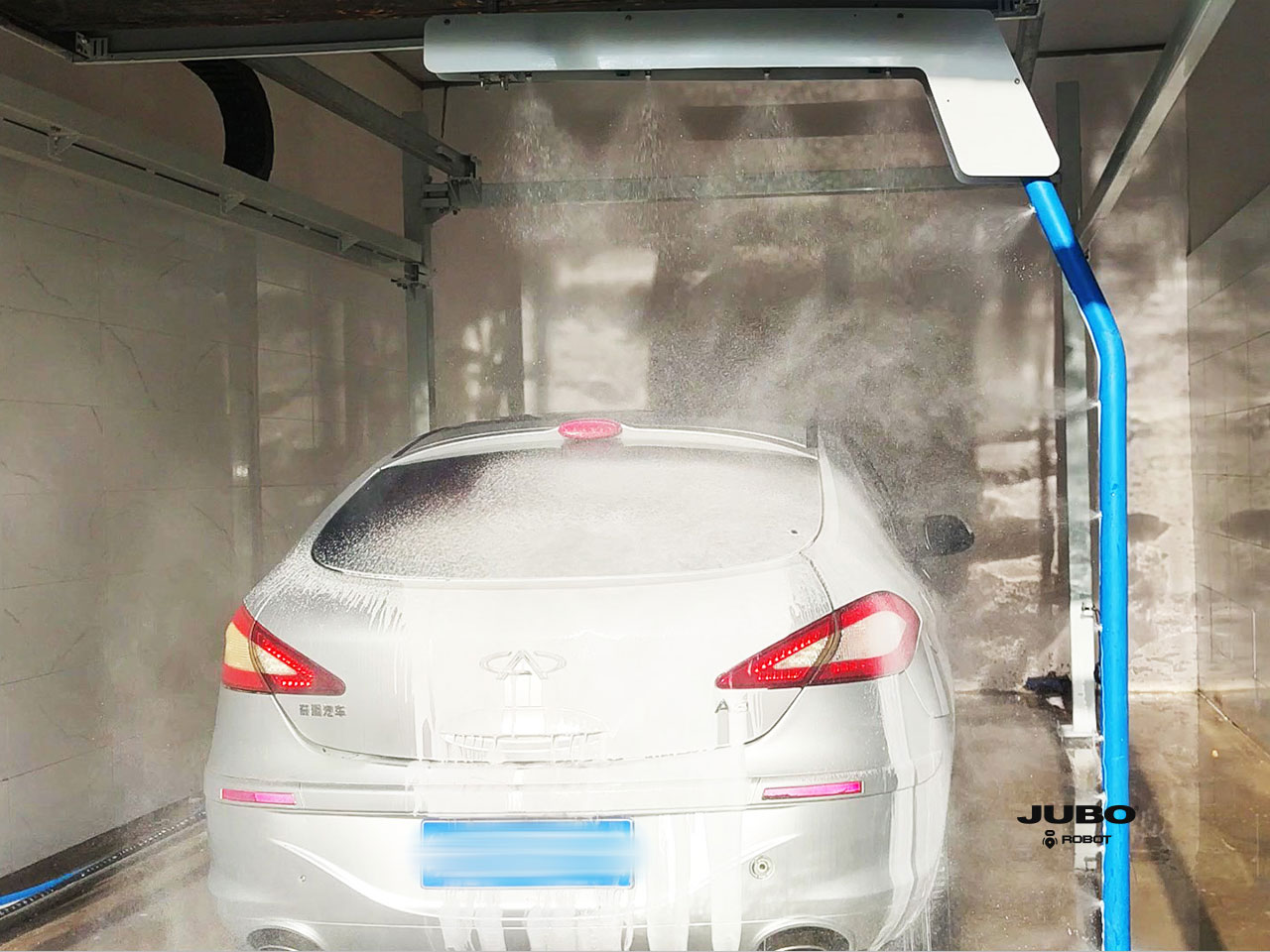

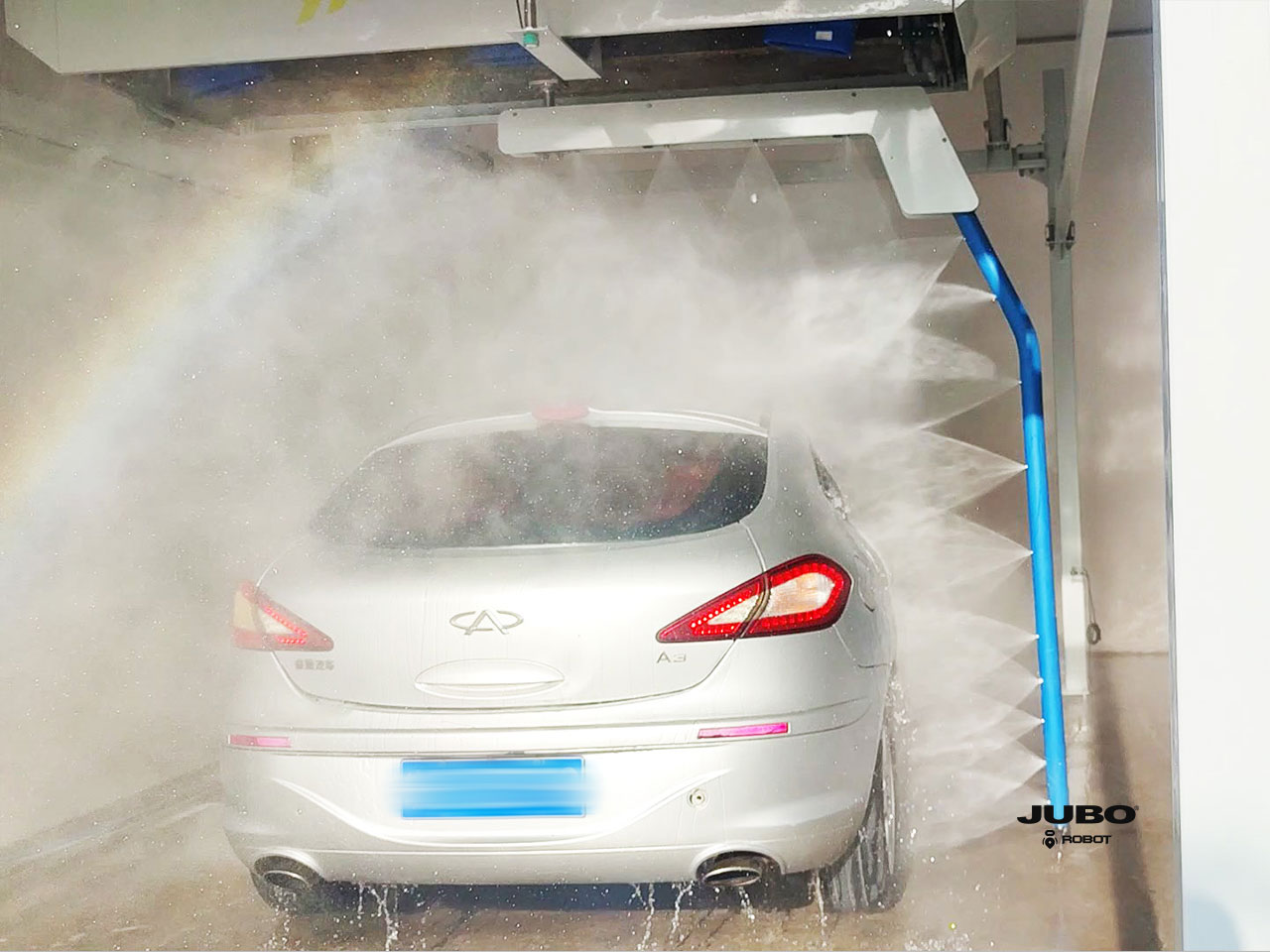

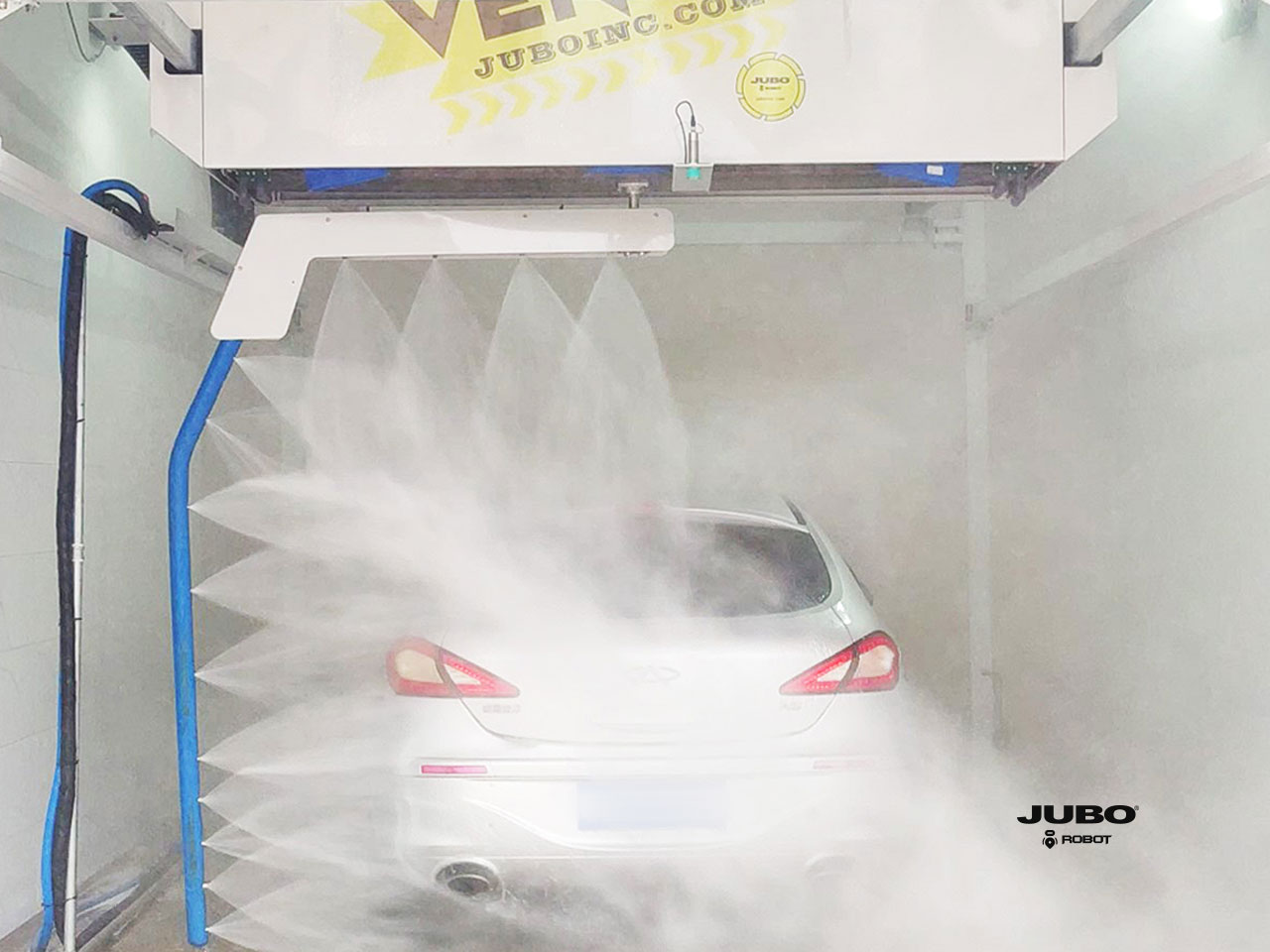

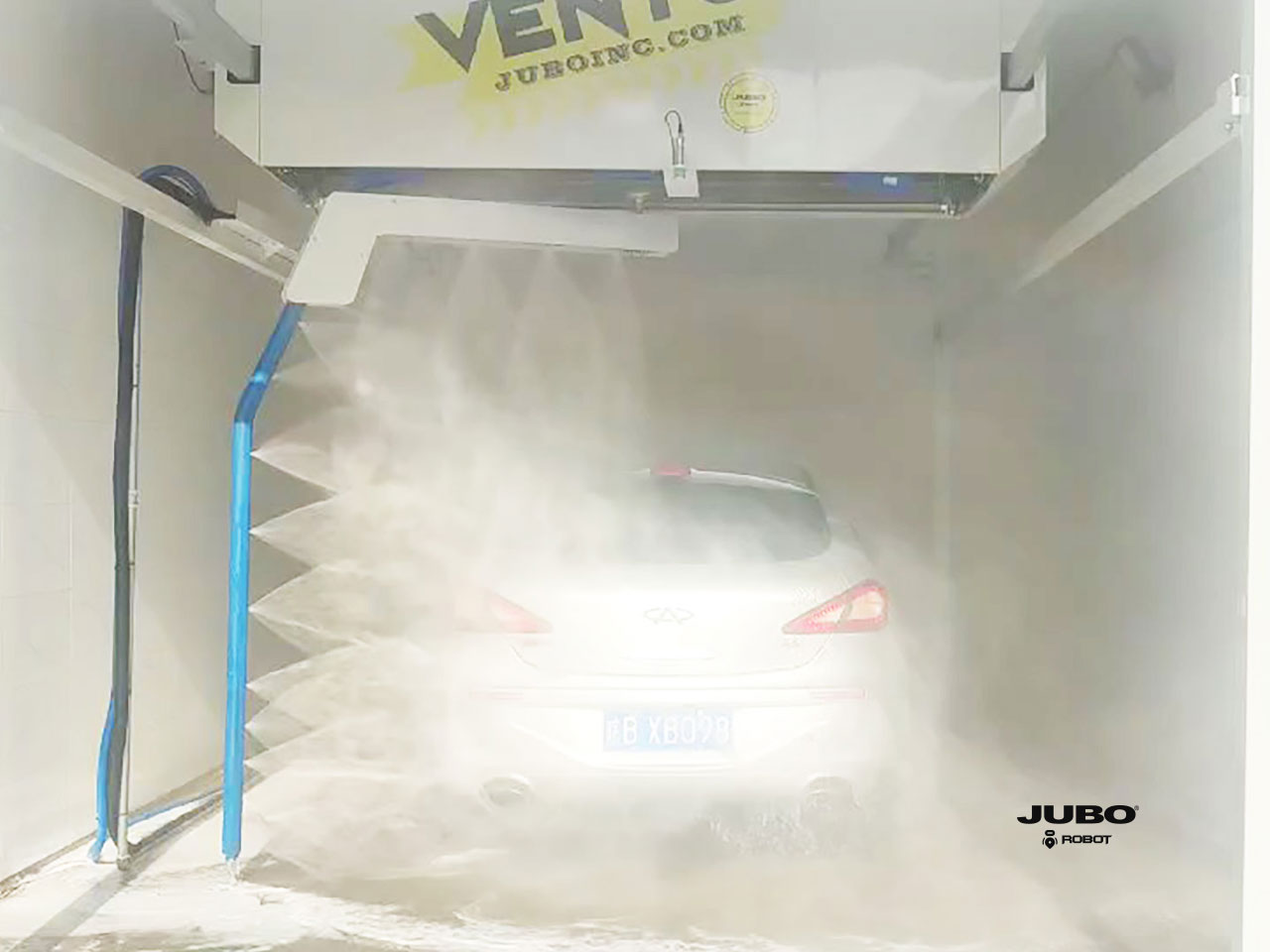

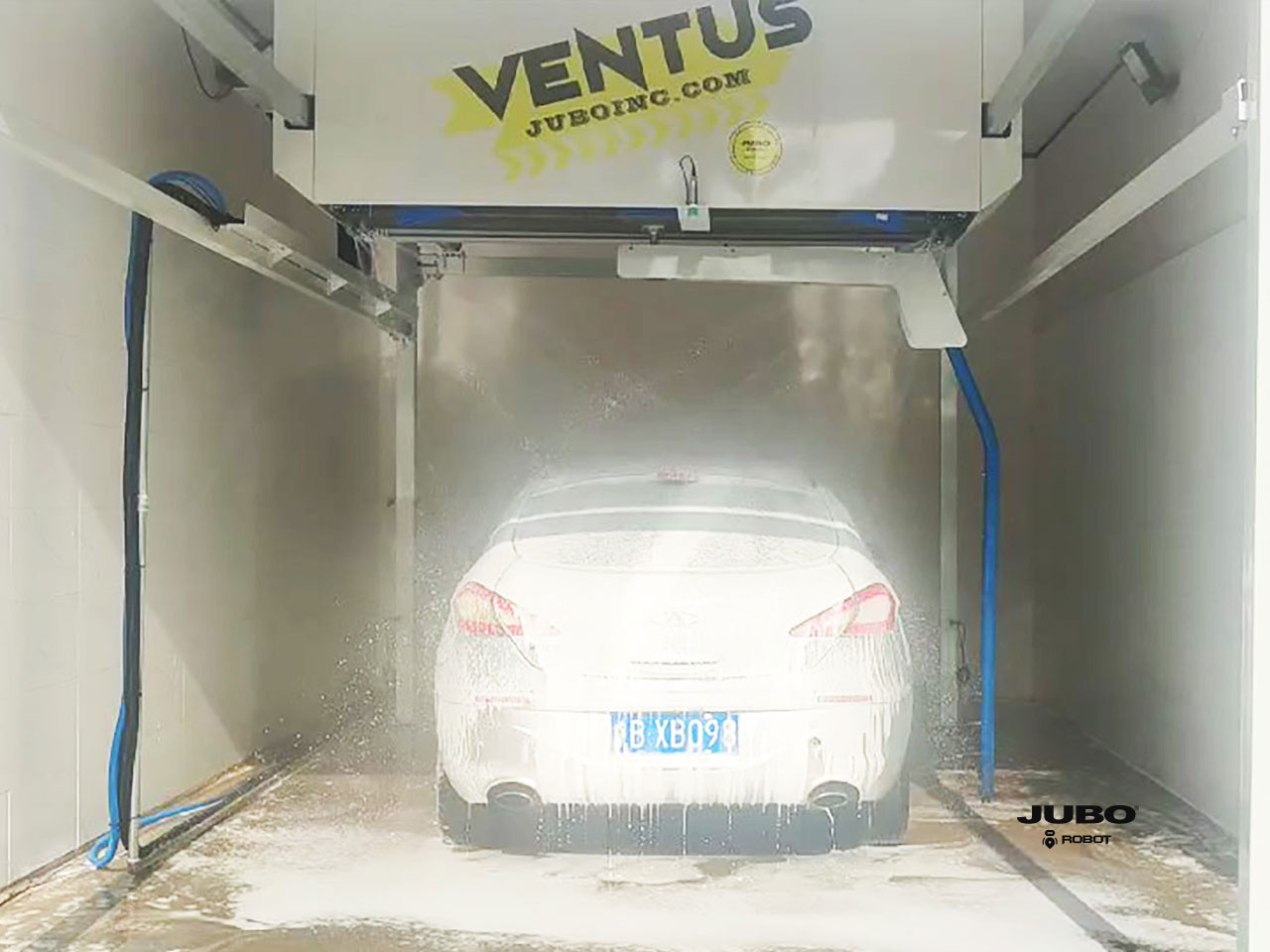

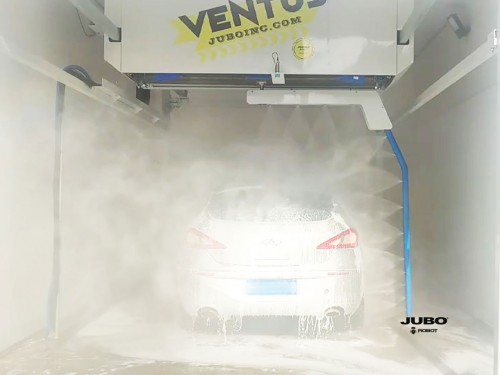

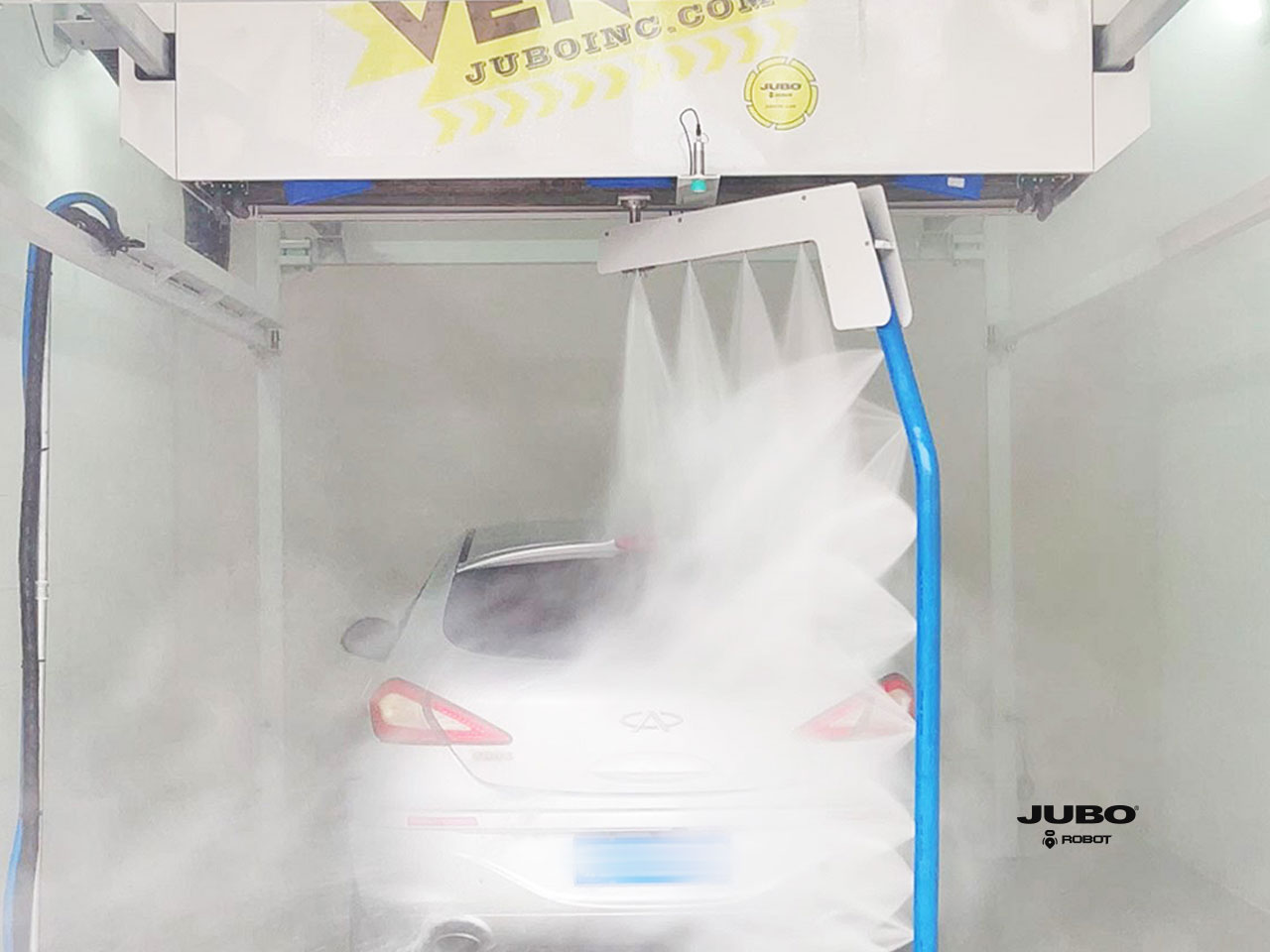

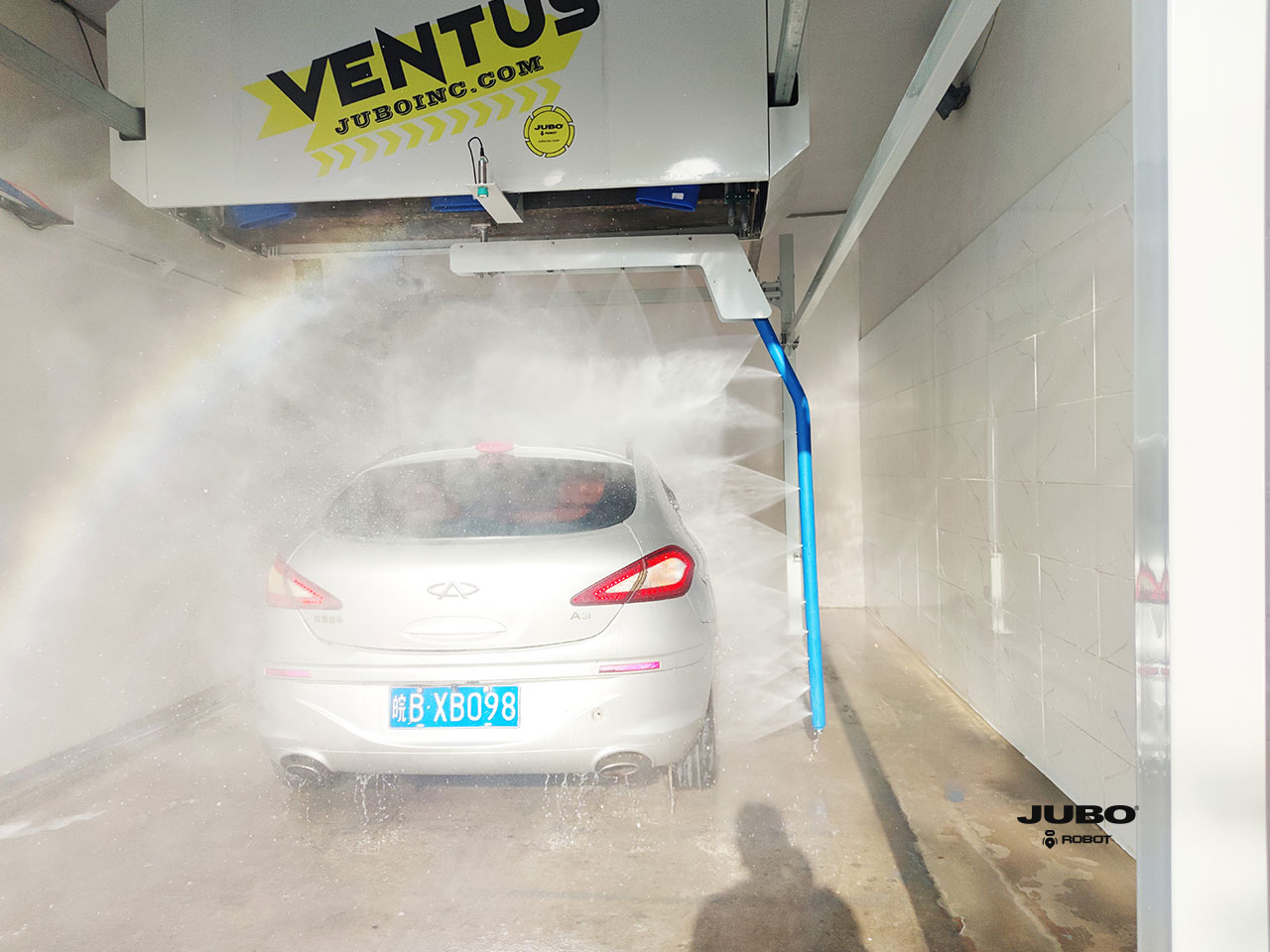

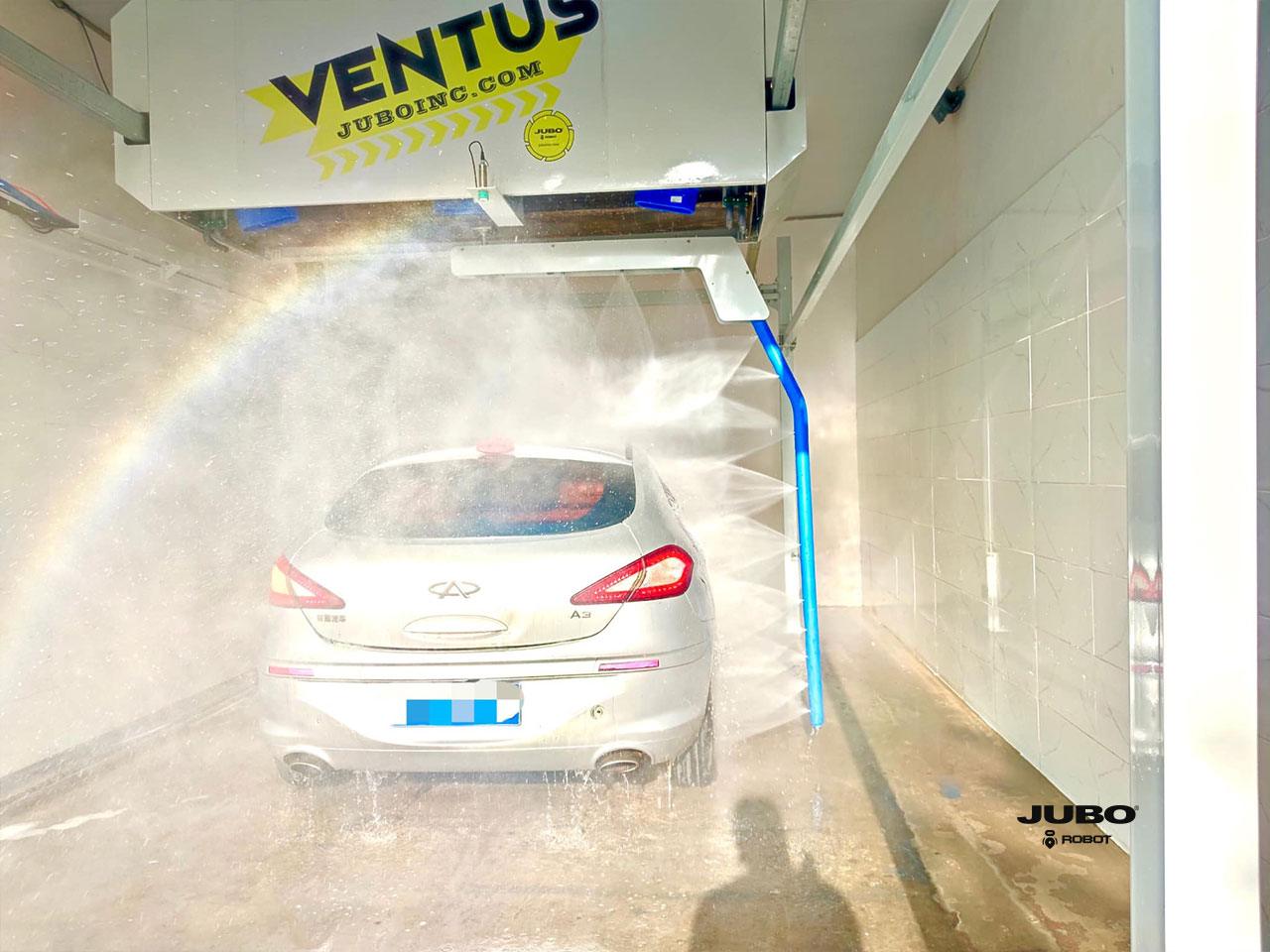

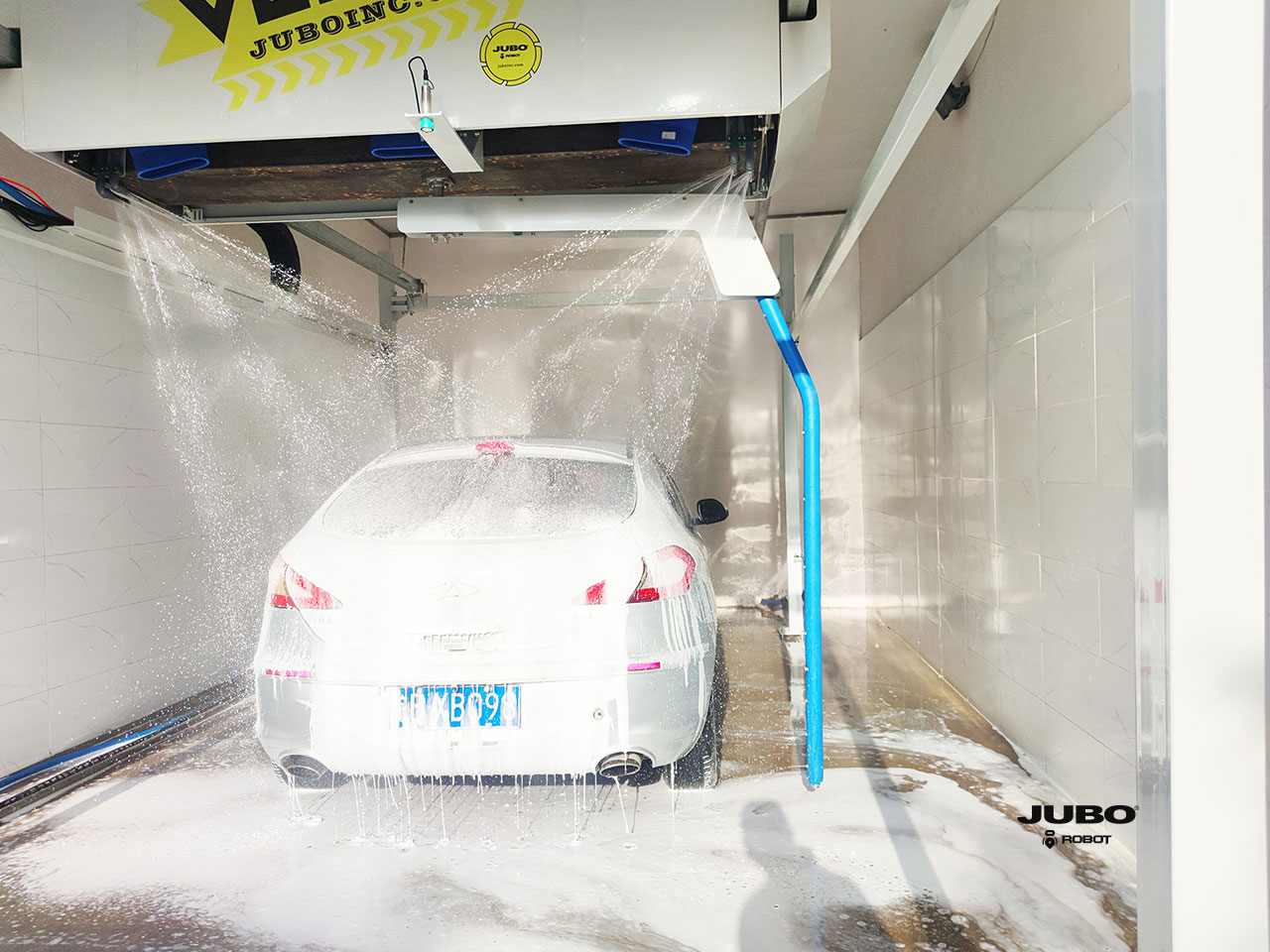

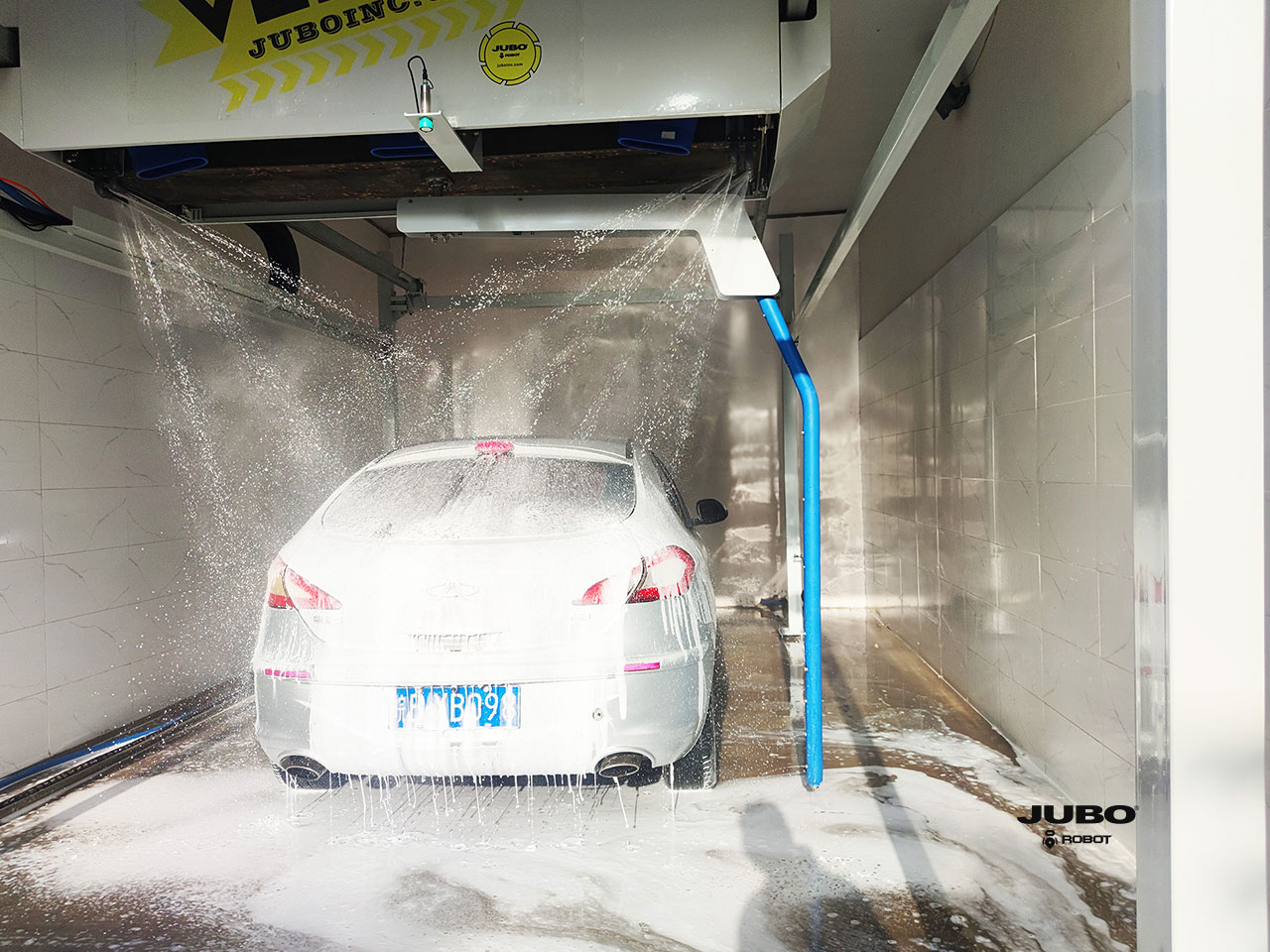

VENTUS touchless car wash is an automatic car wash system with touchfree smart 360 rotary arm featured, The high-pressure wash system with sector nozzles on 360 spray arm to form a high-pressure water blade to clean vehicles (mini, sedans, SUV, MPV etc.) – Combined with functions of HP Chassis wash, HP 360 wash, tri-color foam, Pre-soak, Hot wax, Spotless water, Dryer.
Higher Quality + Increased Revenue + Reduced Costs = Better Return!
Parvus has been long-term improved in in-bay automatic vehicle wash industry.
JUBO is dedicated to providing wash operators with the most simple, sophisticated, innovative equipment with features of Performance, Reliability and Quality.
Features
- 360 arm protection technology
- Chassis now is standard

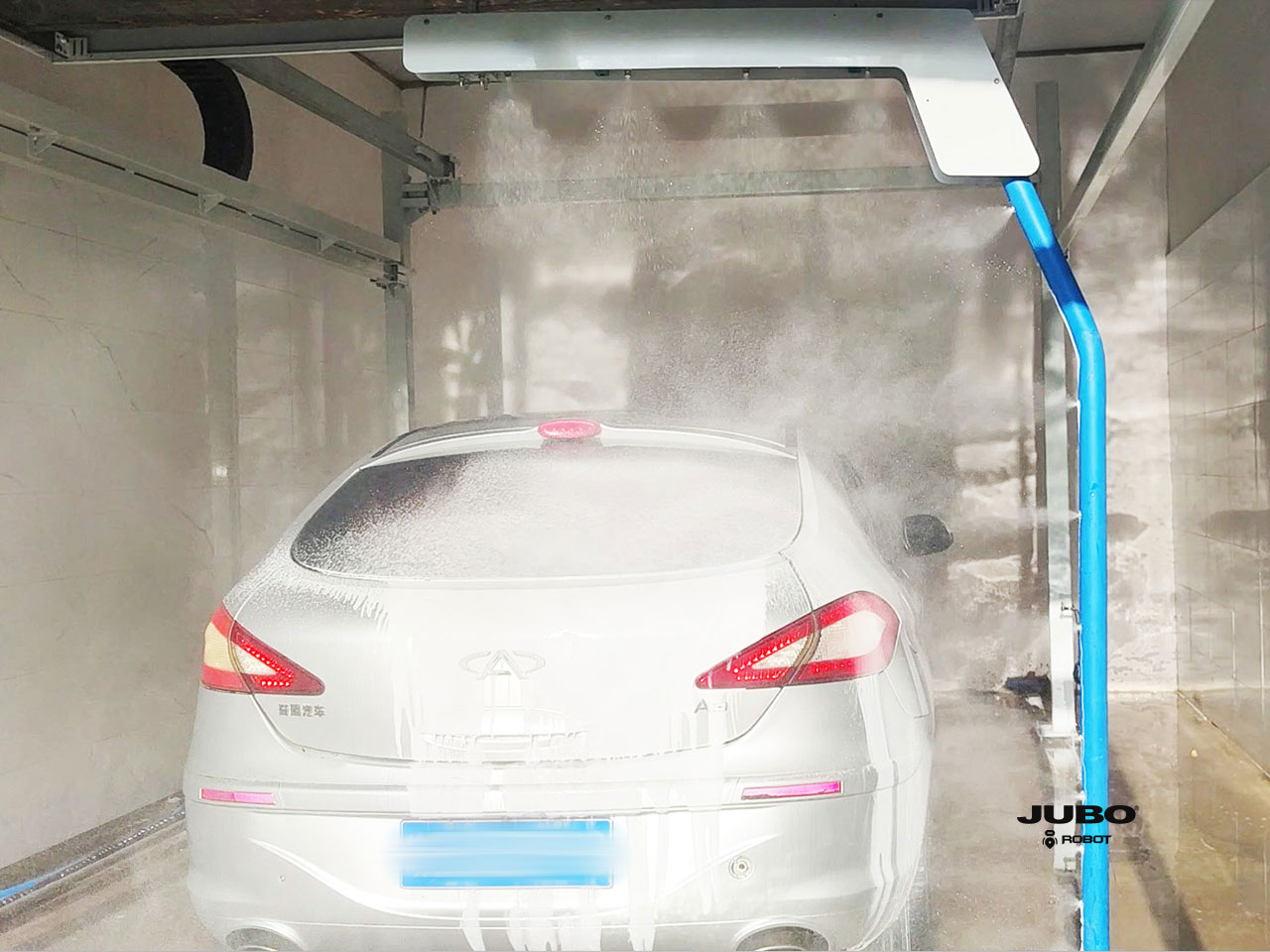

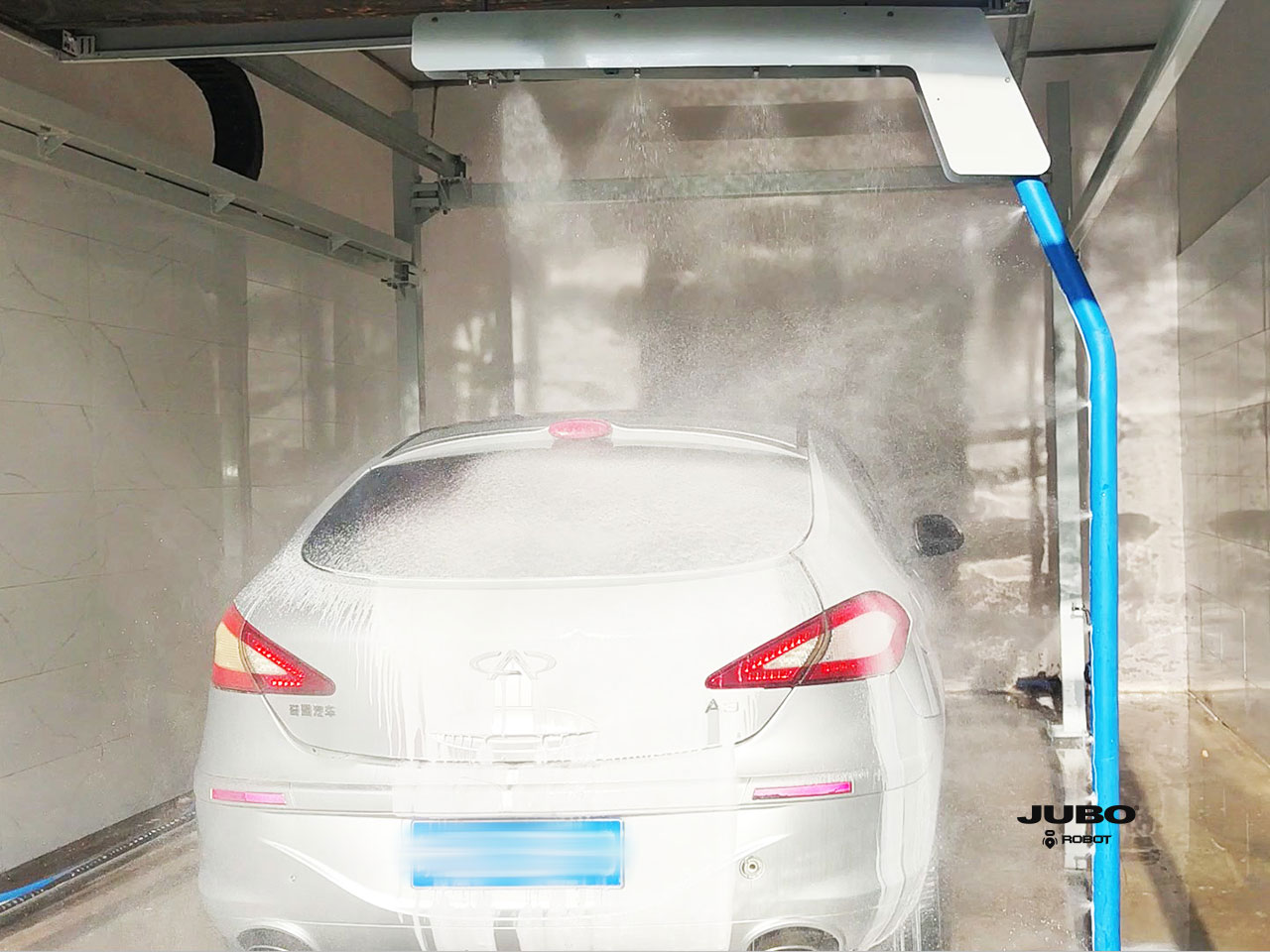

- Pre-soak A for alkaline now is standard, Pre-soak B for acid as an option

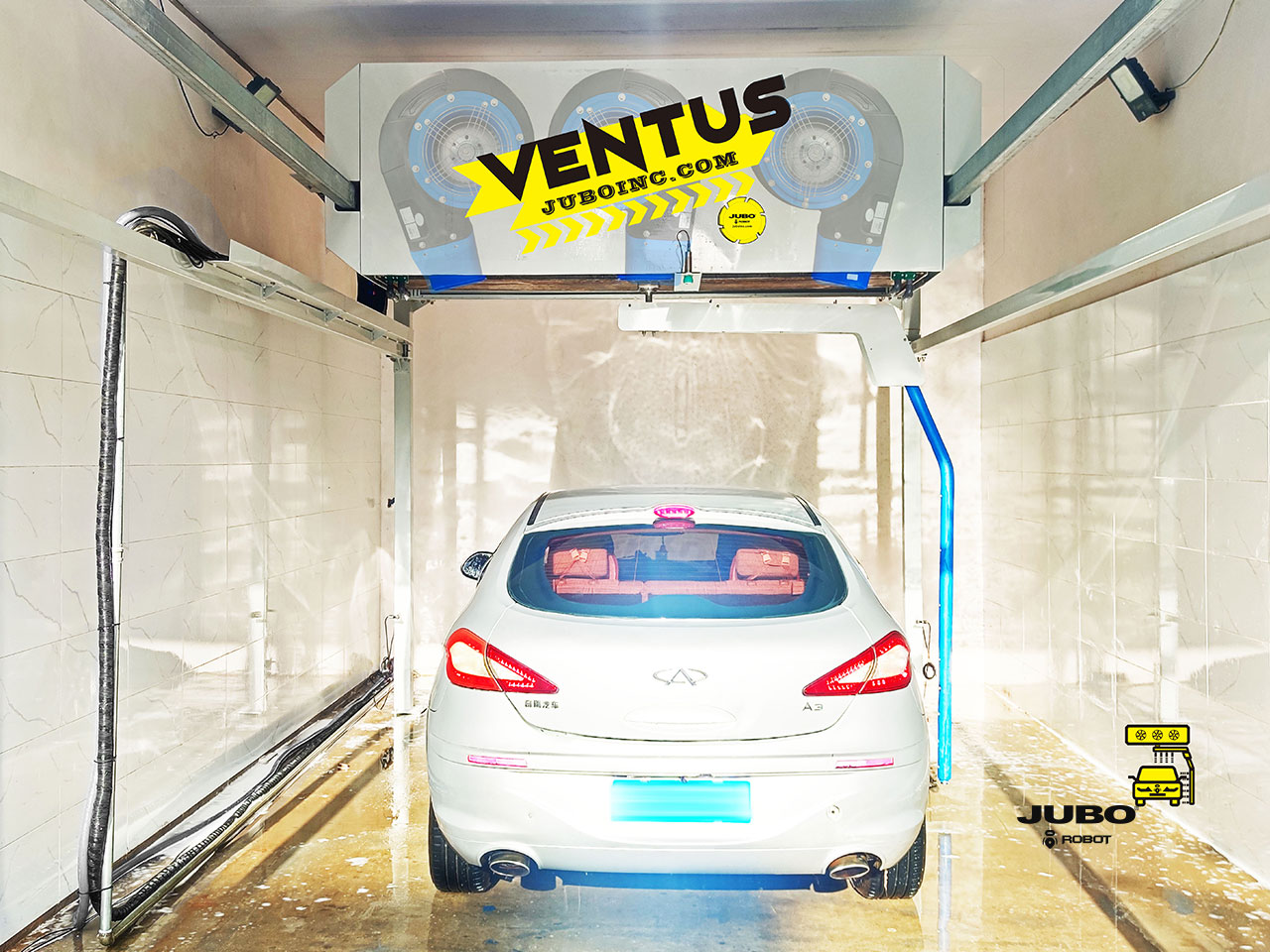

- Boost dryers x 3pcs embeded in the bridge box

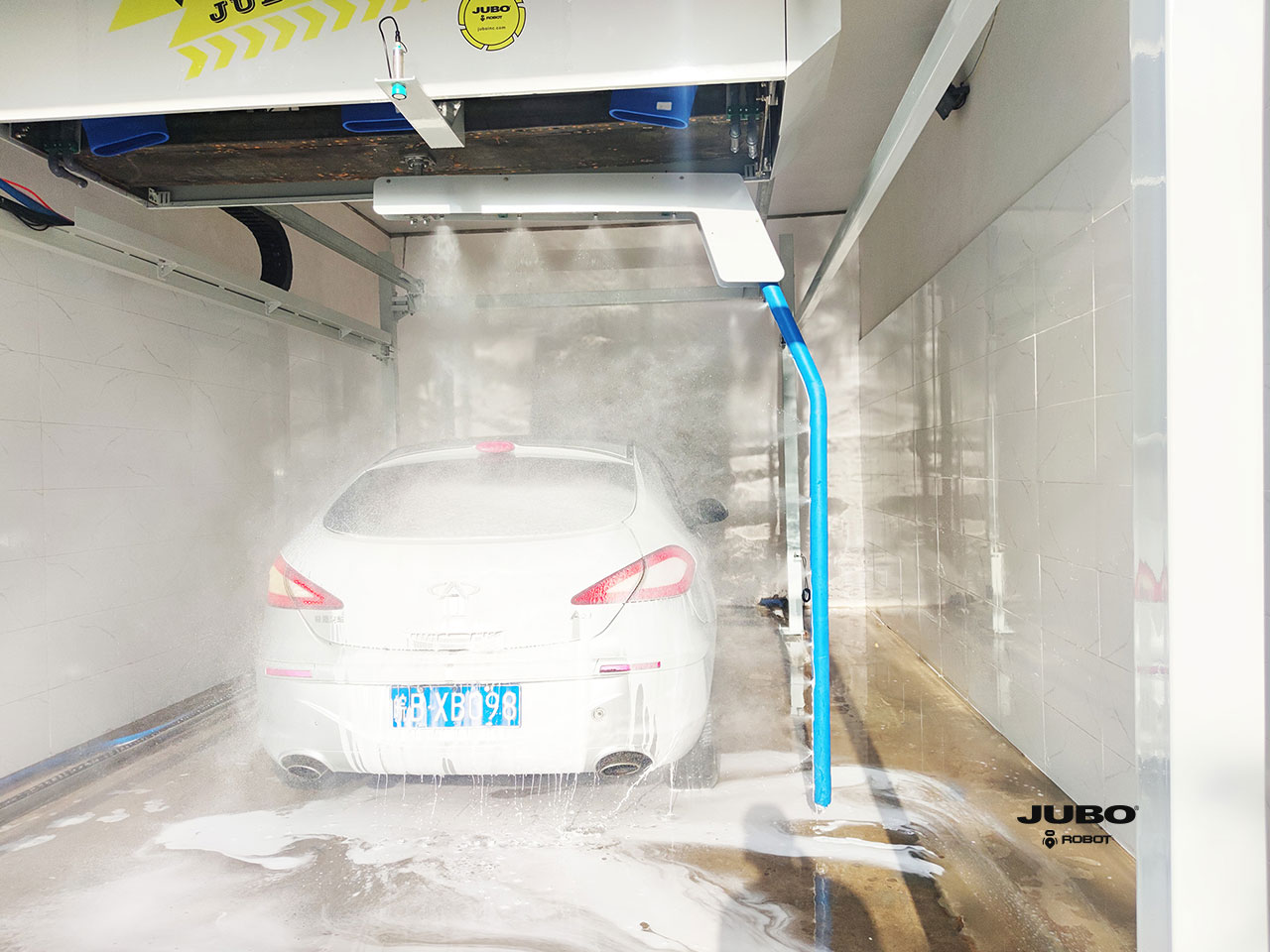

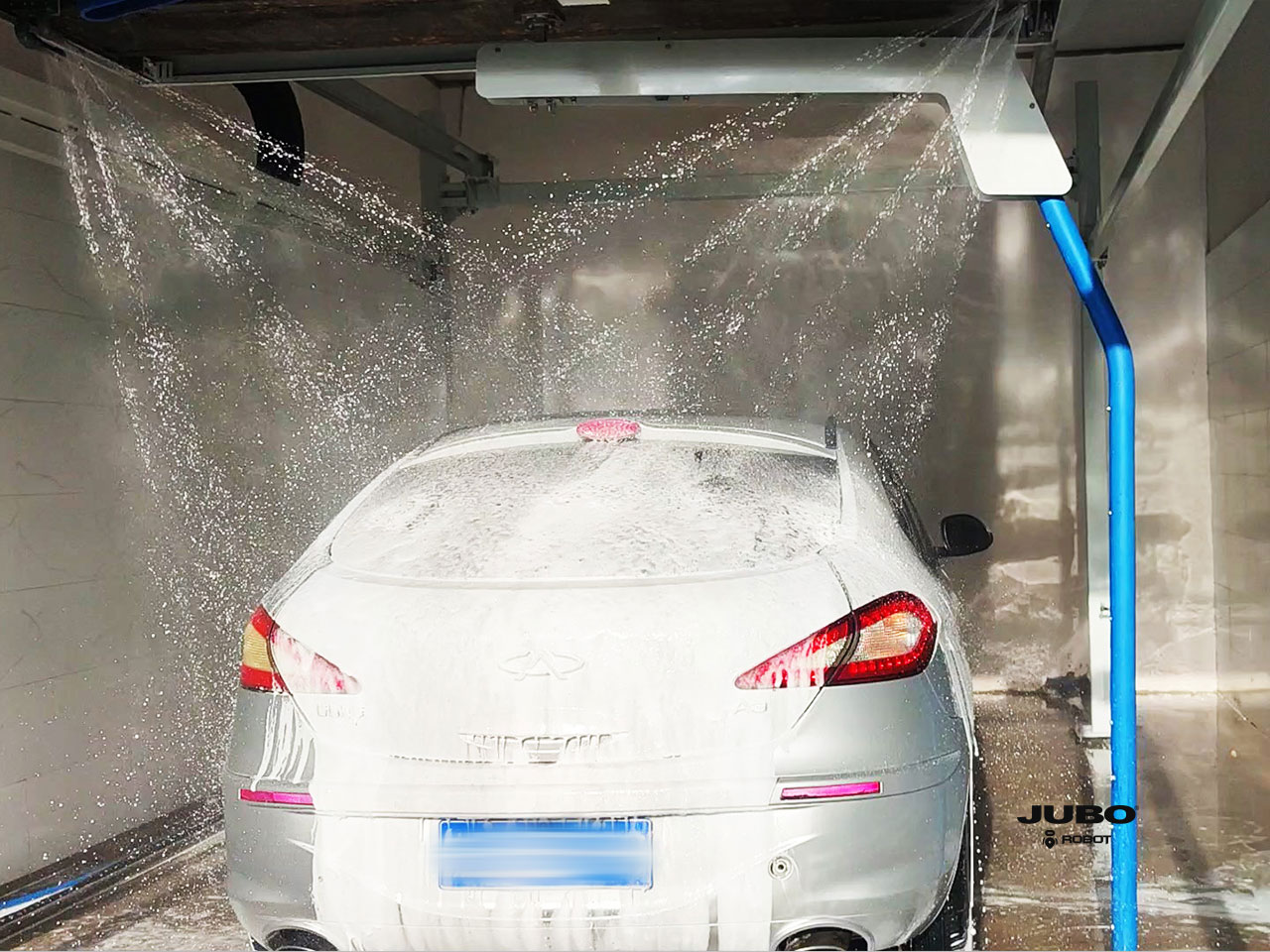

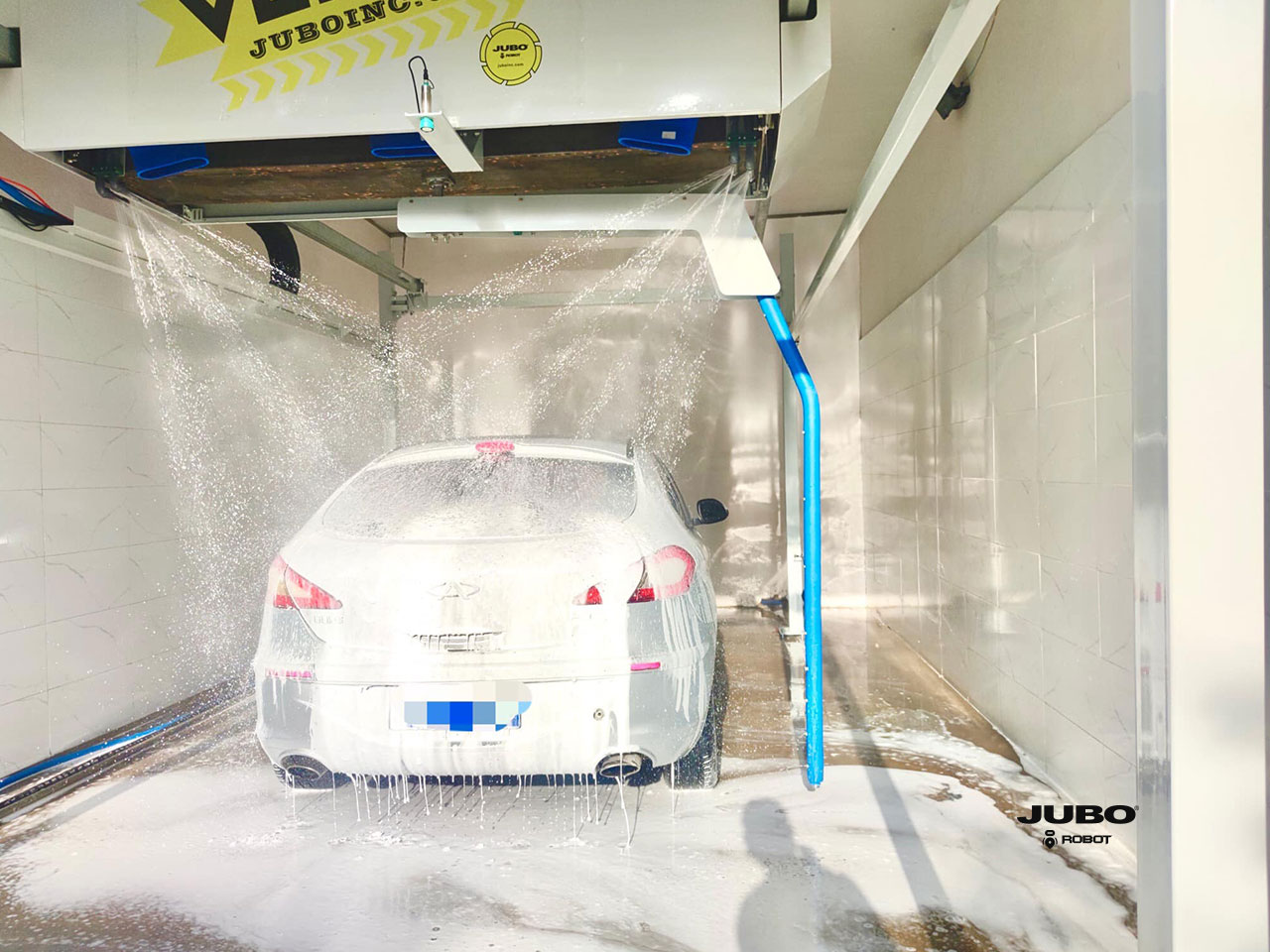

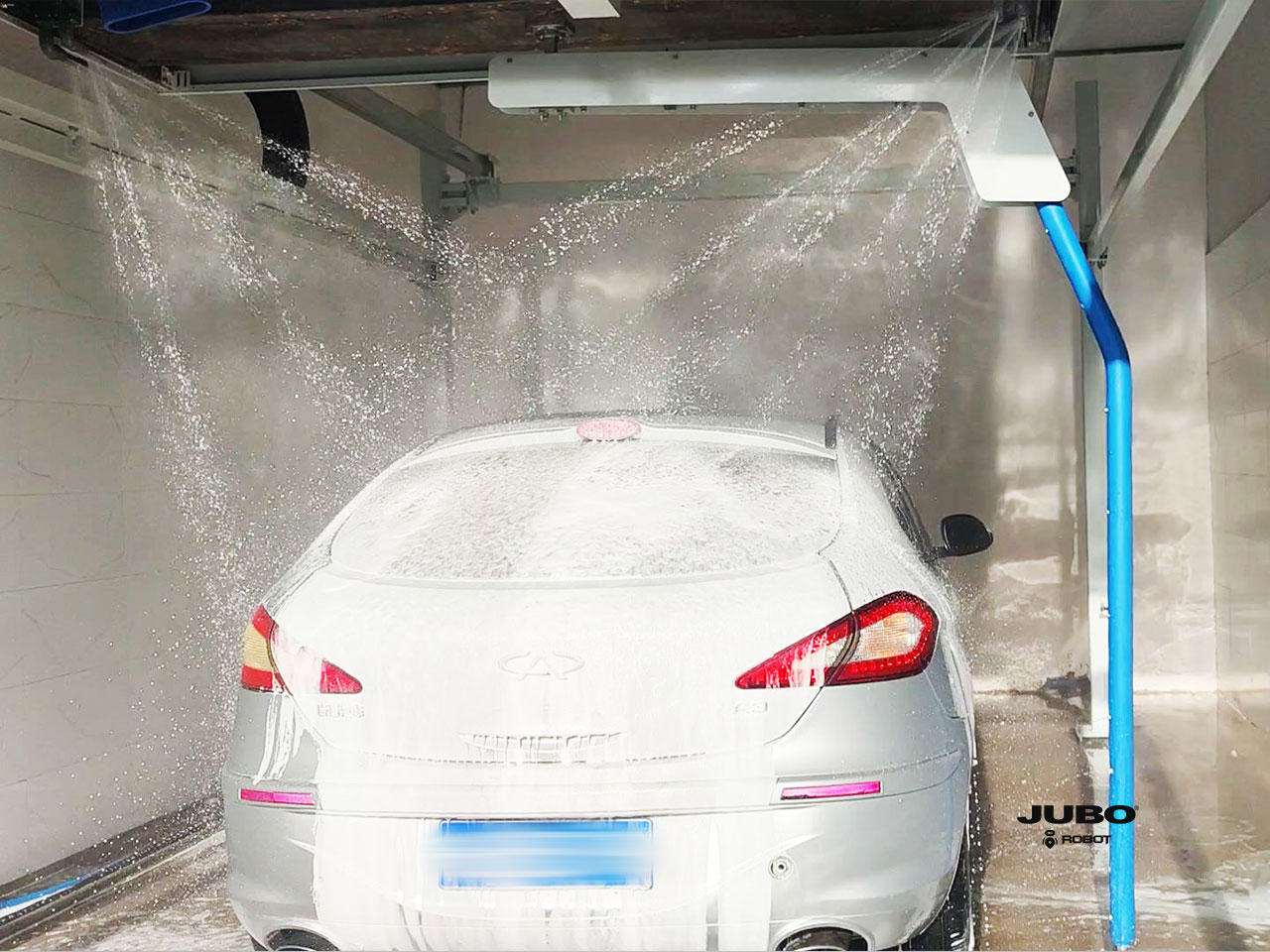

- One-color foam is now standard , tri-color foam as an option
- Rainx now is standard
- Foamfall as an option
- Led screen indicator as an option
- German Pepperl+Fuchs Ultrasond detection system
- Failure alarm
- Wash counter
- Dual mode wash system
- Anti-corrosive Hot-dipped galvanized steel & Stainless steel material
- Smart 360 Technology (with: Smart Networking, Smart Dwell)
- Automatic Obstacle Guidance
- Pump Station
- Smart Arch Control, Smart Drying System and Smart Cleaning System
- Electrical Control Panels
- Anti-corrosive metering pump
- Ultimate Cover Package
- Advanced Arch Package
- Electric High Pressure Gatling Spray Nozzles
- Free Standing Frame
- Wash Activation Entry Terminals
- High Pressure Rinse Arch
| Electricity and power supply | 3PHASE 380V 50HZ 20kW |
|---|---|
| Electrical system | French Schneider |
| Car position detection tech | German Pepperl+Fuchs Ultrasond |
| Min installation dimensions | L6400 x W3300 x H 3300mm |
| Max washing vehicle dimensions | L5500 x W2600 x H2100mm |
| Material | Hot dipped galvanized steel, Stainless steel 304 |

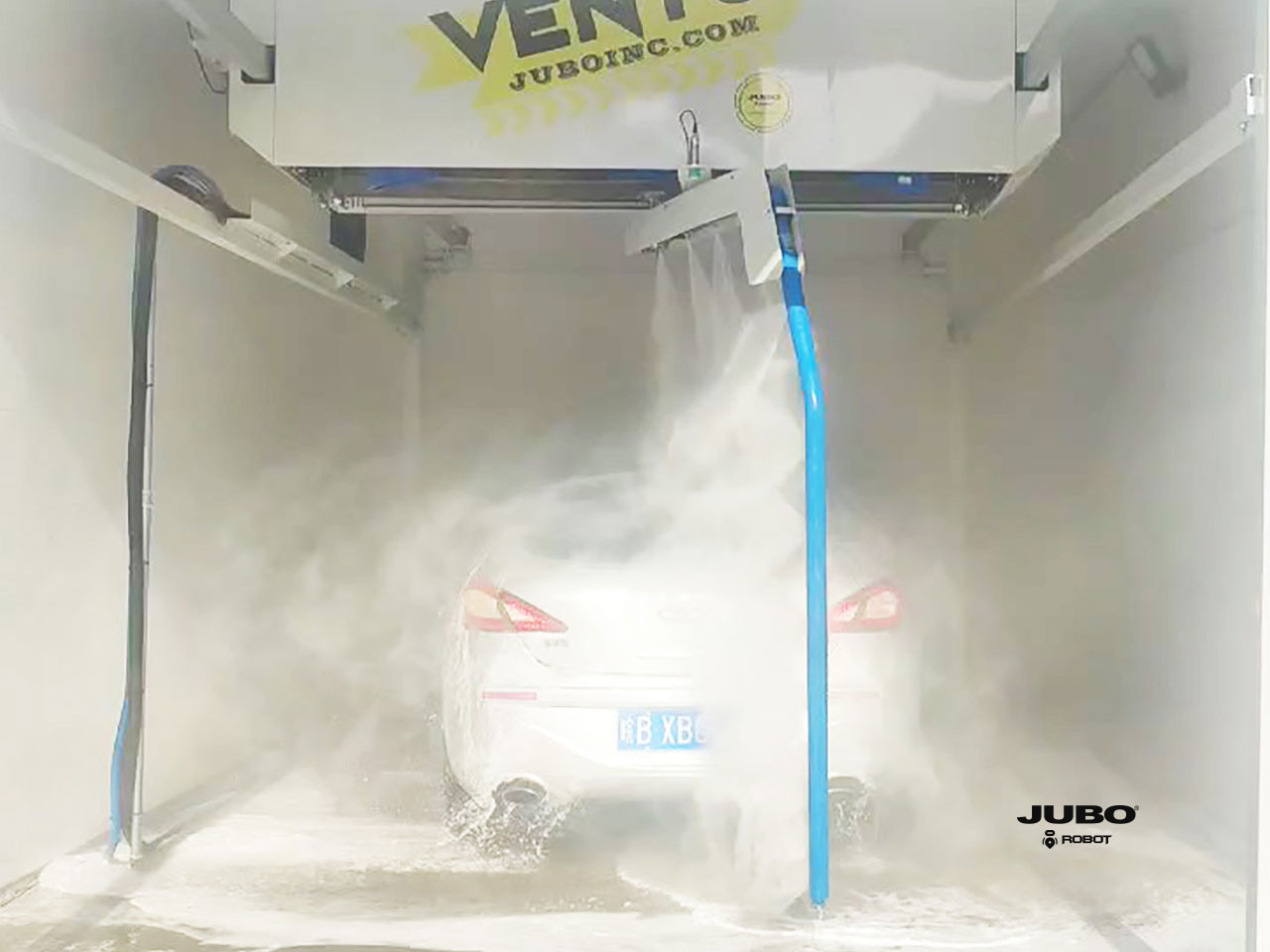

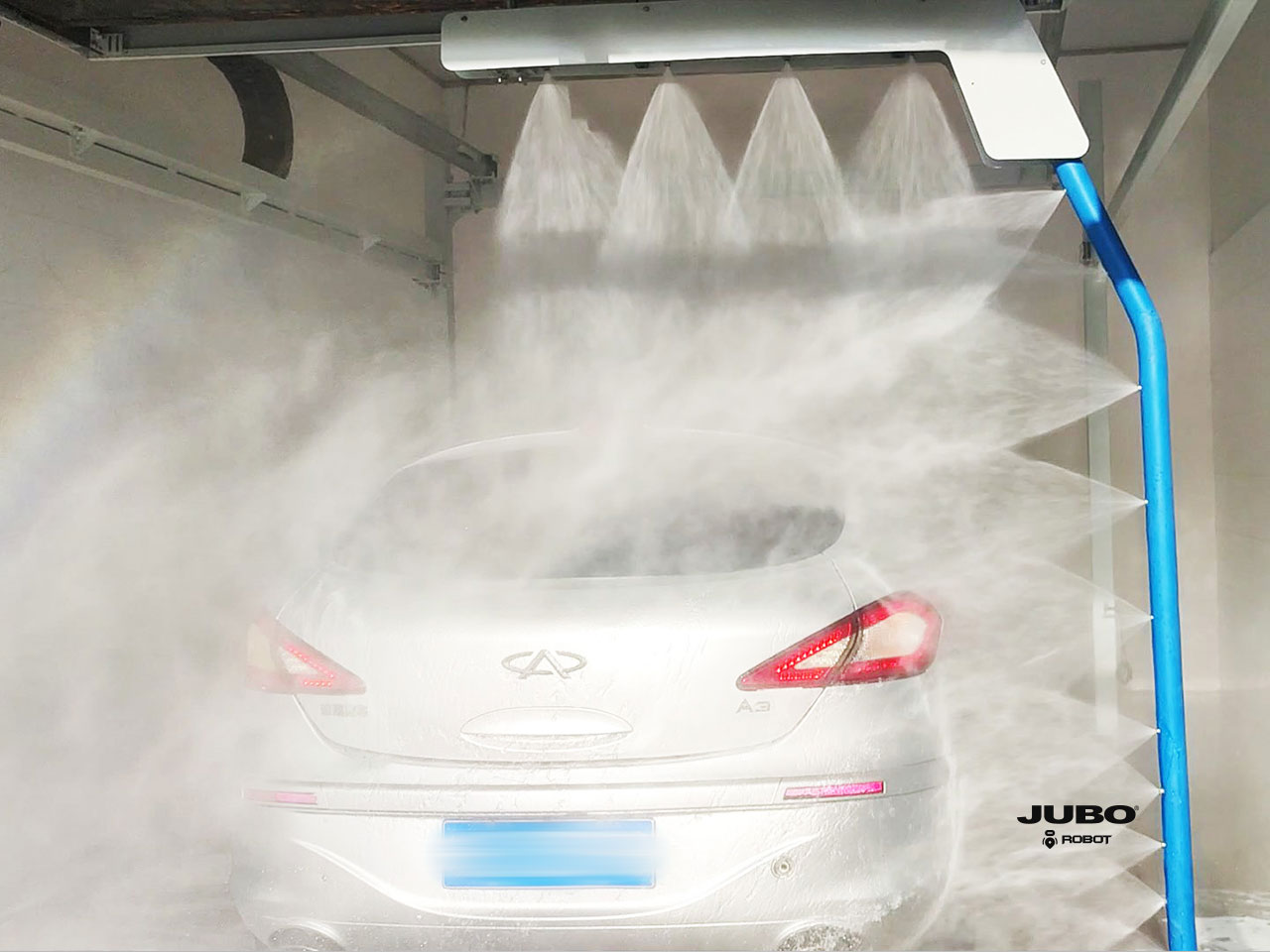

| Water pressure | 60~80Bar |
| Dryer | 5.5kW x 3pcs |
| Drive system | Roller |
| Wash speed | 2-5minutes/car, adjustable |

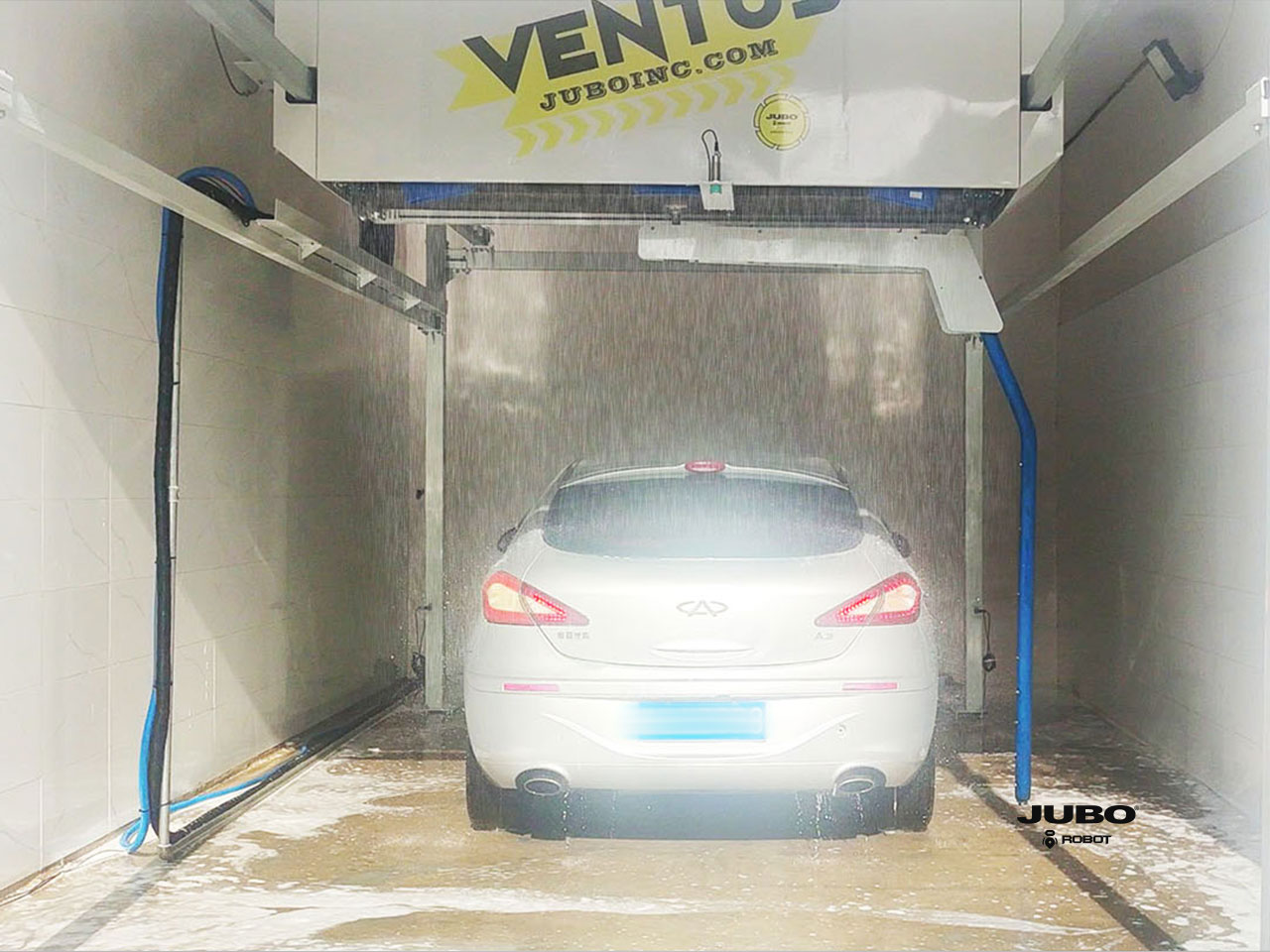

| Rainx | Wax rain |
| Chemical consumption | 0.02~0.08L/car, adjustable |
| Wash cycle | Chassis wash Presoak A HP water Presoak B(optional) HP water Foamfall(optional) HP water one/tri colored foam() HP water RainX Dryer |

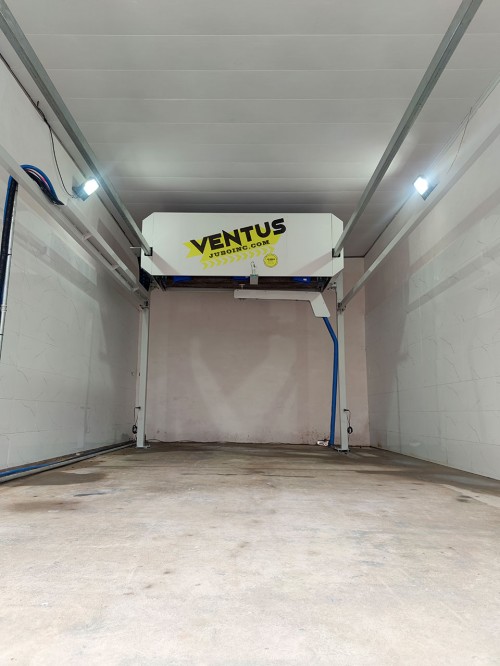

Deployment

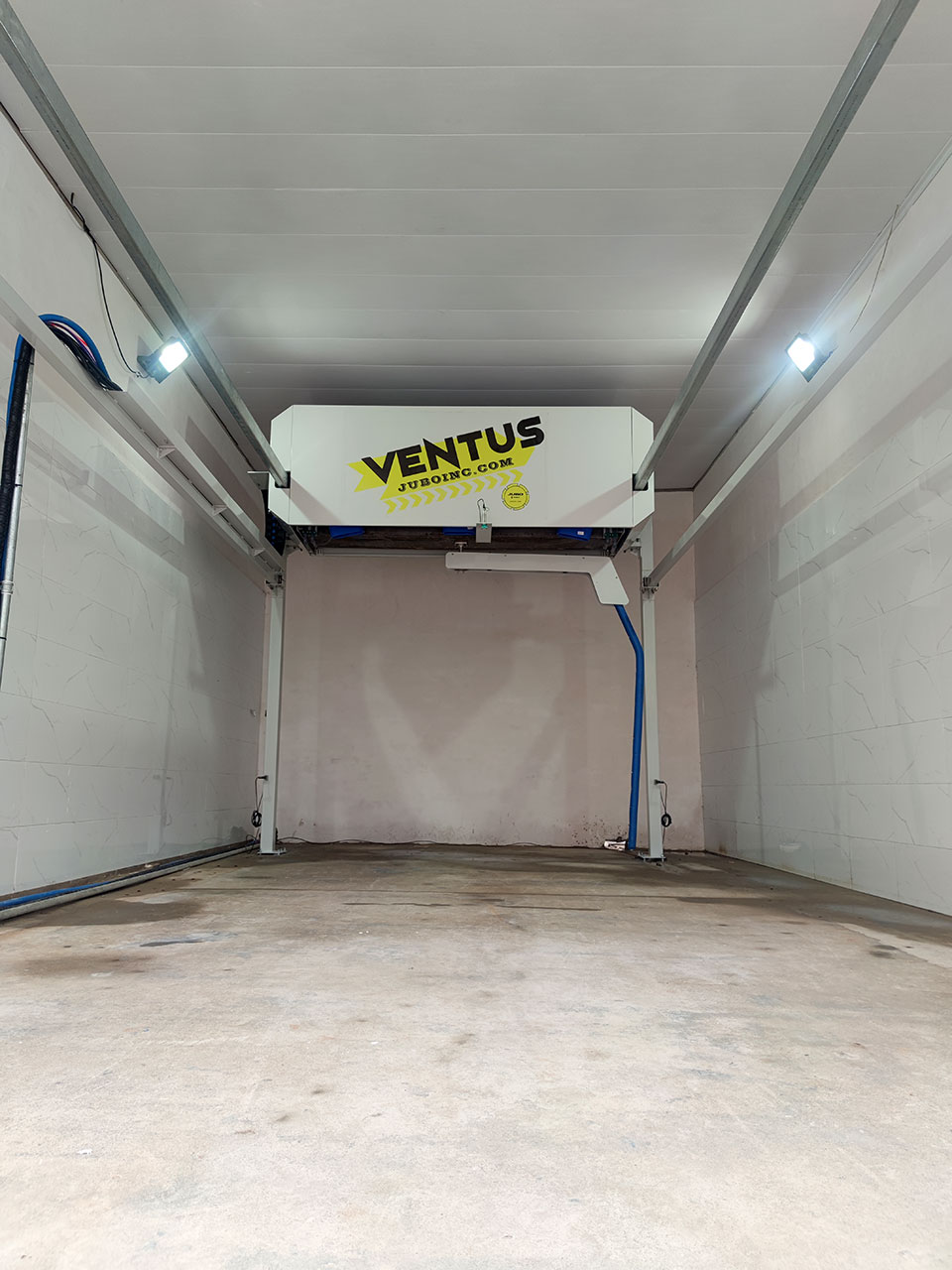

Deployed for outdoor wash stations or single in-bay wash store, several self-serve wash bays and single automatic touchless car wash system will be a good idea to work together. Steel frame or wall mounted both works.
Application
- Mini
- Sedan
- SUV
- MPV
- Pickup-Truck
Differences among touchless car wash models
"●" include "○"optional "/“ none
| Items | jubo360 | ventus | tornado | parvus | micro |
|---|---|---|---|---|---|
| Chassis jet | ● | ● | ● | ● | ● |
| Side combo jet | ● | ● | ● | ● | ● |
| Presoak A | ● | ● | ● | ● | ● |
| Presoak B | ○ | ○ | ○ | ○ | ○ |
| Tri-color foam | ● | ○ | ○ | ○ | ○ |
| One-color foam | ○ | ● | ● | ○ | ○ |
| Foamfall | ○ | ○ | ○ | ○ | ○ |
| HP water | ● | ● | ● | ● | ● |
| RainX | ● | ● | ● | ○ | ○ |
| Dryer | ● | ● | ● | ○ | ○ |
| Gatling jet | ○ | ○ | ○ | ○ | ○ |
| Led screen | ● | ○ | ○ | ○ | ○ |
| Spot Free | ○ | ○ | ○ | ○ | ○ |
| Osmossis | ○ | ○ | ○ | ○ | ○ |
| WheelMaster | ○ | ○ | ○ | ○ | ○ |
| 360Arm protection | ● | ● | ● | ● | ● |
| Car length detect | ● | ● | ● | ● | ● |
| Car width detect | ● | / | / | / | / |
| Failure alarm | ● | ● | ● | ● | ● |
| E-Chain | ● | / | / | / | ● |
| Terminal control | ● | ● | ● | ● | ● |
| Touchscreen | ● | ○ | ○ | ○ | ○ |
| Frame | ● | ● | ● | ● | ● |
