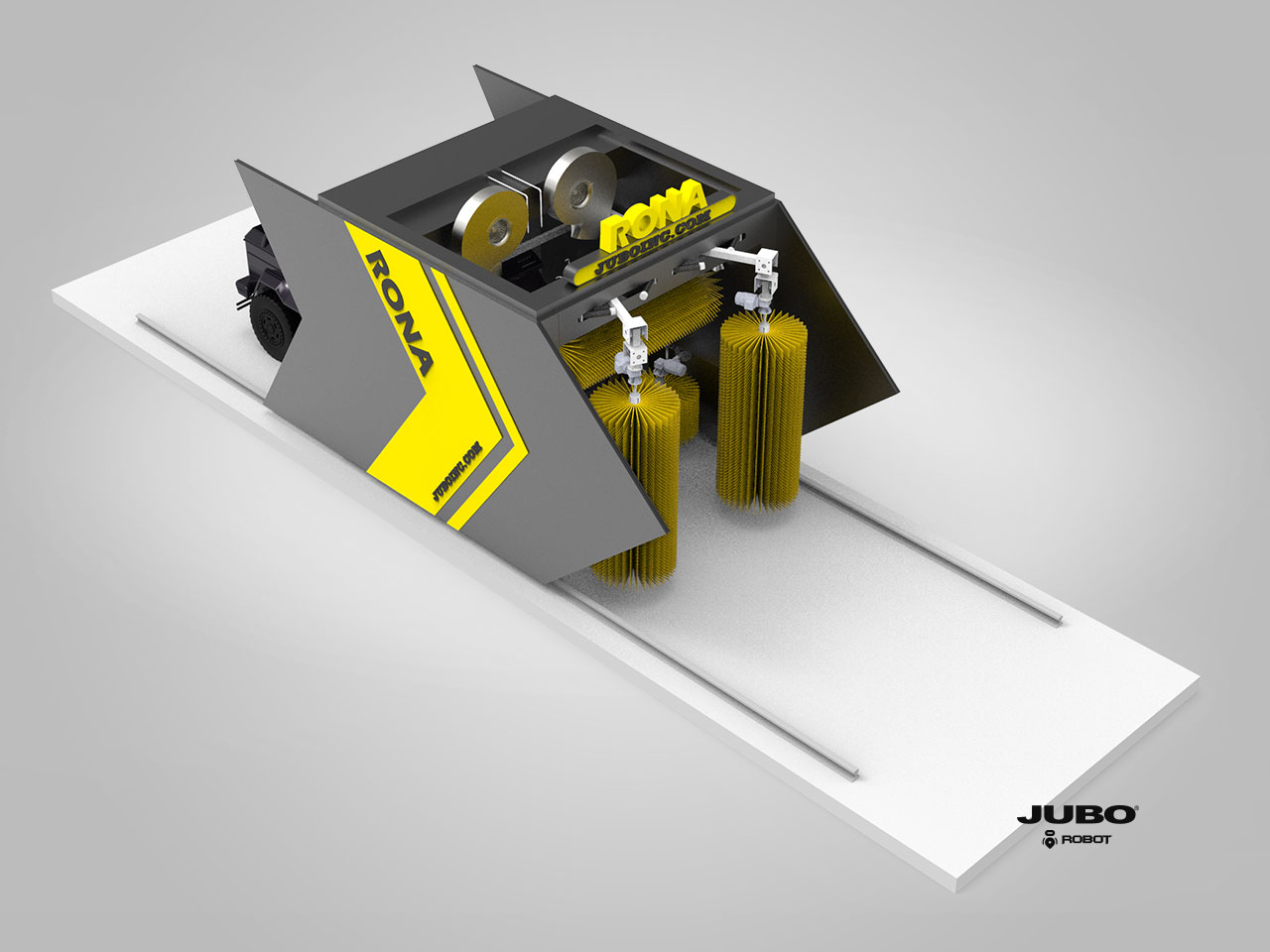

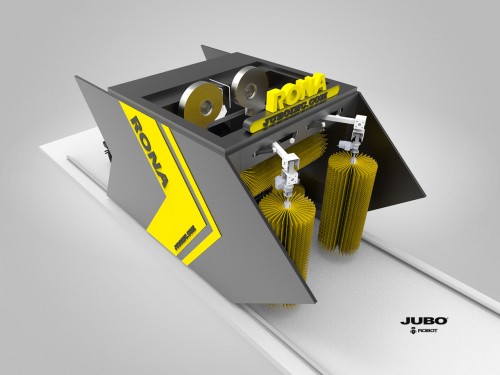

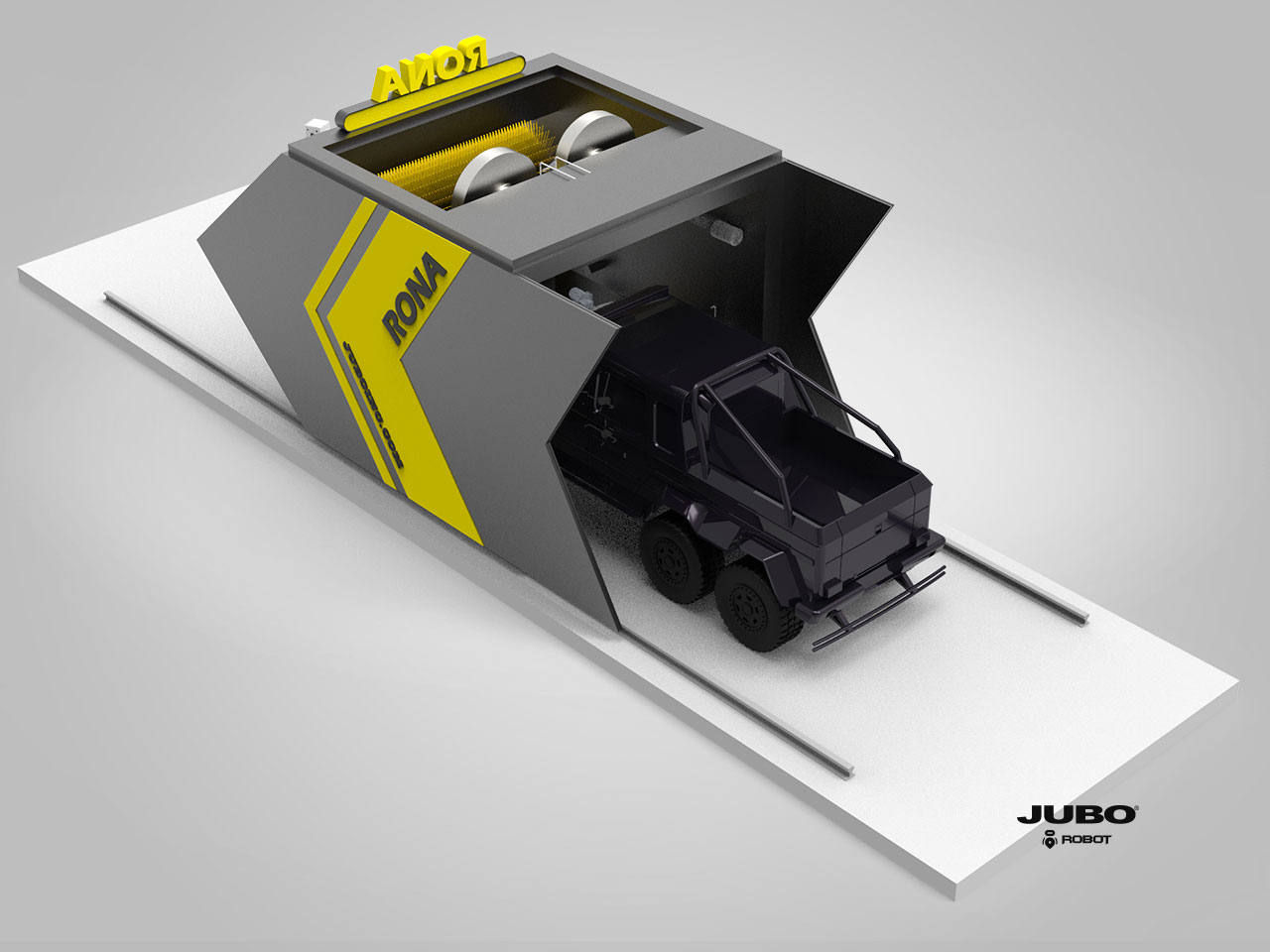

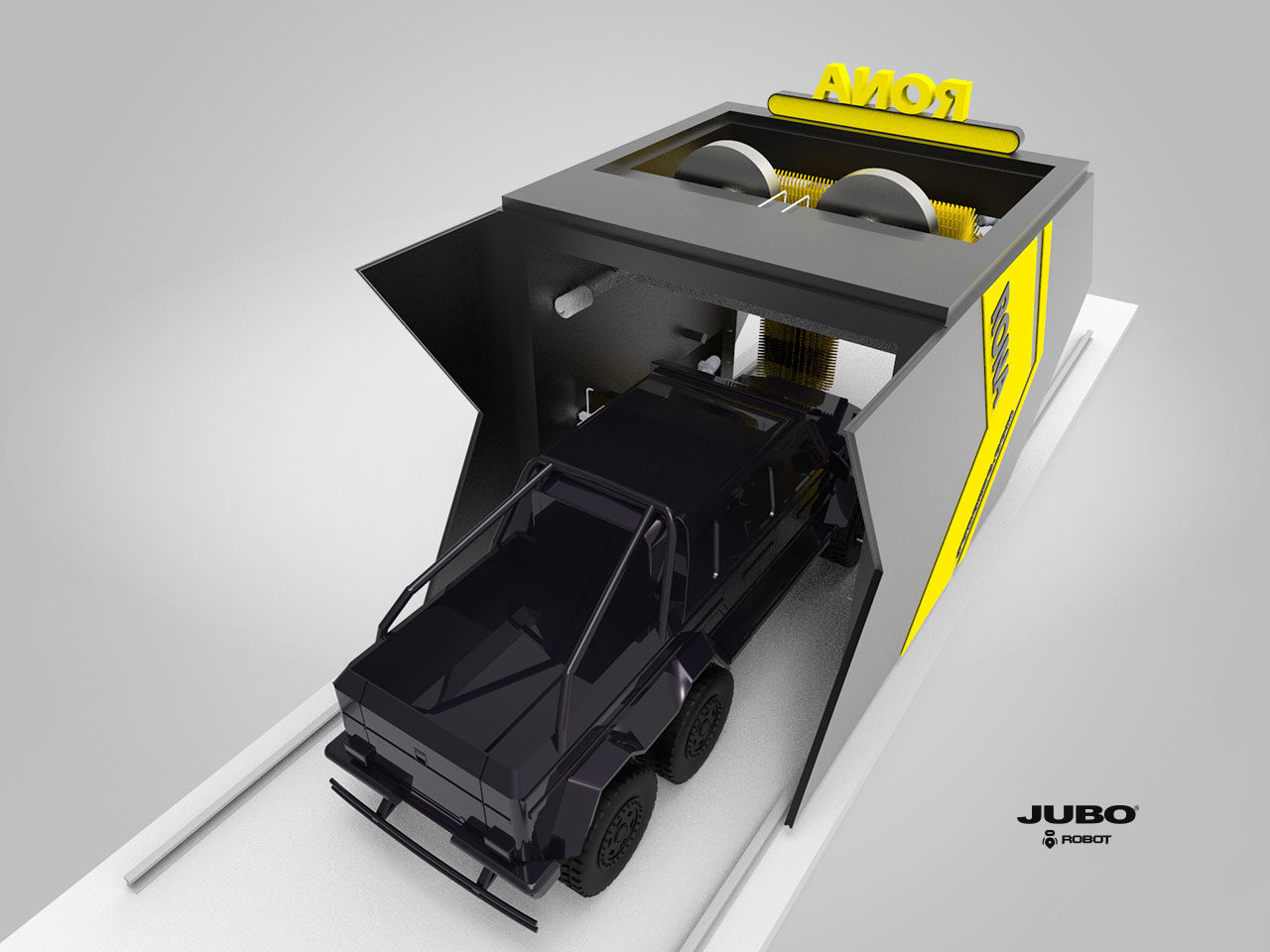

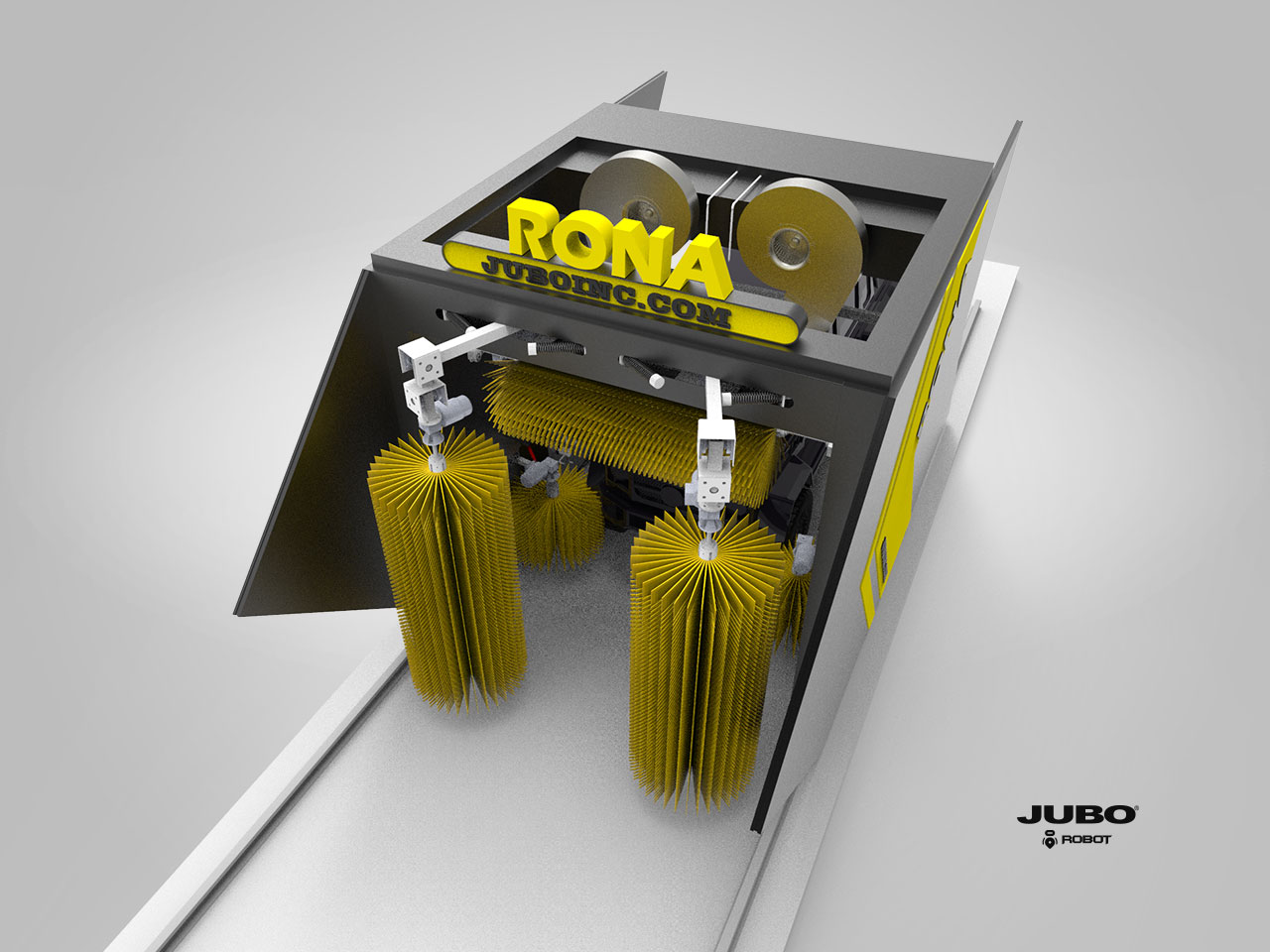

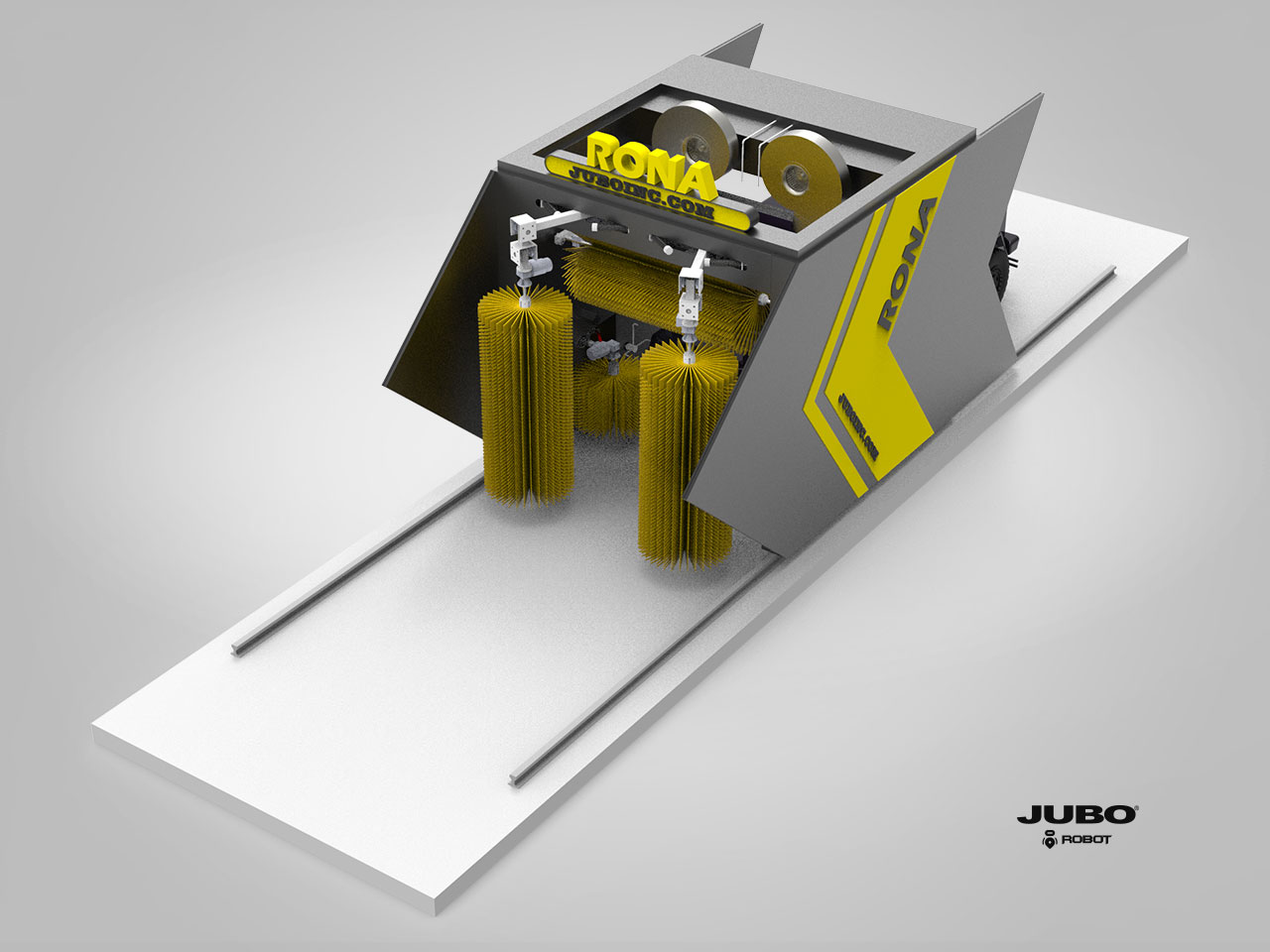

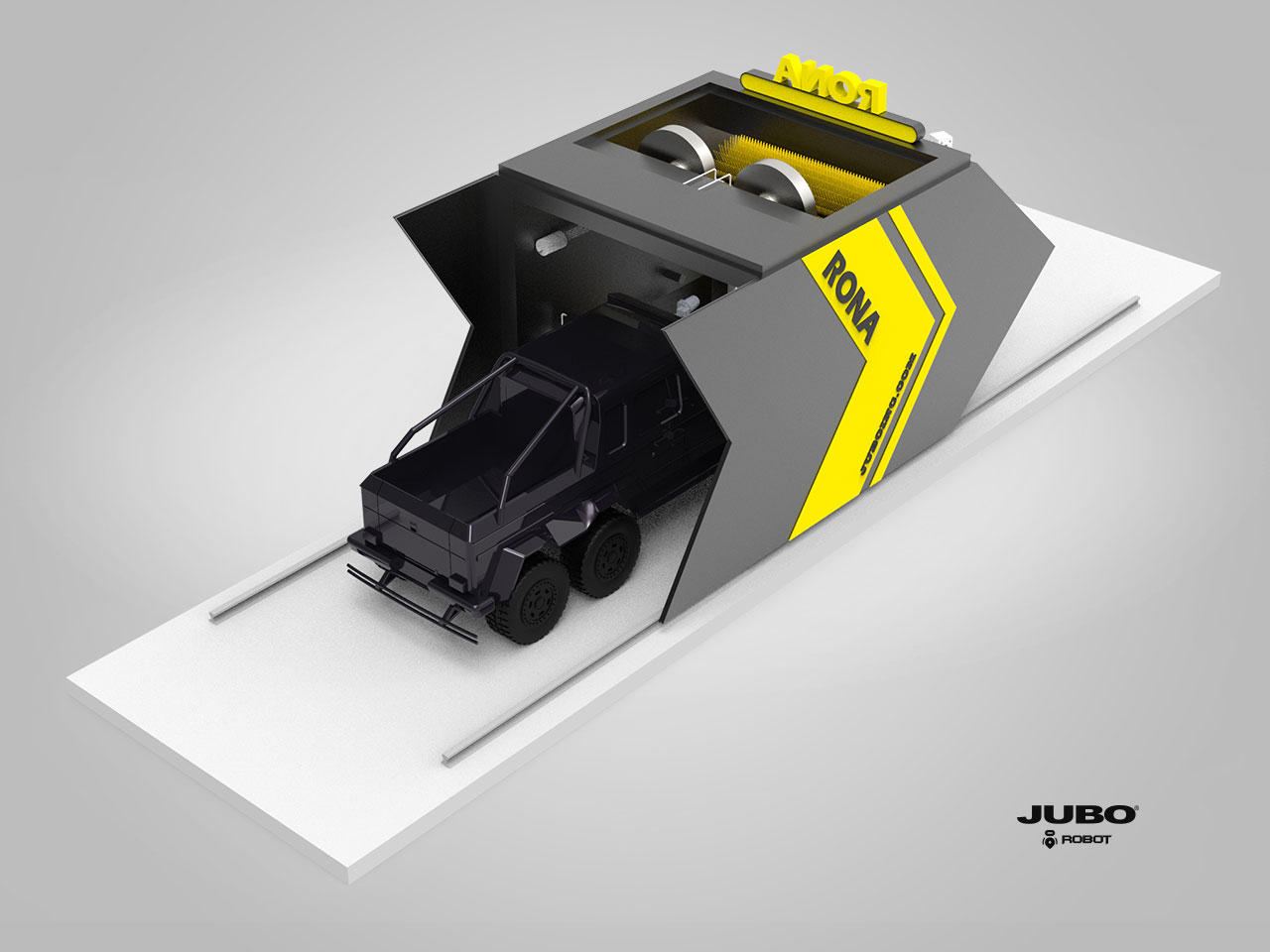

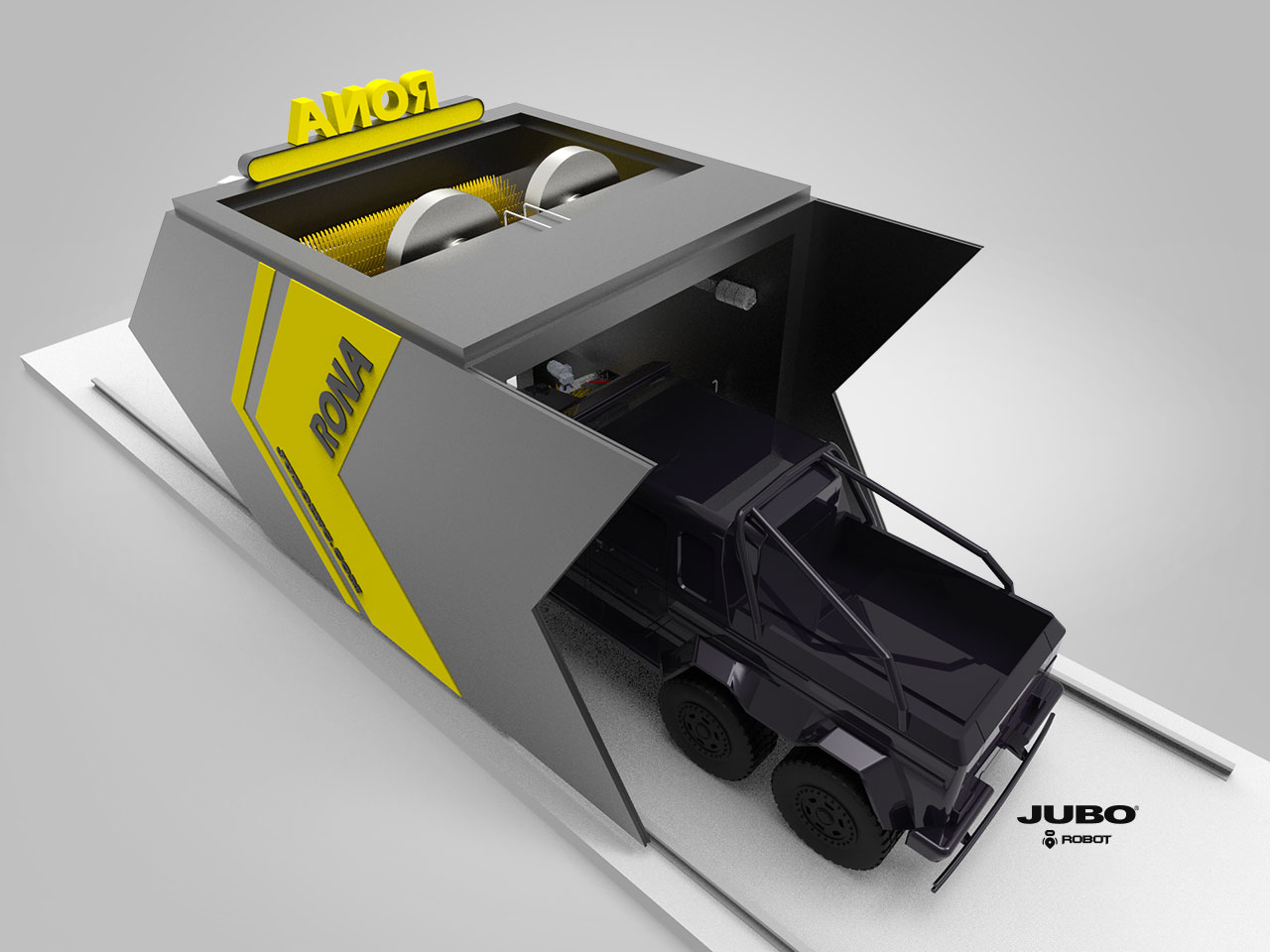

RONA

WASH GANTRY, ROLLOVER CAR WASH SYSTEM - ROSE

Model: RONA, Type: Rollover automatic friction car wash

Description

Unattended grade Fast, quiet, safe and reliable wash gantry - rollover car wash - JUBO

JUBO wash gantry RONA with standard 5 brushes spinning and cleaning, proudly to announce special SOFTTOUCH and CLEANTOUCH and ONE-CHEM technologies,the rollover car wash machine technical level get another high end.

Thanks to the JUBO cut-edge innovations on the brushes material, now the improved cleanness grade cater for high-level requirements from the market.

Thanks to the JUBO chemical department, the ON-CHEM shampoo formular make the car wash shorter time and shinning result, painting protection is in high-light catching eyes.

Unattended technology occupied highest speed 3 minute to wash a car, power0.1KWH and 60L water consumed.

Spinning nozzles, water-proof motors, centrifugal pumps, 7.5kw strong blowers equipped.

RONA WASH GANTRY, Automatic car wash system, 5 brushes friction vehicle wash system, with splendid turnover, Super-Fast, Excellent clean result features

Car wash gantry RONA JUBO

Features

  1. SOFTTOUCH for top and side brushes by elbow stretching technology
  2. CLEANTOUCH, A fine soft paint-protective brush gently spinning amid high-level cleanness.
  3. ONE-CHEM, A high-pressure shampoo wax applied from the HP nozzles, high pressure
  4.   Dryer, 7.5kw powerful dryers supported with strong turbo impeller to
    dry the car without fabric touch on the paint.

Functions

  1. High pressure Top/side/wheel blaster
  2. Wheel & Rim brush and water flushing
  3. Vehicle side profiling & brushing
  4. Top area brush profiling & brushing
  5. Side low area profiling & brushing
  6. Voice indicator
  7. Fixed top dryers
  8. Rolling speed customizable design
  9. Soap & Wax applicator
  10. Entry control panel support with touchscreen

Specifications

Electricity and power supply3PHASE 380V 50HZ 25kW
Electrical systemFrench Schneider
Min installation dimensionsL12000 x W3800 x H3500mm
Gantry dimentionsL3550xW3800xH3500mm
Max washing vehicle dimensionsL6000, x W2600 x H2100mm
MaterialHot dipped galvanized steel, Stainless steel 304
PumpCentrifugal Pump 150L/min 7.5kW = 10HP
Water pressure20~30Bar, 130L/min adjustable
Dryer7.5kw x 2 = 10HP x 2
Control systemDELTA PLC
Wash speed5.5minutes/car
Chemical consumption0.02~0.08L/car, adjustable

Deployment

Deployed for Chain-business Wash Stations, City Center Wash fleet, outdoor wash stations or near to fuel stations, ideal to make coffee and super-market to enhance revenue, several self-serve wash bays and wash gantry systems will be a good idea to work together. Steel rail is included.

Application

  1. Mini
  2. Sedan
  3. SUV
  4. MPV
  5. Pickup-Truck

FAQ

Is there a pre-rinse section?
For the pre rinse step, please kindly take a look at RONA catalog, we name it pre-wash https://drive.google.com/file/d/1O1p9xM5VpnwkGzOMn2huilSB0qxwkvNP/view?usp=sharing

Click to view RONA catalog>>>

Is there a blow dry section?
Yes There are boost dryers 7.5kW x 2pcs which made a powerful wind blade and high quality running 5 years without problem in Malaysia.please kindly take a look at the video https://youtu.be/6EMWnHflqfA
Where’s your lubrication and soap dispensers?
For the chemical, allow us to use "1-chem" technology, it combines shampoo + lubrication + other formulars, with this chemical we can accelerate the speed to wash and with which we can move the gantry only 1 backward + 1 forward = 1 cycle to finish all wash steps.
What are the wash cycle steps?
With the 1-chem tech, the wash cycle can be easiest by 1 forward + 1 back to finish all wash steps, this will extend the motor life and clean each corner of the vehicle.In forward direction, actions prewash > sidewash > topwash > frontwash > backwash > detergent applied.In back direction, action dryer applied. then done! super fast! save energy but create biggest revenue.Before drying, all wash steps done. after drying just kick off for next vehicle.
What the dimensions shoud my land be?
To mount the RONA car wash, a land with dimensios
L12000 x W3800 x H3500mm is necessary, back entry front exit, wash queue made to accelerate the washing task.
What i need to prepare to mount the RONA car wash?
A good location with enough space for car wash business, suggest to prepare a free space for vaccum interior clean.A elec power supply 25kW.Air compressor 5+bar, capacity 80+L, air flow rate 500L/minA water tank 2000+L
Can i install the RONA myself?
Sure, JUBO offers manuals and videos, the advantage to install RONA by clients always benefit for the owners' cost and knowlege on mechanic structure.

Catalog

  • RONA CAR WASH GANTRY CATALOG
  • JUBO CAR WASH CATALOG
