ROPRE

Wash Bus&Truck System - ROPRE

Model: ropre, Type: Tunnel automatic touchless express

DRIVE-THROUGH VEHICLE WASH SYSTEMS

Commercial Vans,Truck, Bus, Gabage truck Wash system made by JUBO China
Gantry type, Touchless concept

From pre-wash to rinse, our high-powered, high-pressure automatic truck washing systems offer heavy-duty cleaning power with the quickest wash cycles on the market.

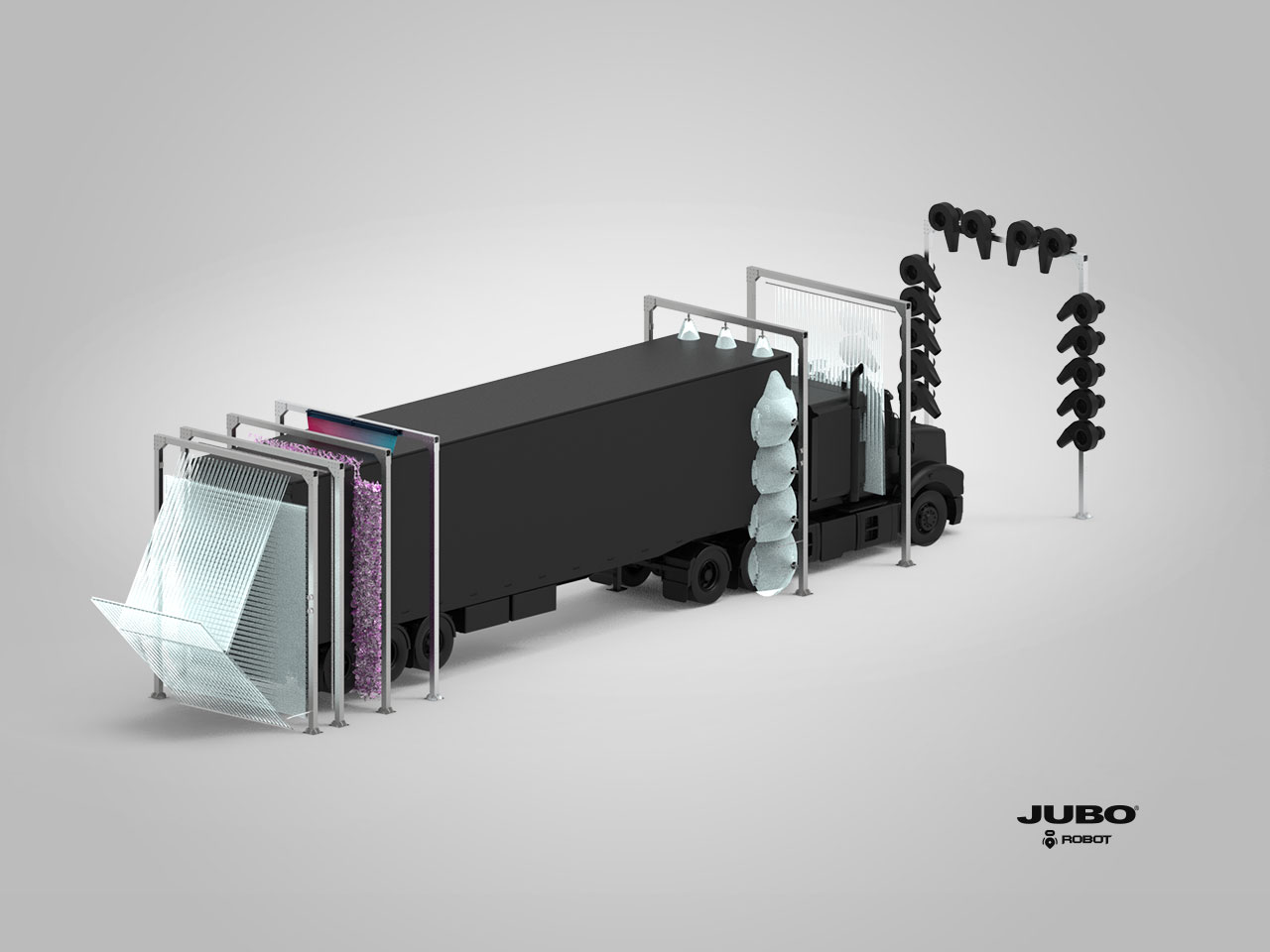

Truck wash machine with pre-wash pre-soak chassis-wash rinse dryers spinning HP nozzles ROPRE JUBO
HP spinning nozzles washing on Bus & Truck wash equpiment ROPRE JUBO

Technology

JUBO ROPRE comes with the stable technologies in car wash industry, with #touchless #presoak #hpSpinner #rainwax #chassiswash, Optional technologies of #bugprep #lavafoam #multifoam #dryer etc. new techs.

ROPRE settled as top-level vehicle wash system, suitable for washing truck, fleet, trailer, military vehicles, odd shaped vehicles, vans, sedan, garbage truck, tank truck, oil truck, tractor trailer cabs, tractor trailers, sprinter Vans, plumbing, HVAC, ladder trucks, tow trucks, ambulance, pumper truck, shuttle Bus, coach bus, school bus, bus, mini-bus, transit.

HP rotating pressure wash on truck wash ROPRE JUBO

Robotic

ROPRE is a robotic automatic car wash machine, operating with computerized system, the washing task will be accomplished by a robot without human efforts, each motion calculated precisely by system, each distance detected by sensor, washing quantity recorded in the report, human hands liberated.

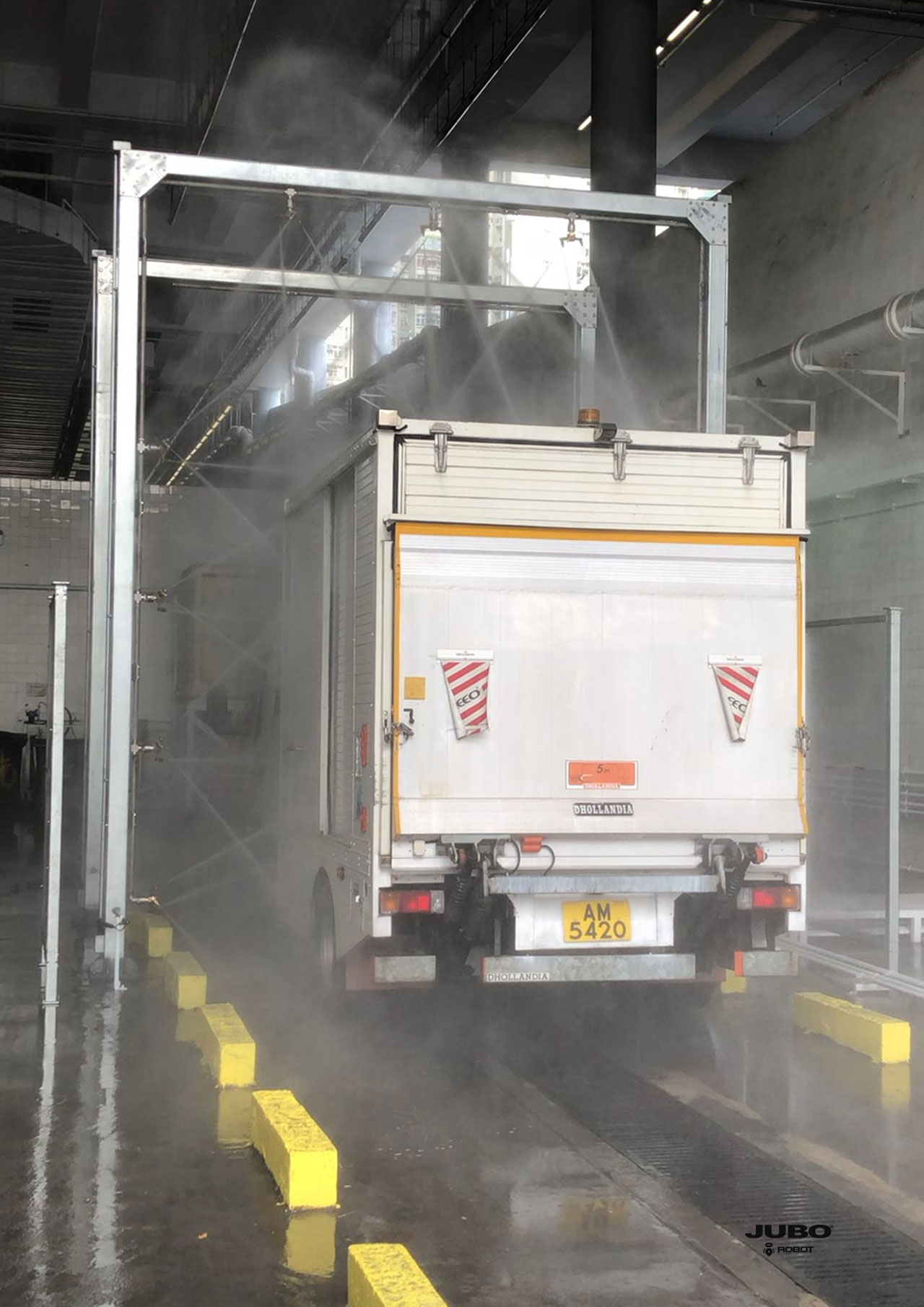

High pressure rinse on automatic truck wash system ROPRE JUBO

Integration

JUBO ROPRE car wash system integrate functions which are working together with chassis(underbody) wash unit, wheel wash unit, bug prep, pre-soak, lava-foam, multi-foam,HP water, RainWax, dryer, spotless. ROPRE also combine the separated structural components in the bridge such as energy system, peumatic system, sensors system, chemical dosing system, illumination system, control system etc.

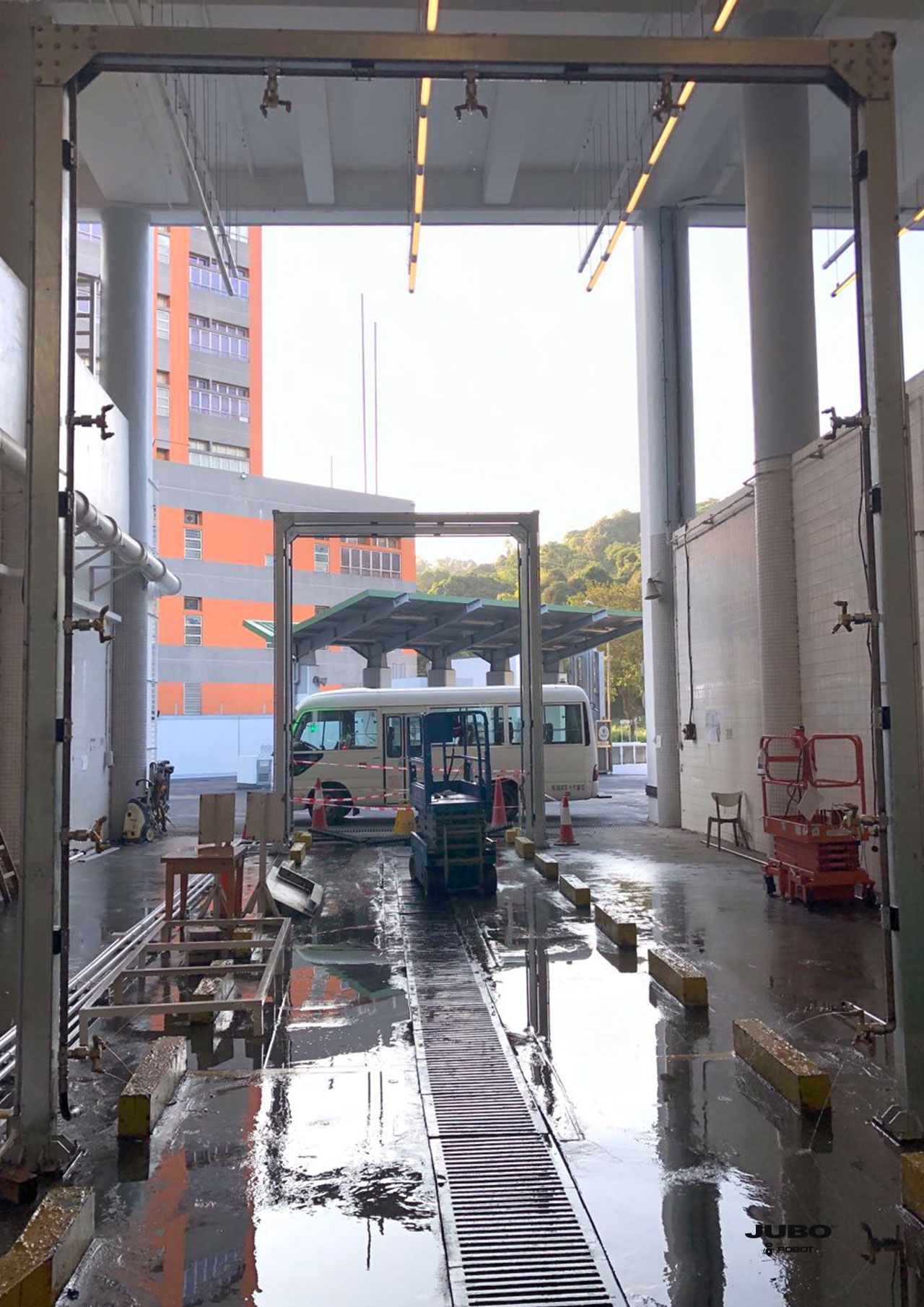

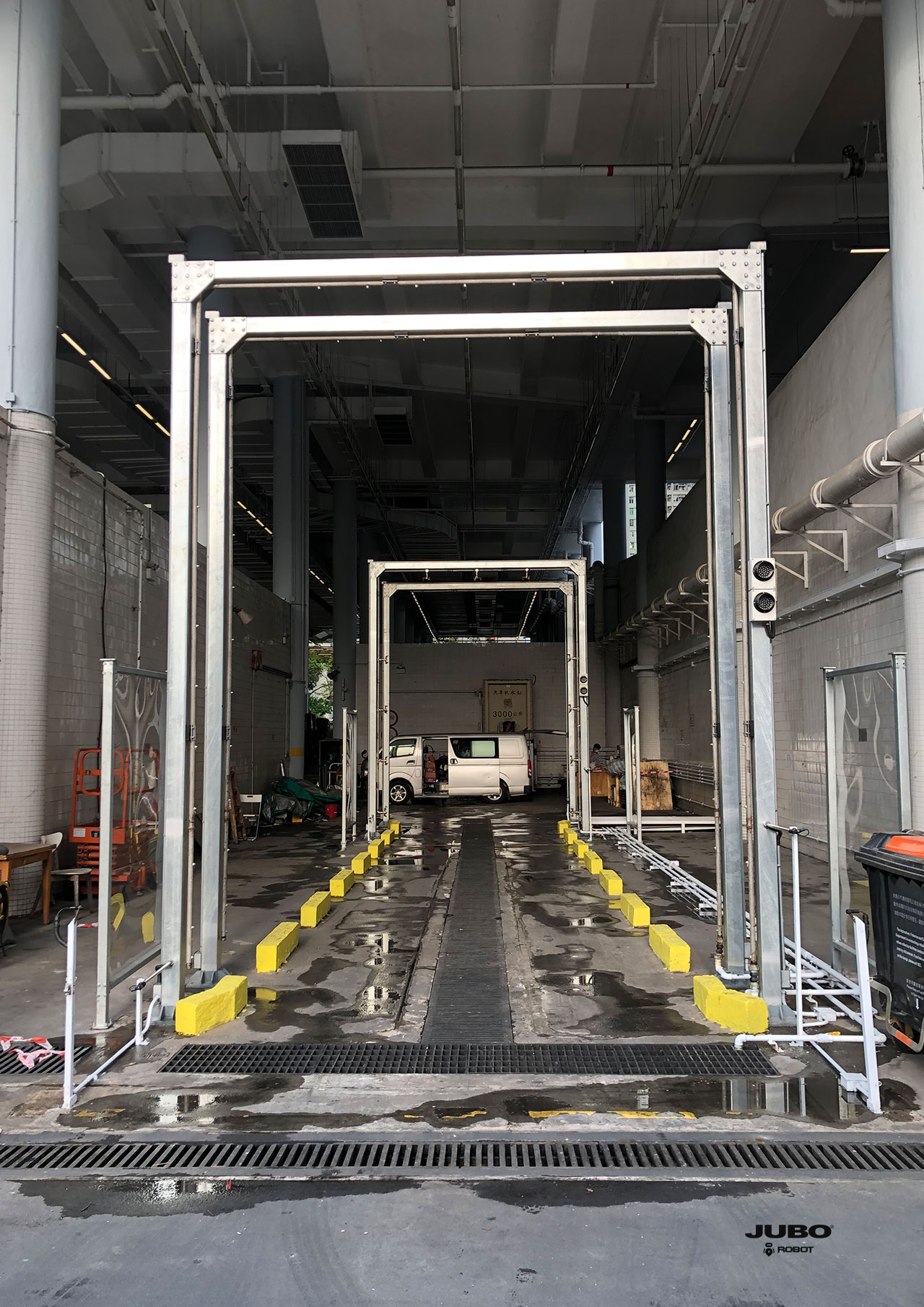

Transit drive-thru vehicle wash system with hot galvanized steel gantry ROPRE JUBO

Simple

Simple design, simple structure, simple installation, only simple make it reliable, so simplicity is most important fact for a machine keep running non-stop.

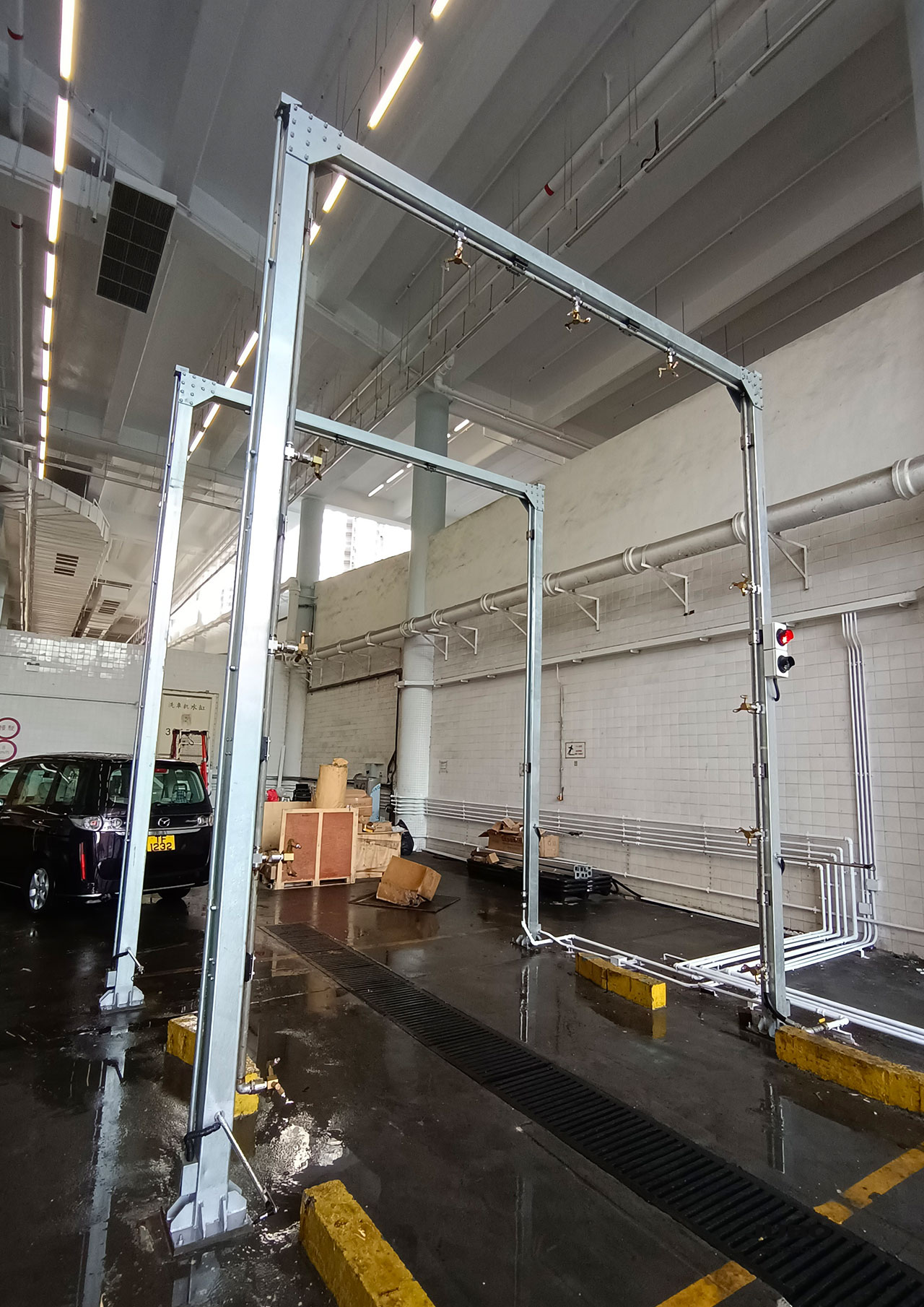

Hot galvanized steel gantry with adjustable nozzles on spinner of transit bus & truck wash system ROPRE JUBO

Partnership

JUBO is open to the globe, be partners to follow innovation and grow together.

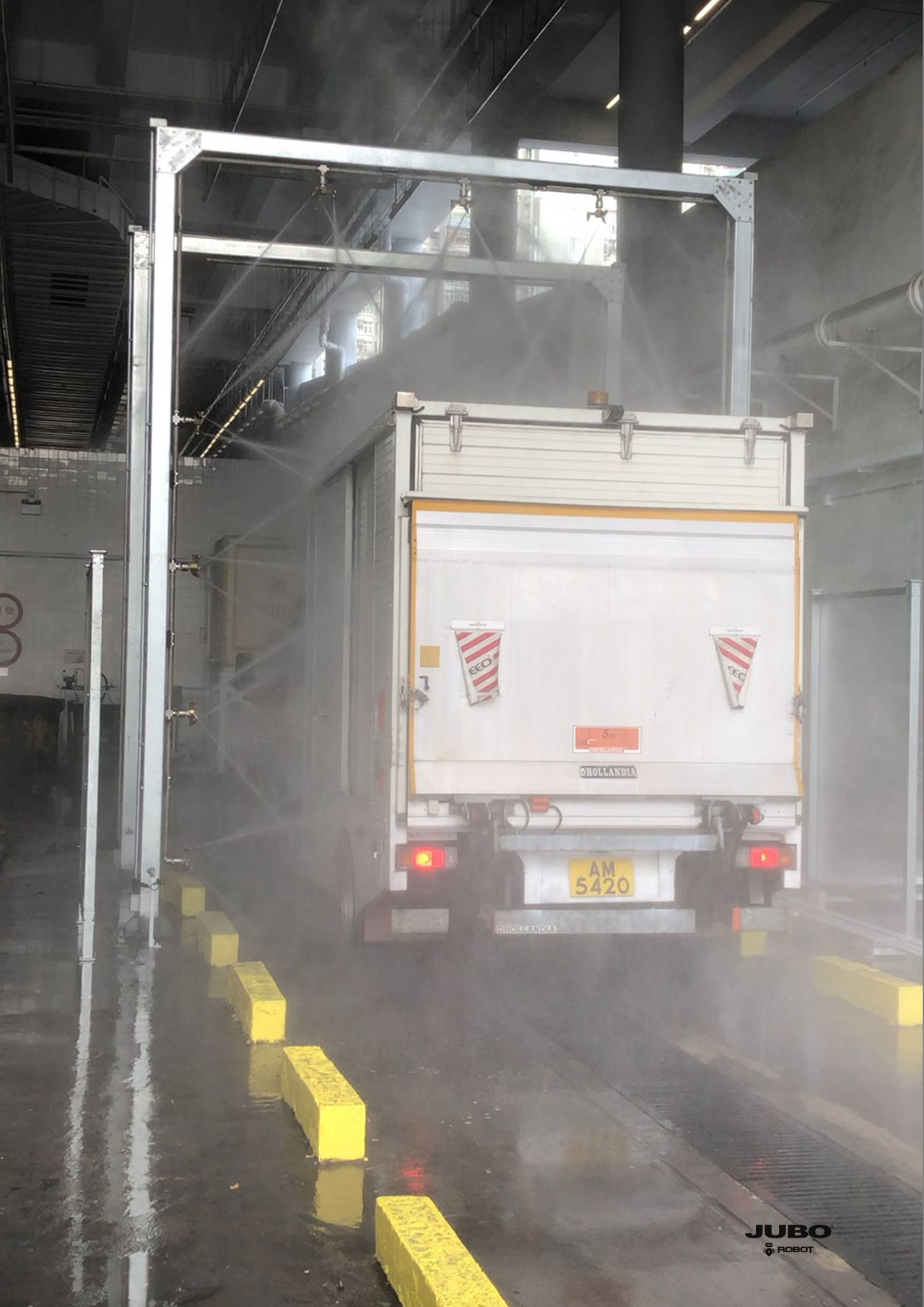

Automatic wash systems for school bus and motorcoach fleets ROPRE JUBO

China

JUBO headquartered in China, with all series production chain support, it will be easy to supply goods and easy transport via SHANGHAI port to the whole world.

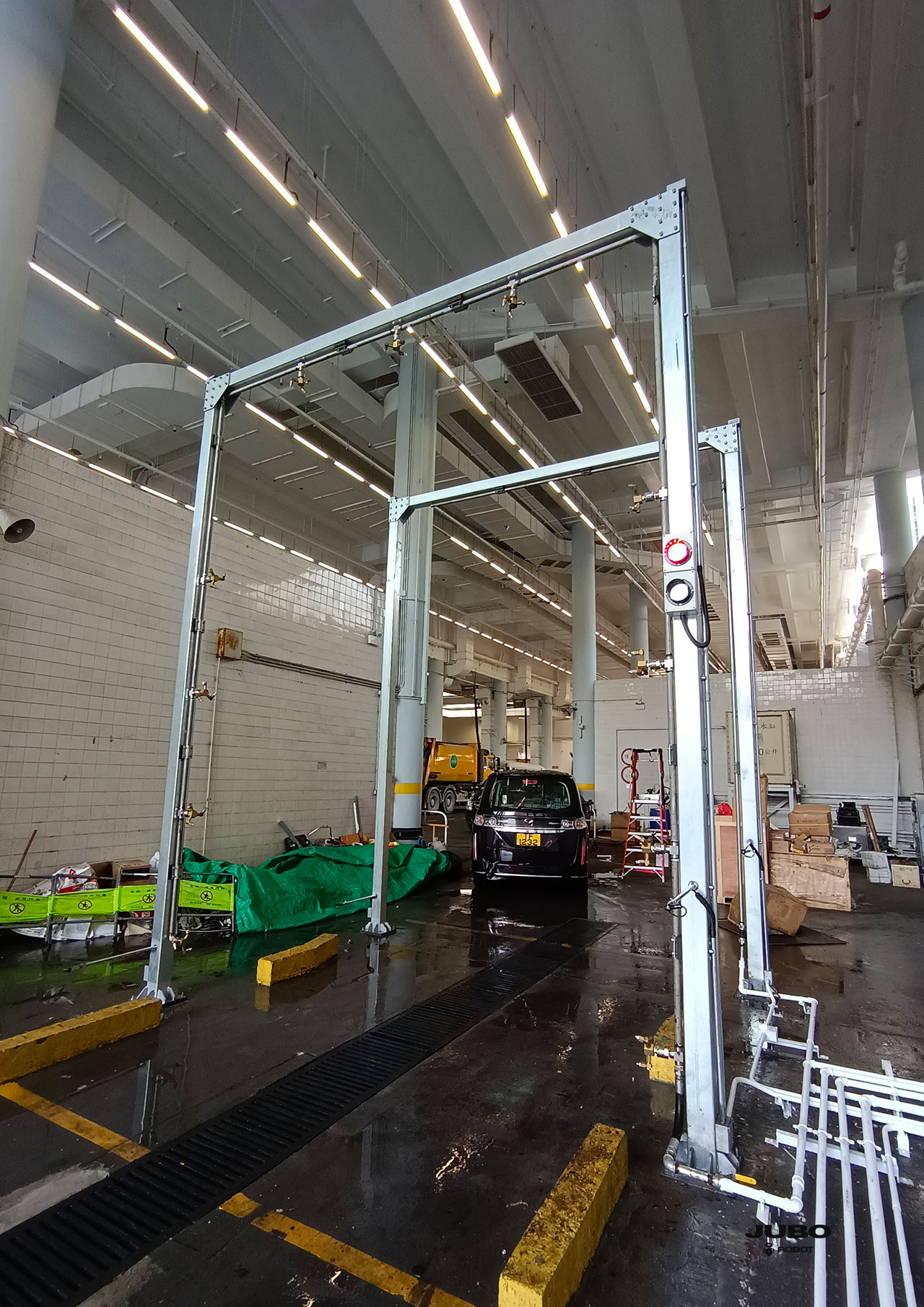

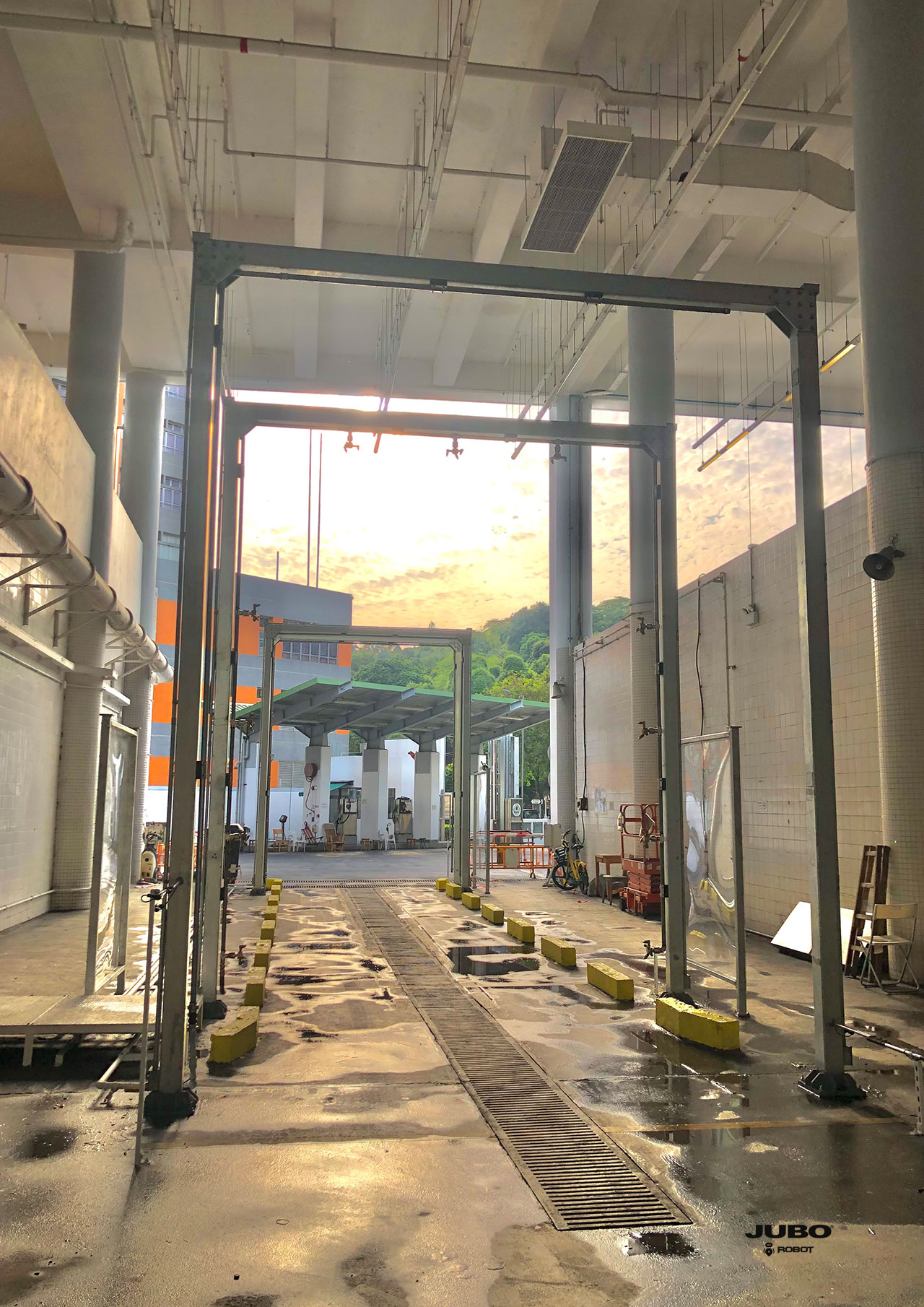

Drive-through wash system for bus transit fleets and truck rigs ROPRE JUBO
Fixed gantry wash systems for tractor trailer and transit fleets
Bus wash, truck wash system with High pressure underbody wash unit and chemical solvent ROPRE JUBO

Drive-through systems use a combination of wash detergents, high-volume, low-pressure jets, and high-pressure washers. JUBO automatic truck washing systems can be touchless, equipped with brushes, or both to meet the unique washing needs of your fleet.

JUBO BUS&TRUCK, Automatic truck wash, bus wash, fleet wash system, Railed or Fixed vehicle wash system, Touchless or Brush Touch vehicle wash system, with high pressure rinse, effortless, excellent wash result features.

Wash cycle

  1. Underbody Chassis Wash, high pressure
  2. Chemical Spray, low pressure
  3. LP rinse prewash, low pressure
  4. HP spinning blaster, high pressure
  5. LP rinse final, low pressure

Specifications

Electricity and power supply3PHASE 380V 50HZ 45kW, 85A
3PHASE 220V 60HZ 45kW, 120A
Electrical systemFrench Schneider

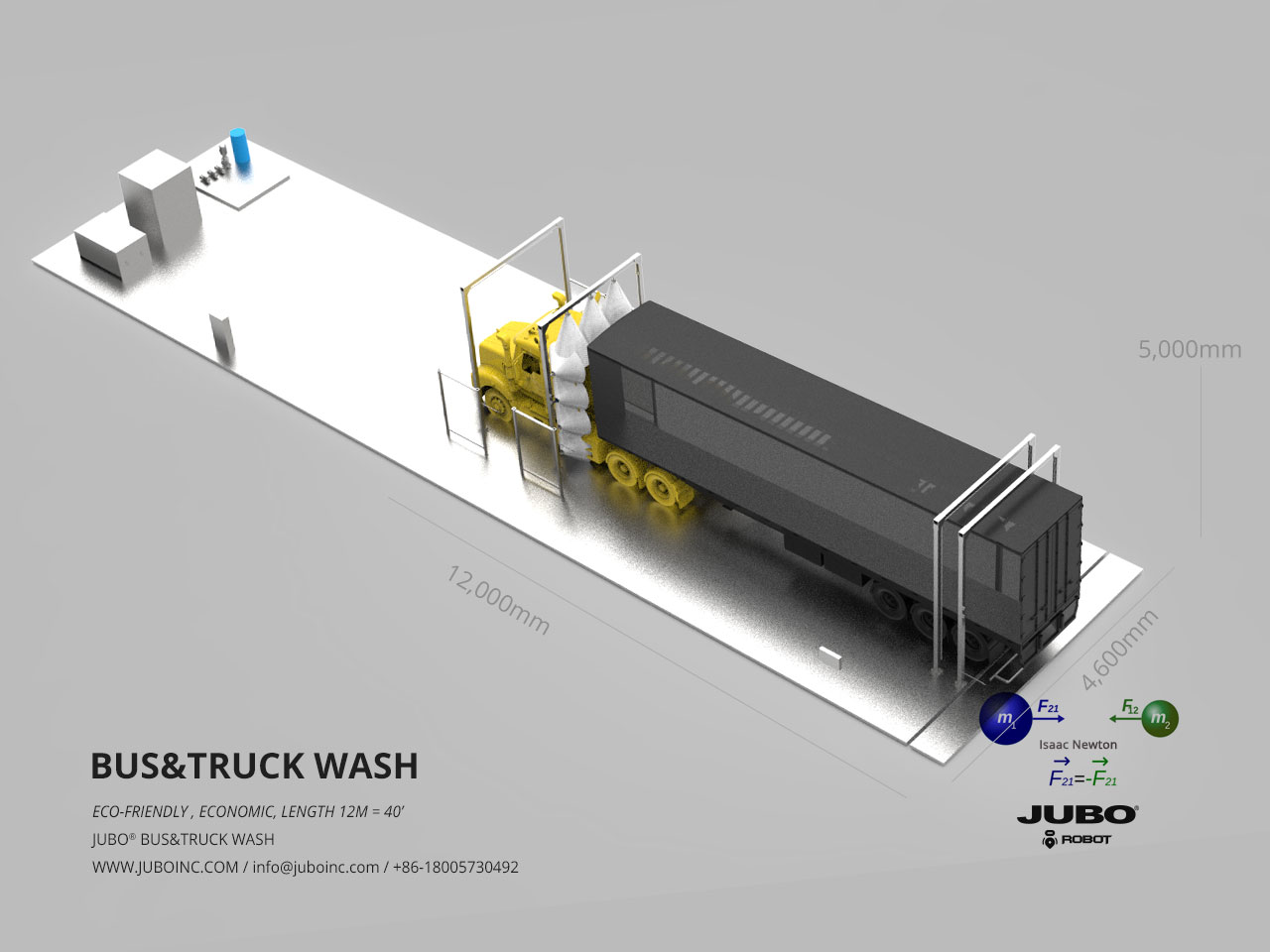

Min installation dimensionsL12000 x W4600 x H5000mm
L40 x W16 x H16.5ft
Max washing vehicle dimensionsL30000, x W4000 x H4500mm
L100 x W13 x H15ft
MaterialHot dipped galvanized steel, Stainless steel 304
PumpHP pump piston 130L/min 22kW = 30HP
HP pump piston 110L/min 15kW = 20HP
Water pressure100~130Bar, 240L/min adjustable
Wash speed1-10minutes/vehicle, adjustable
Chemical consumption0.02~0.08L/ vehicle, adjustable

Description

JUBO BUS&TRUCK, Automatic truck wash, bus wash, fleet wash system, Railed or Fixed vehicle wash system, Touchless or Brush Touch vehicle wash system, with good turnover, effortless, excellent wash result features.

Touchless Type

Combined with functions of HP Chassis wash & HP Rinse arc, Top brush, Vertical brushes, Lava-Foam(optional), Tri-color foam(optional), Soap(optional), Hot Wax(optional), Spotless(optional), Dryer(optional), etc.

Deployment

Deployed for outdoor wash stations, coach center, bus parking lot, truck parking lot , several self-serve wash bays and single automatic car wash system will be a good idea to work together.

Application

  1. Vans
  2. Bus
  3. Pickup-Truck
  4. Fleet
  5. Trucks and equipment
  6. School buses
  7. Tractor-trailers
  8. Military vehicles
  9. Semi-trucks
  10. Garbage trucks
  11. Oil mining vehicles
  12. Other odd-shaped

Catalog

  • Bus&Truck Wash System ROPRE
  • JUBO CAR WASH CATALOG
