JUBO360

TOUCHLESS CAR WASH SYSTEM - JUBO 360

Model: jubo360, Type: In-bay automatic touchless (IBA Touchless)

Description

Higher Quality + Increased Revenue + Reduced Costs = Better Return!
JUBO360 has been long-term improved in in-bay automatic vehicle wash industry.

Video of LED screen indicator for touchless car wash machine jubo360

JUBO is dedicated to providing wash operators with the most simple, sophisticated, innovative equipment with features of Performance, Reliability and Quality. The JUBO360 raises the standard again with new revenue-enhancement features and total cost-of-ownership improvements that offers wash owners the opportunity to own a consistent revenue-create car wash machine

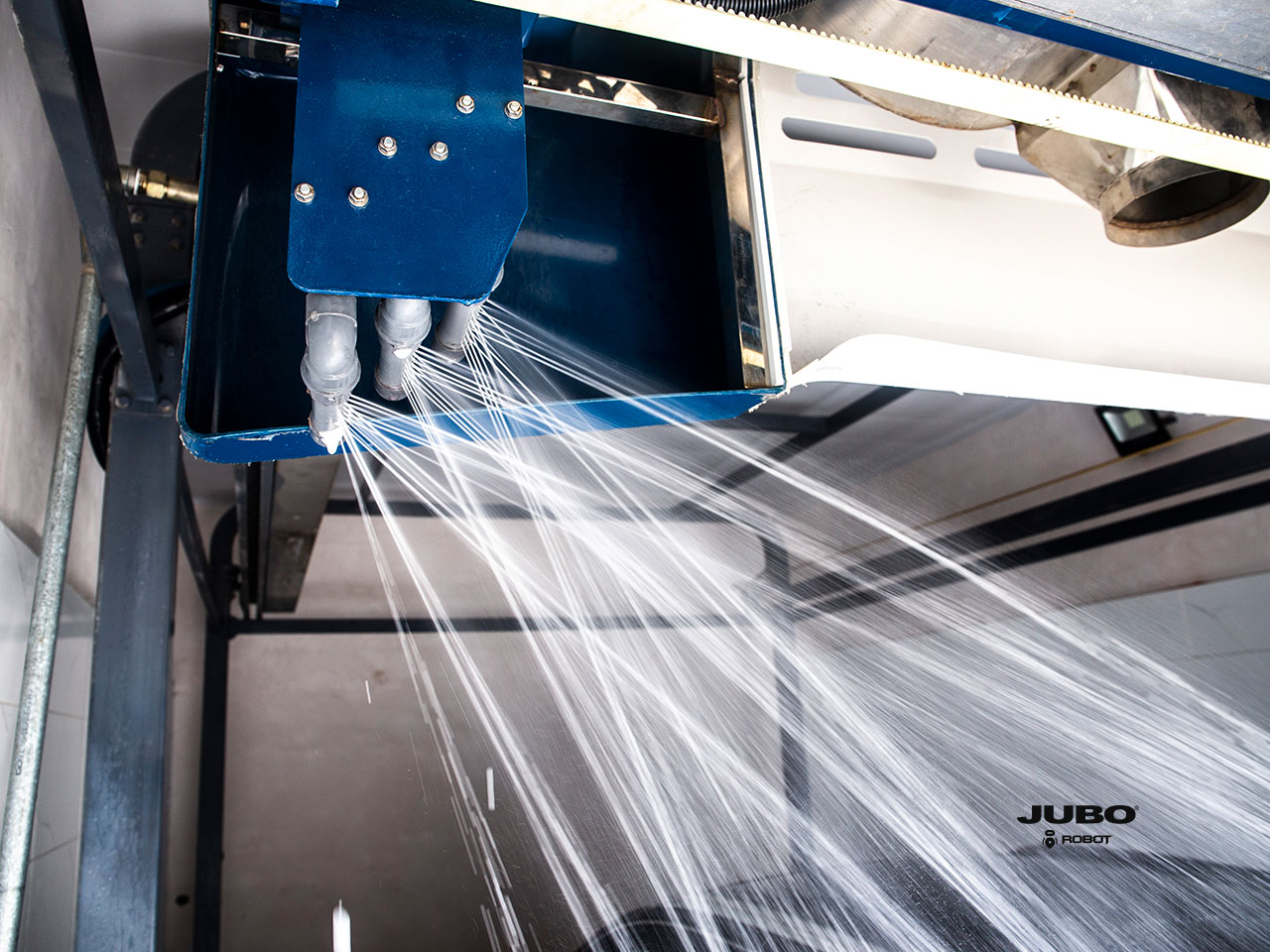

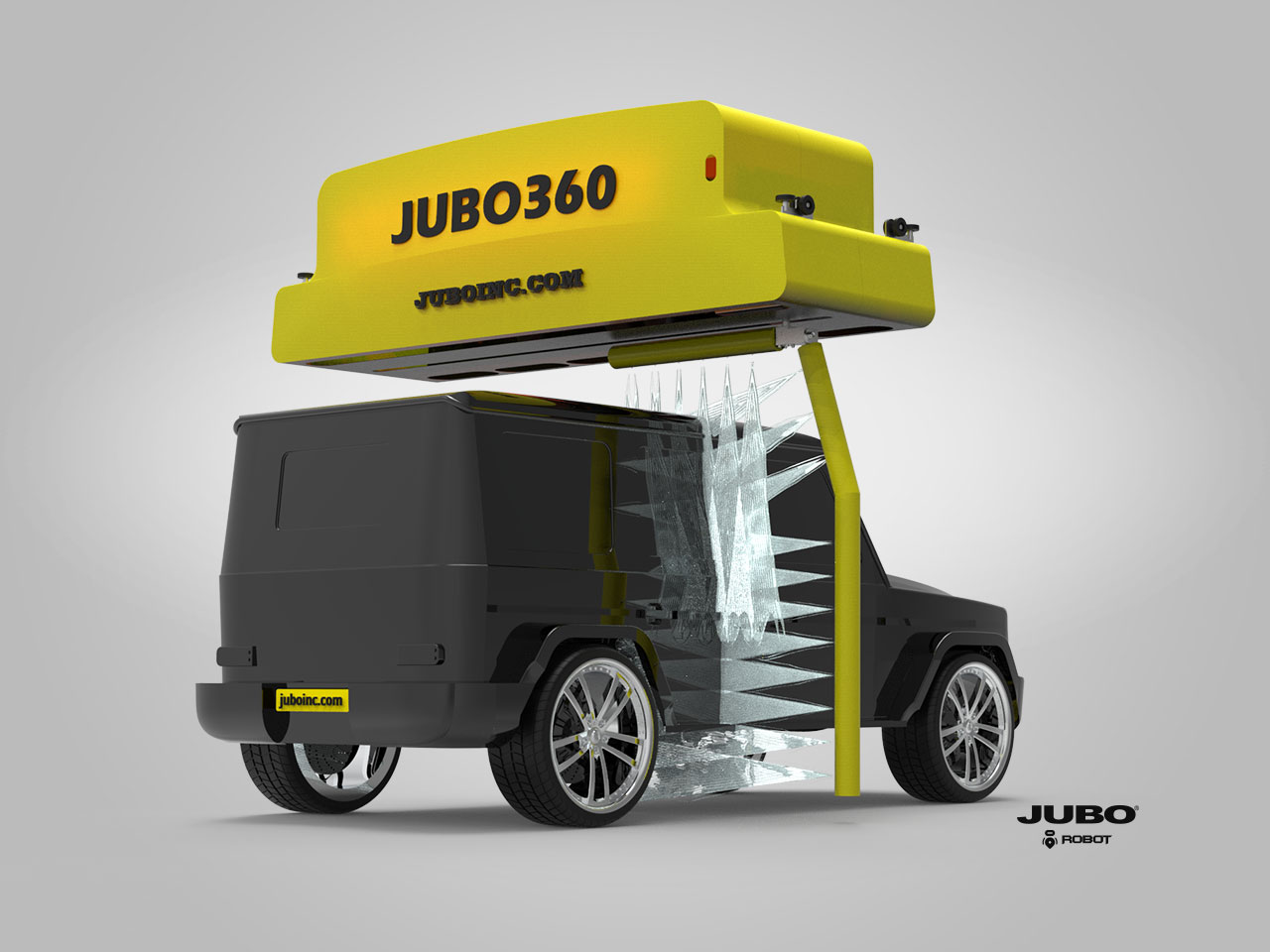

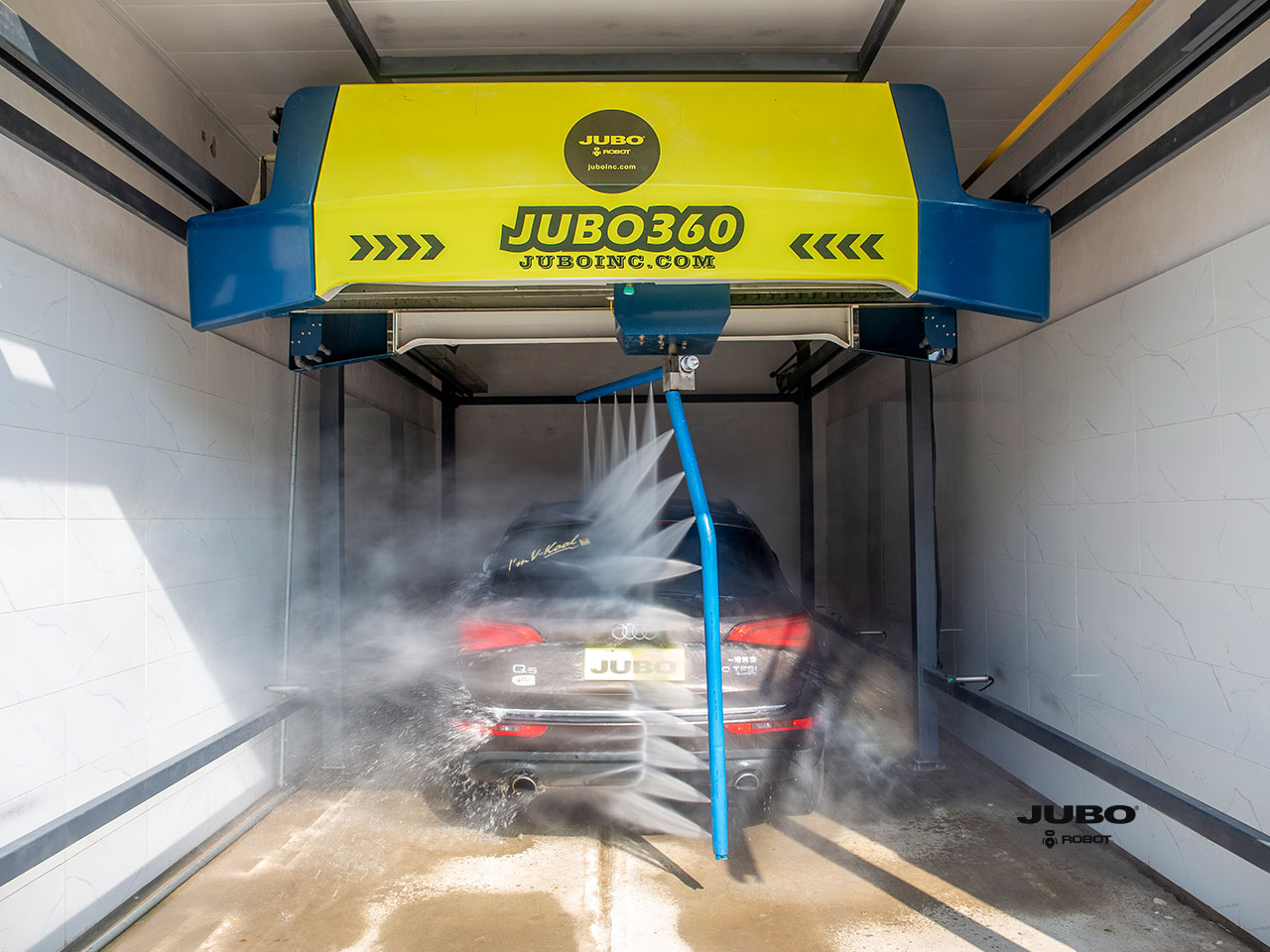

JUBO 360, Automatic car wash system, Touchless vehicle wash system, High-pressure wash system, with sector nozzles on 360 spray arm to form a high-pressure water blade to clean vehicles (mini, sedans, SUV, MPV etc.) – Combined with functions of HP Chassis wash, HP 360 wash, tri-color foam, Pre-soak, Hot wax, Spotless water, Dryer.

Features

1. Anti-corrosive Hot-dipped galvanized steel & Stainless steel material
2. Corrosion-Resistant Bridge & Trolley

3. Smart 360 Technology (with: Smart Networking, Smart Dwell)

4. Automatic Obstacle Guidance

5. In-Bay LED screen indicator

6. Pump Station

7. Smart Arch Control, Smart Drying System and Smart Cleaning System

8. Virtual Treadle

9. Electrical Control Panels

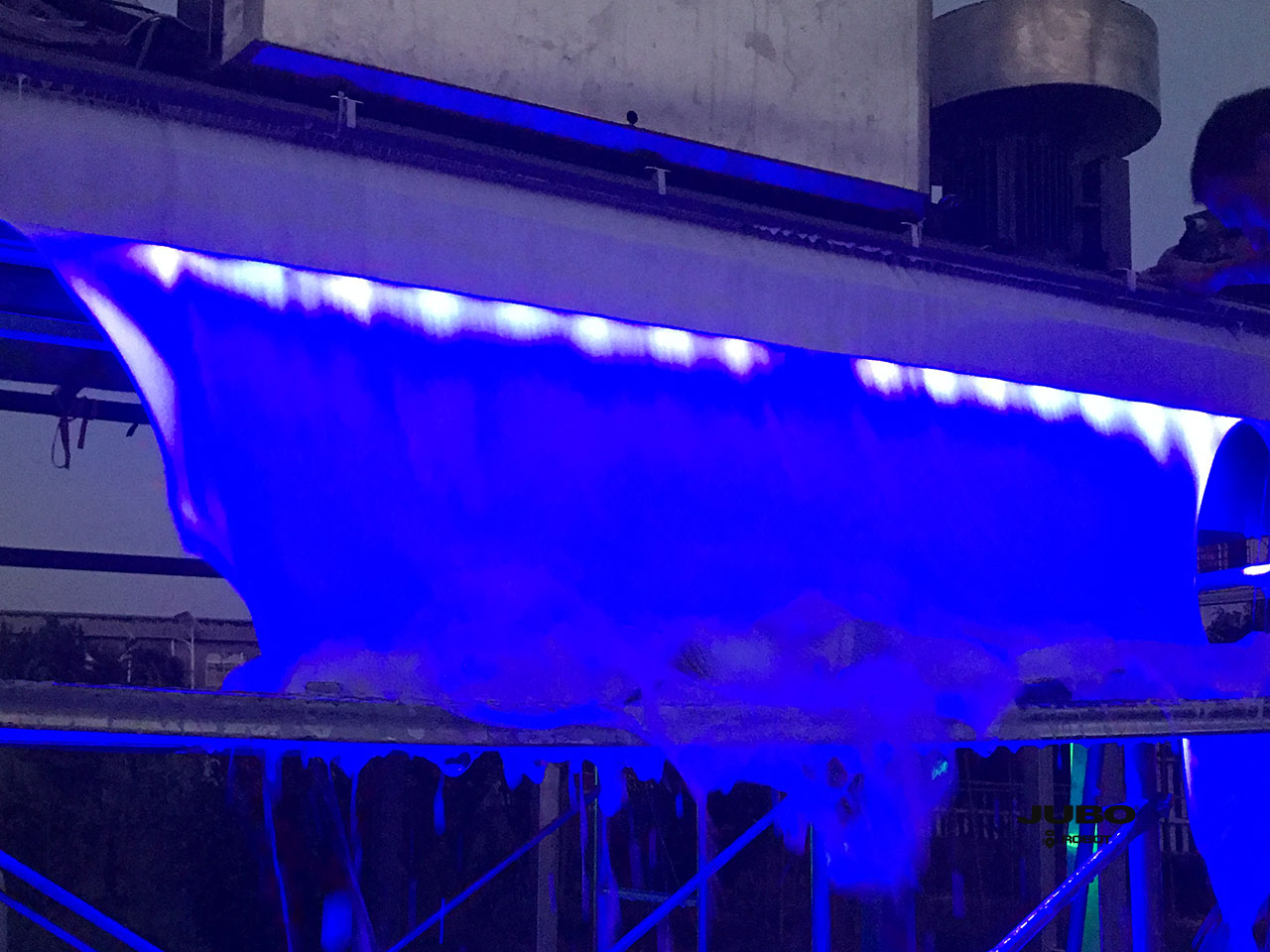

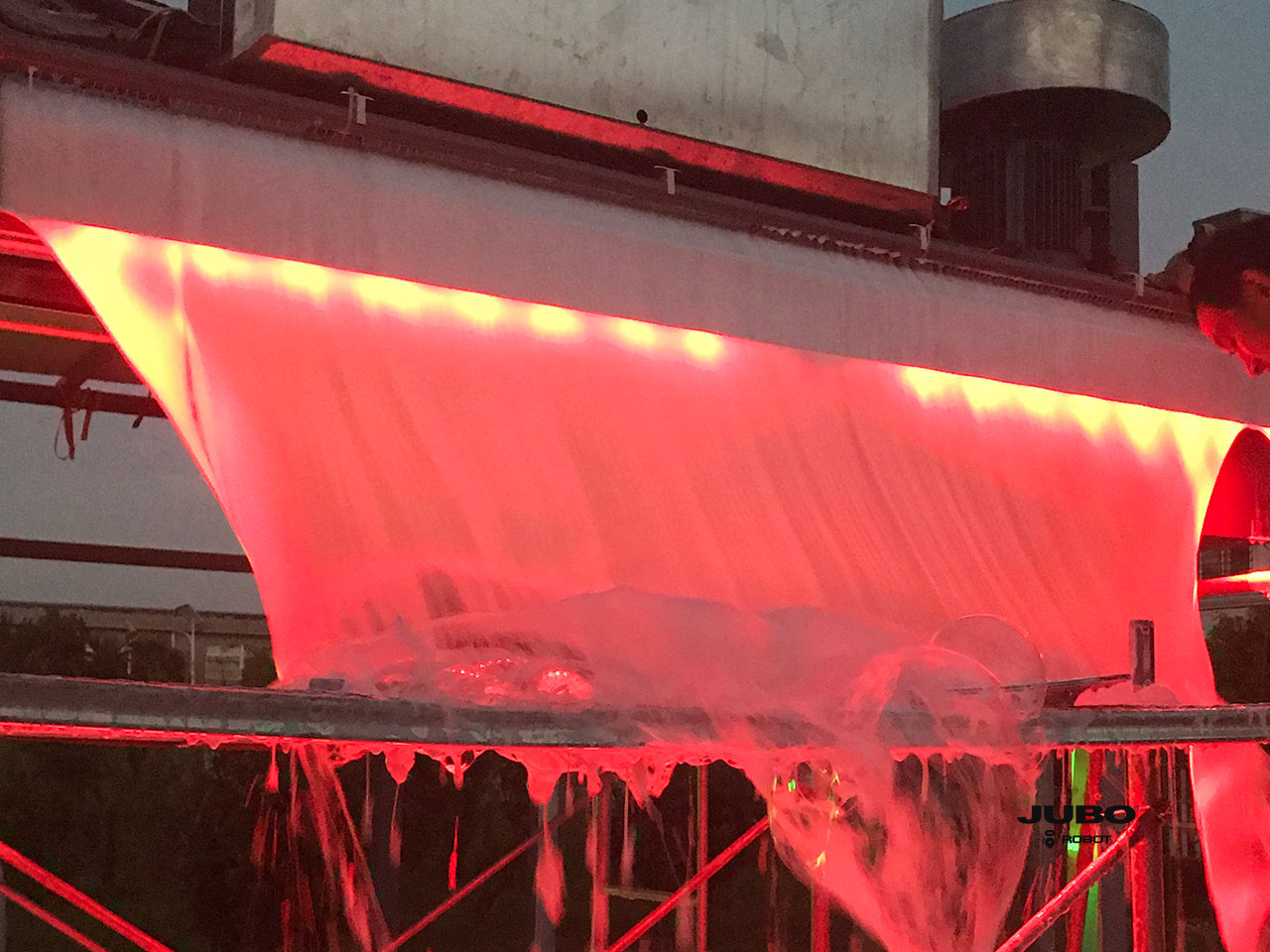

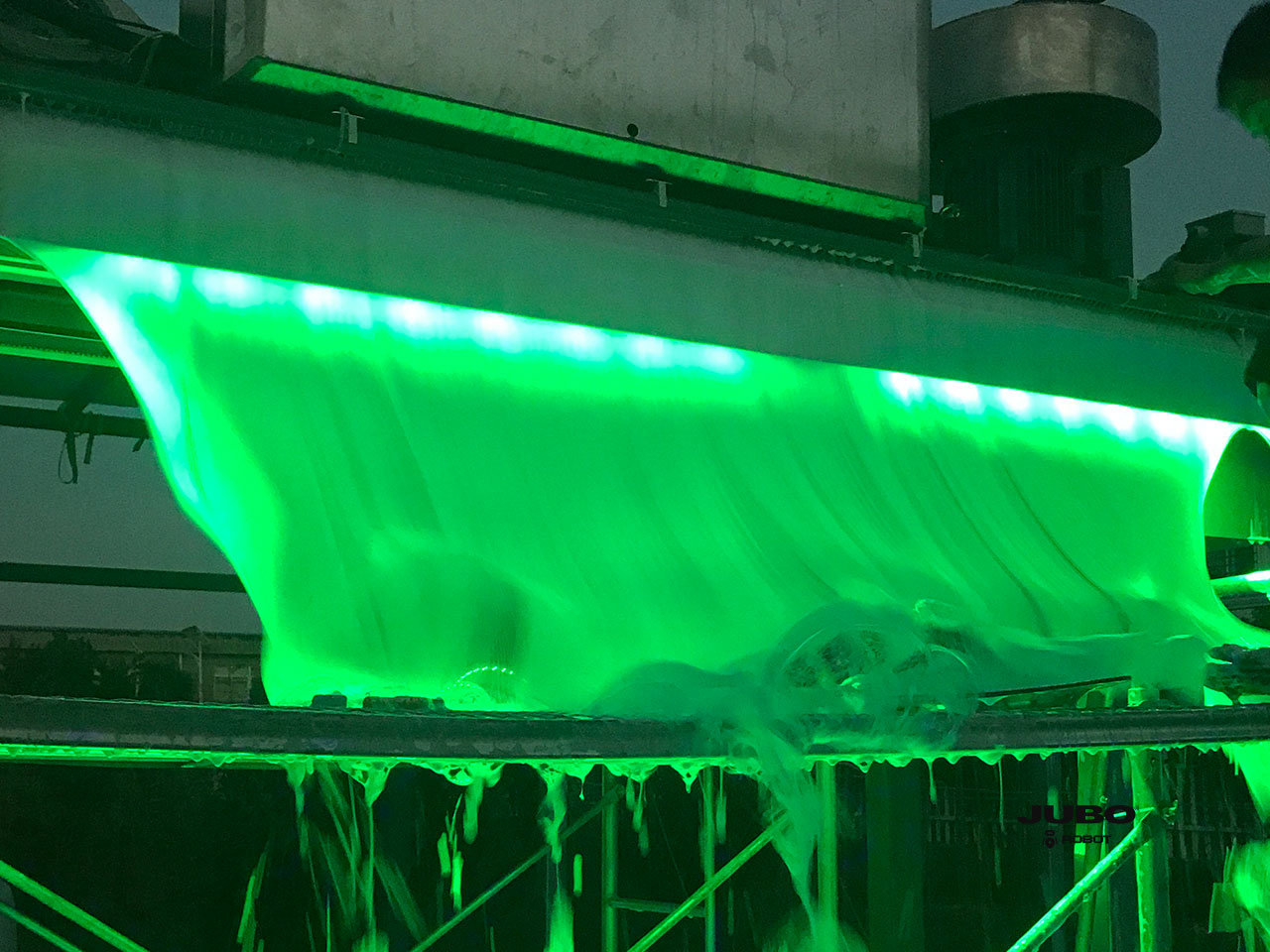

10. LED Lavafall

11. Anti-corrosive metering pump

12. Fully Loaded E-Chain & Bulkhead Manifold

13. Ultimate Cover Package

14. Advanced Arch Package

15. Electric High Pressure Gatling Spray Nozzles

16. High Pressure Side Combo Blasters

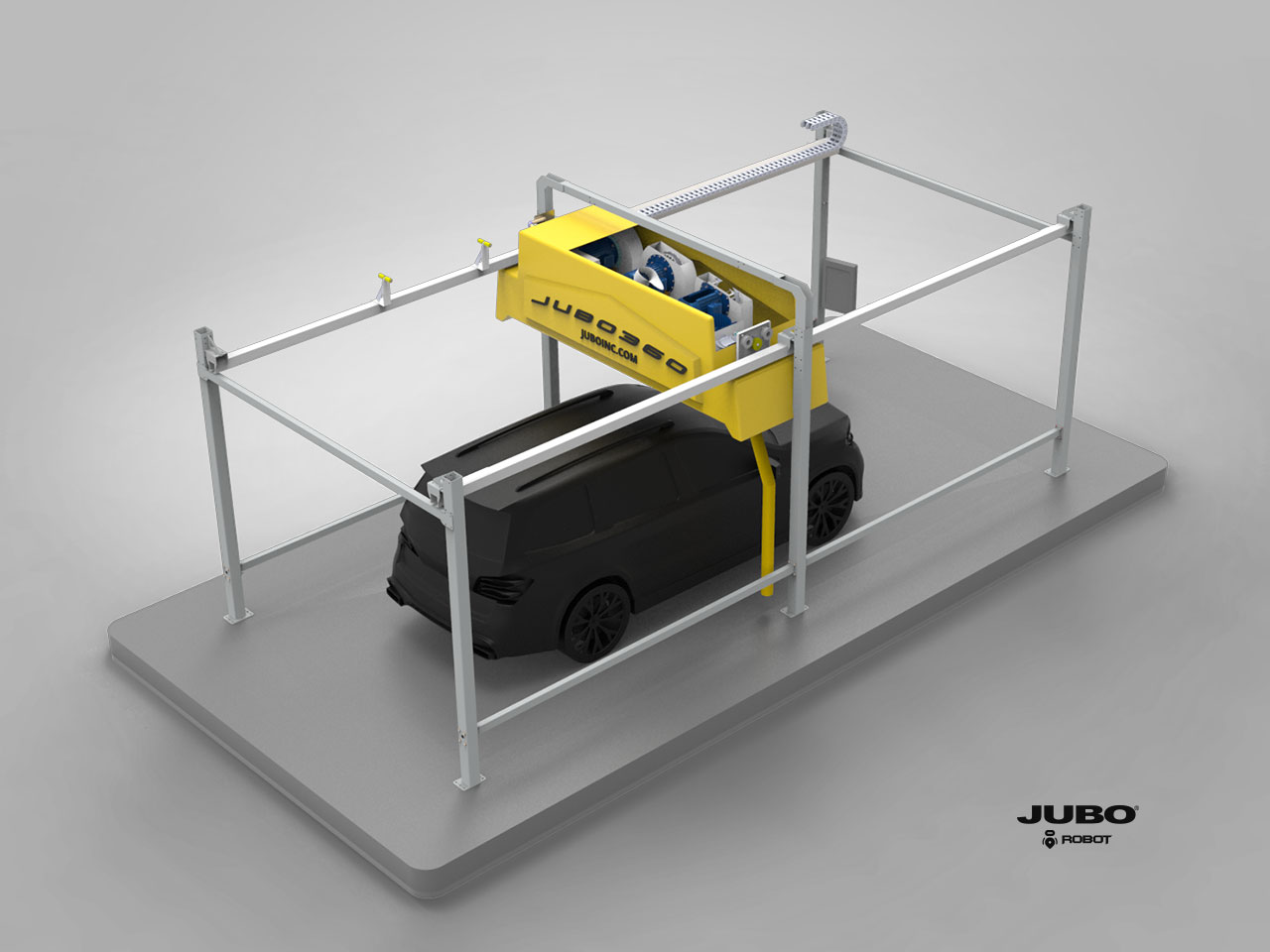

17. Free Standing Frame

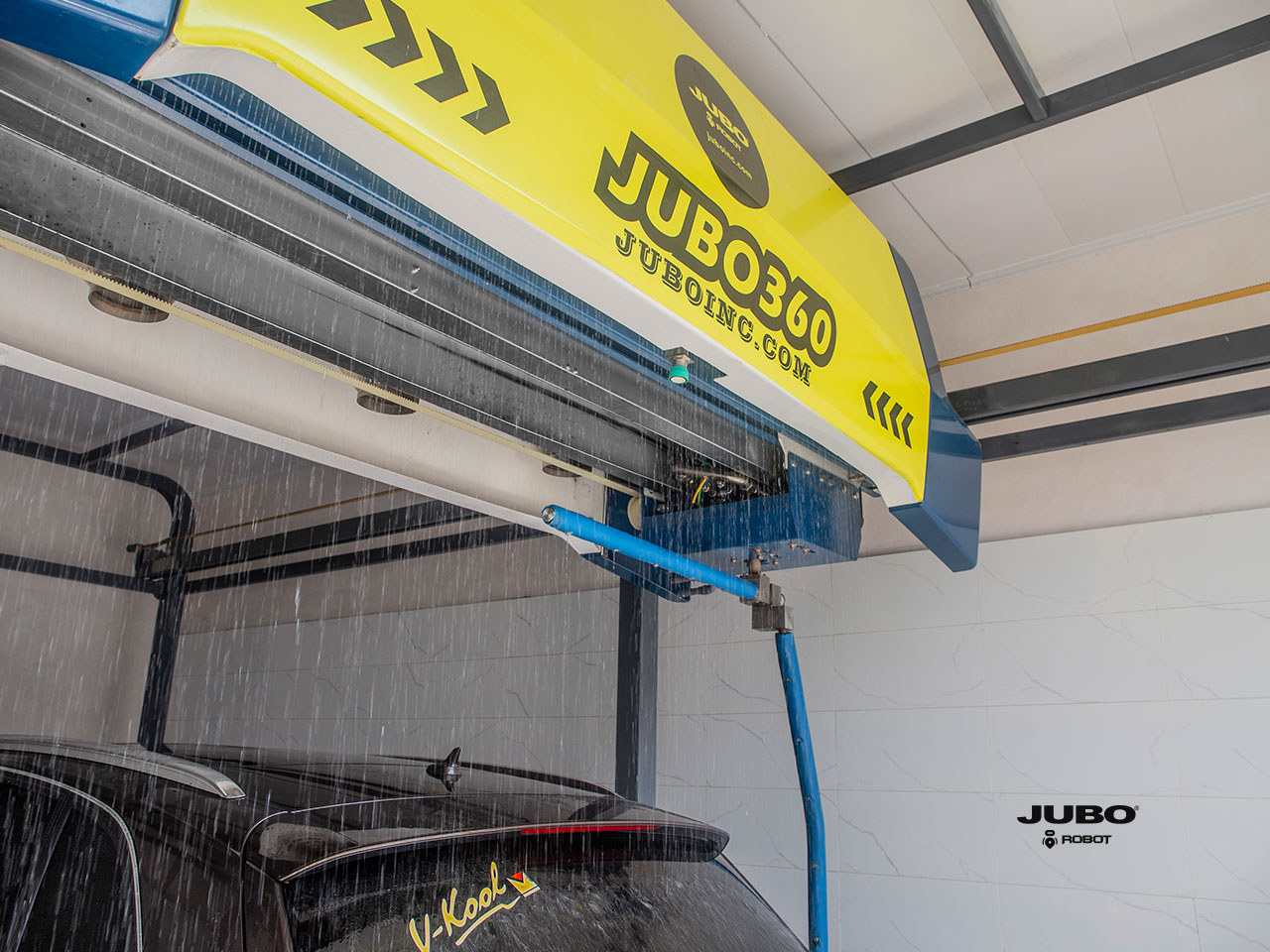

18. Spot Free Rinse Application

19. Wash Activation Entry Terminals

20. High Pressure Rinse Arch


Electricity and power supply	3PHASE 380V 50HZ 25kW, 66A 3PHASE 220V 60HZ 25kW,115A
Electrical system	French Schneider
Min installation dimensions	L8000 x W3700 x H 3500mm L26.3 x W12.2 x H11.5ft
Max washing vehicle dimensions	L6000 x W2100 x H2100mm
Material	Hot dipped galvanized steel, Stainless steel 304
Water pressure	100~130Bar

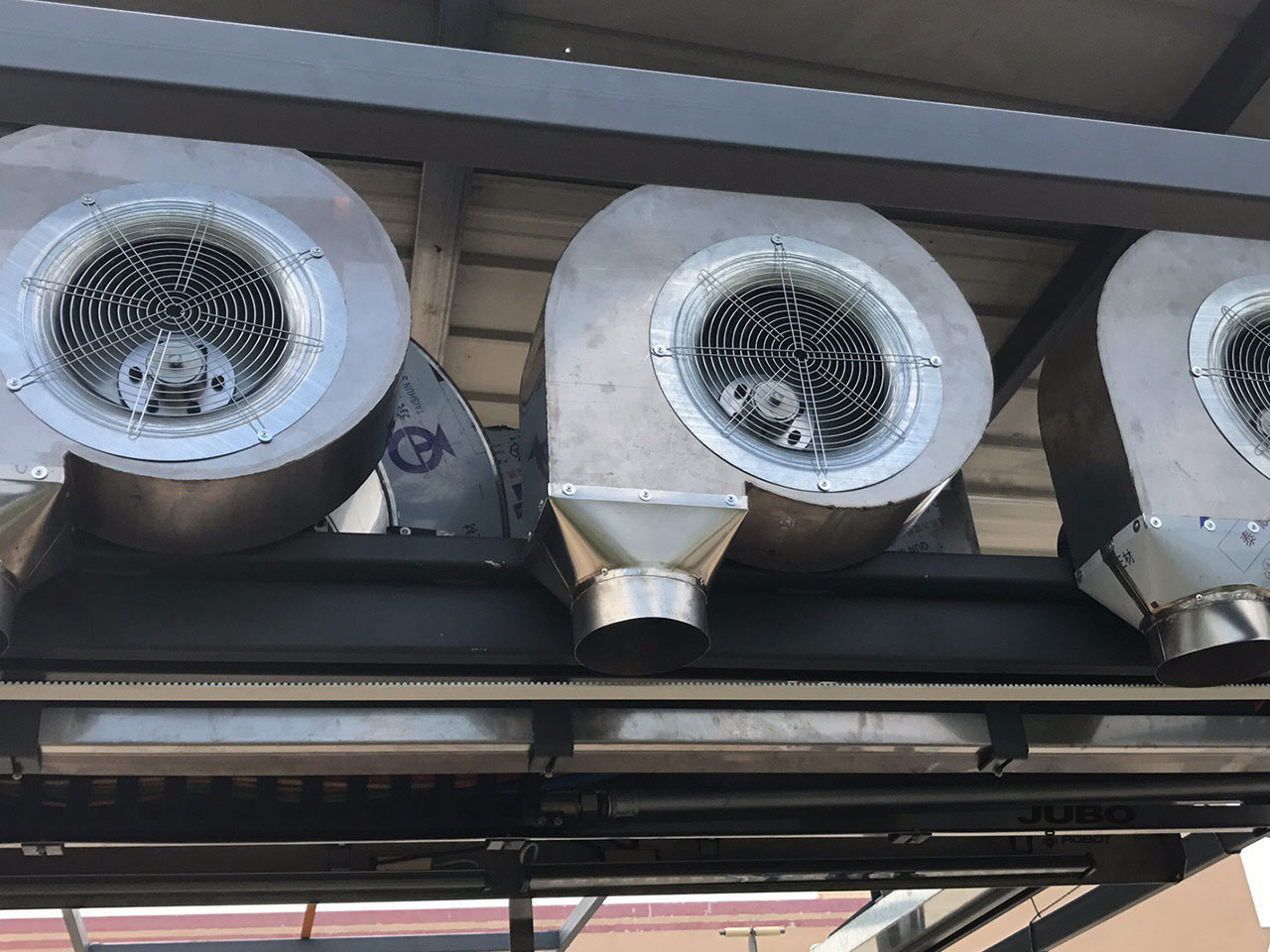

Dryer	5.5kw x 4 = 7.5HP x 4

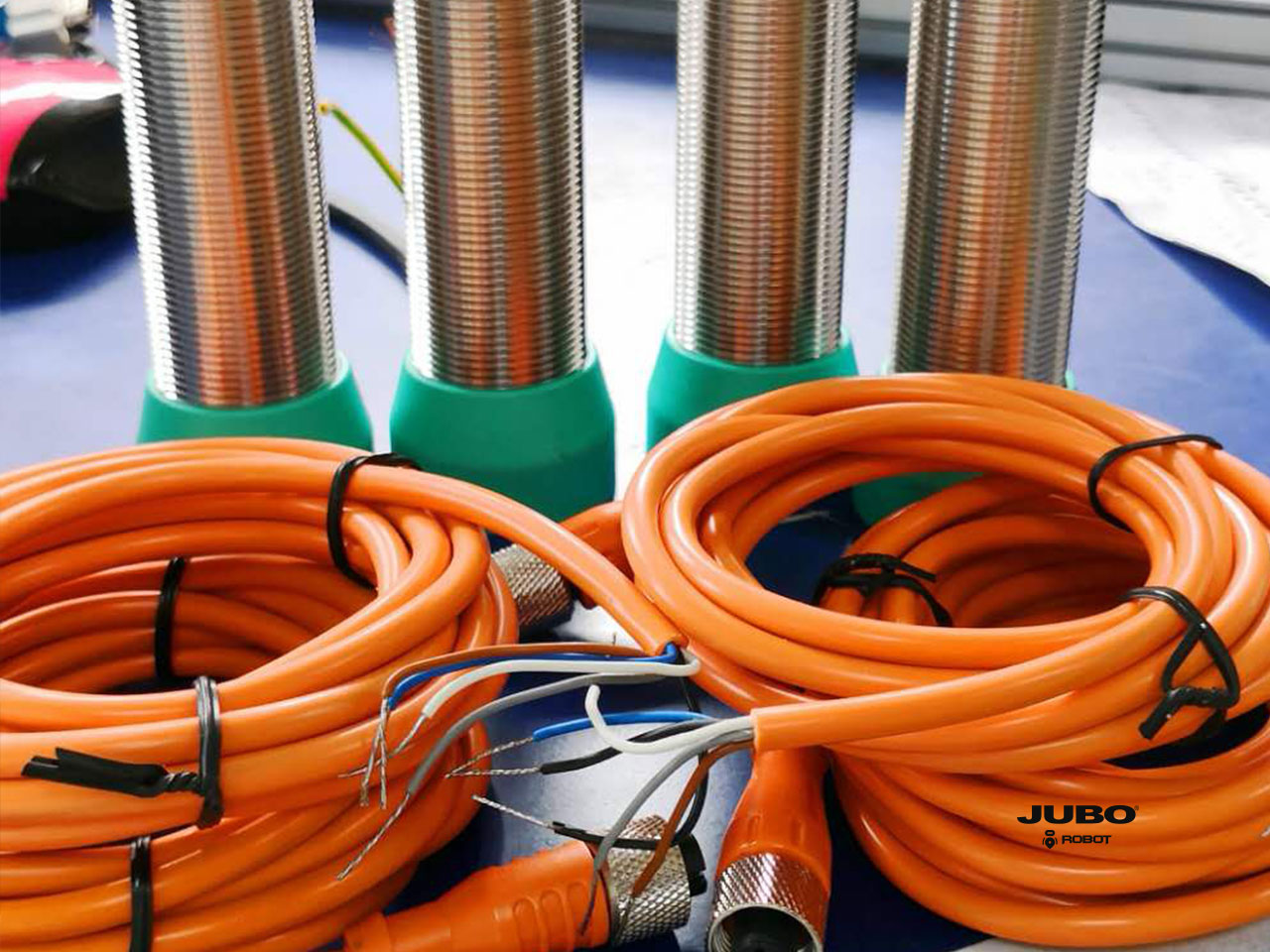

3D Detecting system	German Pepperl+Fuchs ultrasound
Drive system	Timing transmission + VFD
Wash speed	2-8minutes/car, adjustable
Chemical consumption	0.02~0.08L/car, adjustable

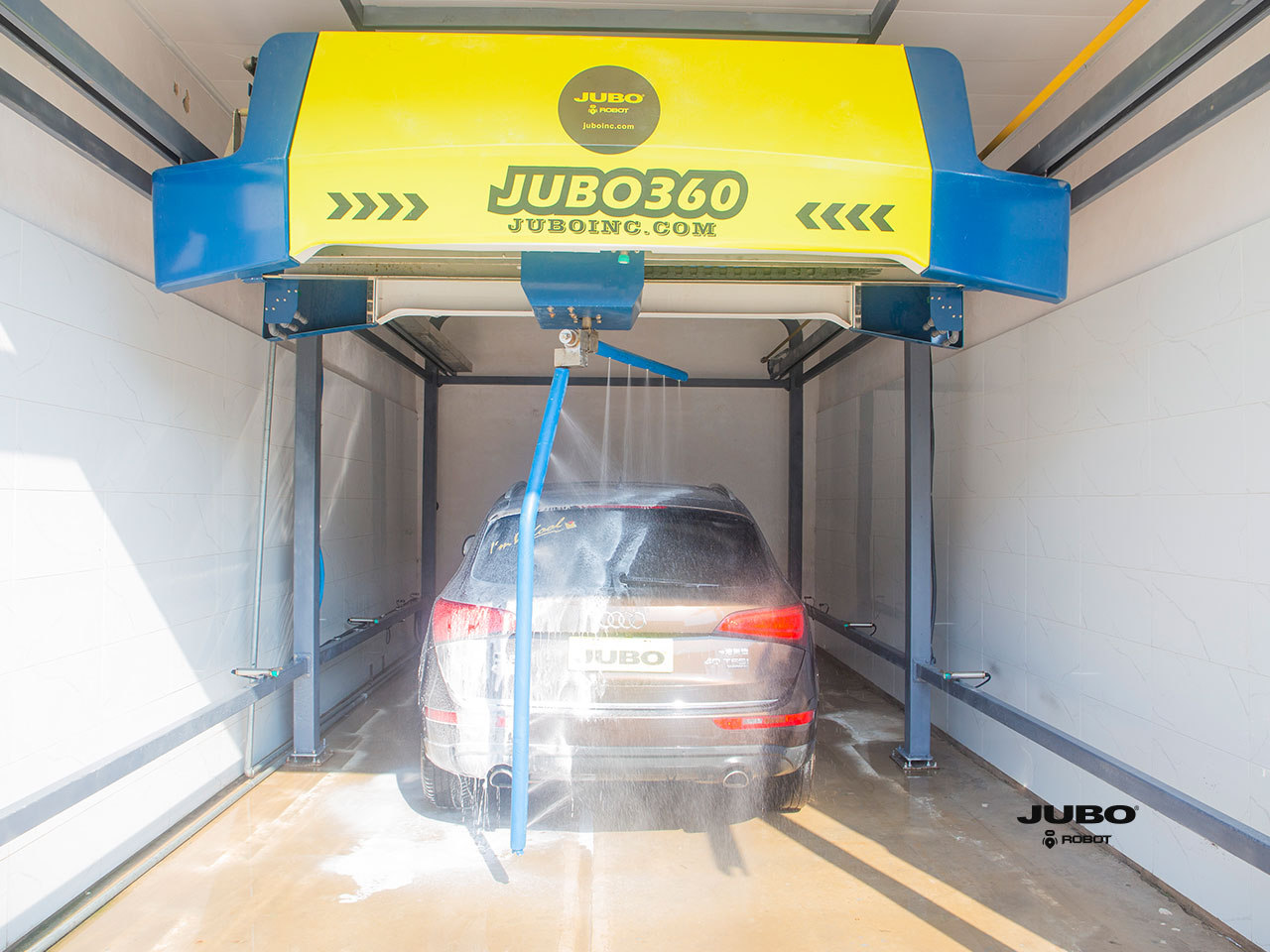

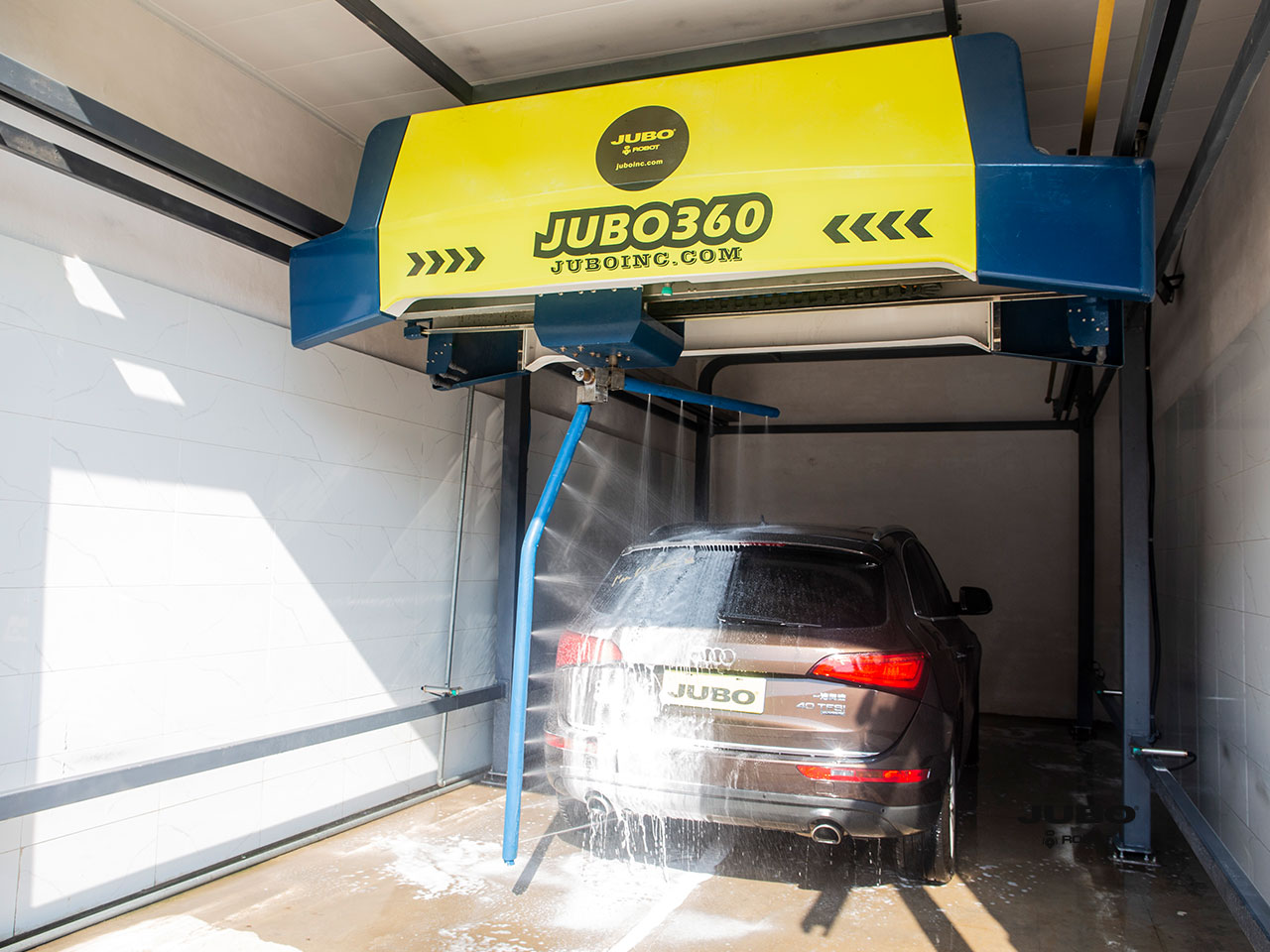

Wash cycle	Chassis wash Presoak A HP water Presoak B(optional) HP water Foamfall(optional) HP water one/tri colored foam() HP water RainX Dryer

Deployment

Deployed for outdoor wash stations or single in-bay wash store, several self-serve wash bays and single automatic touchless car wash system will be a good idea to work together. Steel frame or wall mounted both works.

Application

1. Mini
2. Sedan

3. SUV

4. MPV

5. Pickup-Truck


FAQ - frequently asked questions

What material of the JUBO360 touchless car wash frame?

What is the high pressure water pump motor power consumption?

Can i wash large-size SUV/MPV/PICK-UP?

What is the min room dimentions required to mount the JUBO360?

Can the JUBO360 car wash machine installed in an open public area without roofing?

Differences among touchless car wash models

"●" include "○"optional "/“ none

Items	jubo360	ventus	tornado	parvus	micro
Chassis jet	●	●	●	●	●
Side combo jet	●	●	●	●	●
Presoak A	●	●	●	●	●
Presoak B	○	○	○	○	○
Tri-color foam	●	○	○	○	○
One-color foam	○	●	●	○	○
Foamfall	○	○	○	○	○
HP water	●	●	●	●	●
RainX	●	●	●	○	○
Dryer	●	●	●	○	○
Gatling jet	○	○	○	○	○
Led screen	●	○	○	○	○
Spot Free	○	○	○	○	○
Osmossis	○	○	○	○	○
WheelMaster	○	○	○	○	○
360Arm protection	●	●	●	●	●
Car length detect	●	●	●	●	●
Car width detect	●	/	/	/	/
Failure alarm	●	●	●	●	●
E-Chain	●	/	/	/	●
Terminal control	●	●	●	●	●
Touchscreen	●	○	○	○	○
Frame	●	●	●	●	●

Catalog

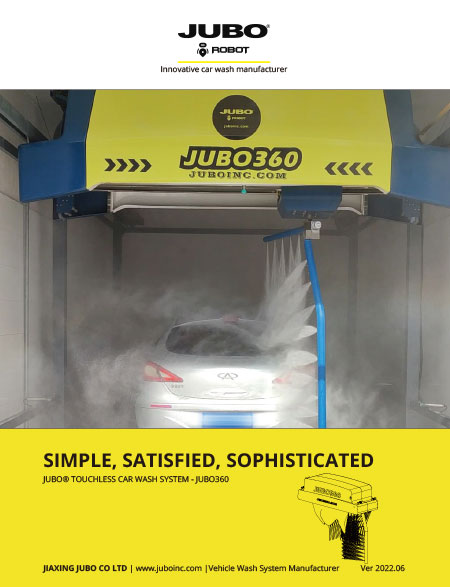

• JUBO360 CATALOG
• JUBO CAR WASH CATALOG
