TOUCHLESS CAR WASH SYSTEM - MICRO

Model: micro, Type: In-bay automatic touchless (IBA Touchless)

Description

Higher Quality + Increased Revenue + Reduced Costs = Better Return!
MICRO has been long-term improved in in-bay automatic vehicle wash industry.

JUBO is dedicated to providing wash operators with the most simple, sophisticated, innovative equipment with features of Performance, Reliability and Quality.

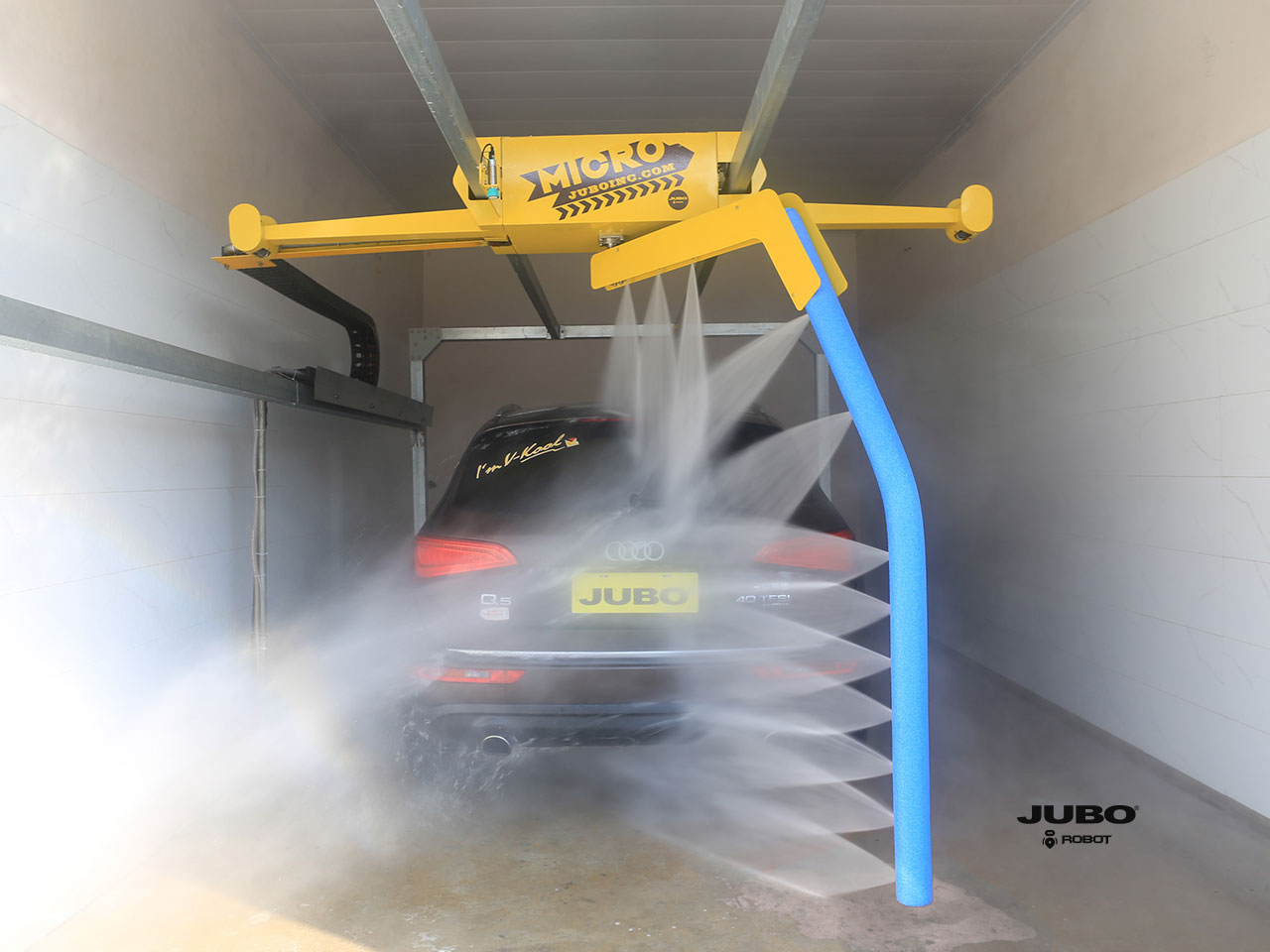

High pressure rinse program of Touchfree car wash machine MICRO jubo

MICRO is an automatic car wash system, Touchless car wash system, High-pressure wash system, with sector nozzles on 360 spray arm to form a high-pressure water blade to clean vehicles (mini, sedans, SUV, MPV etc.) – Combined with functions of HP Chassis wash, HP 360 wash,Pre-soak,Dryer(optional).

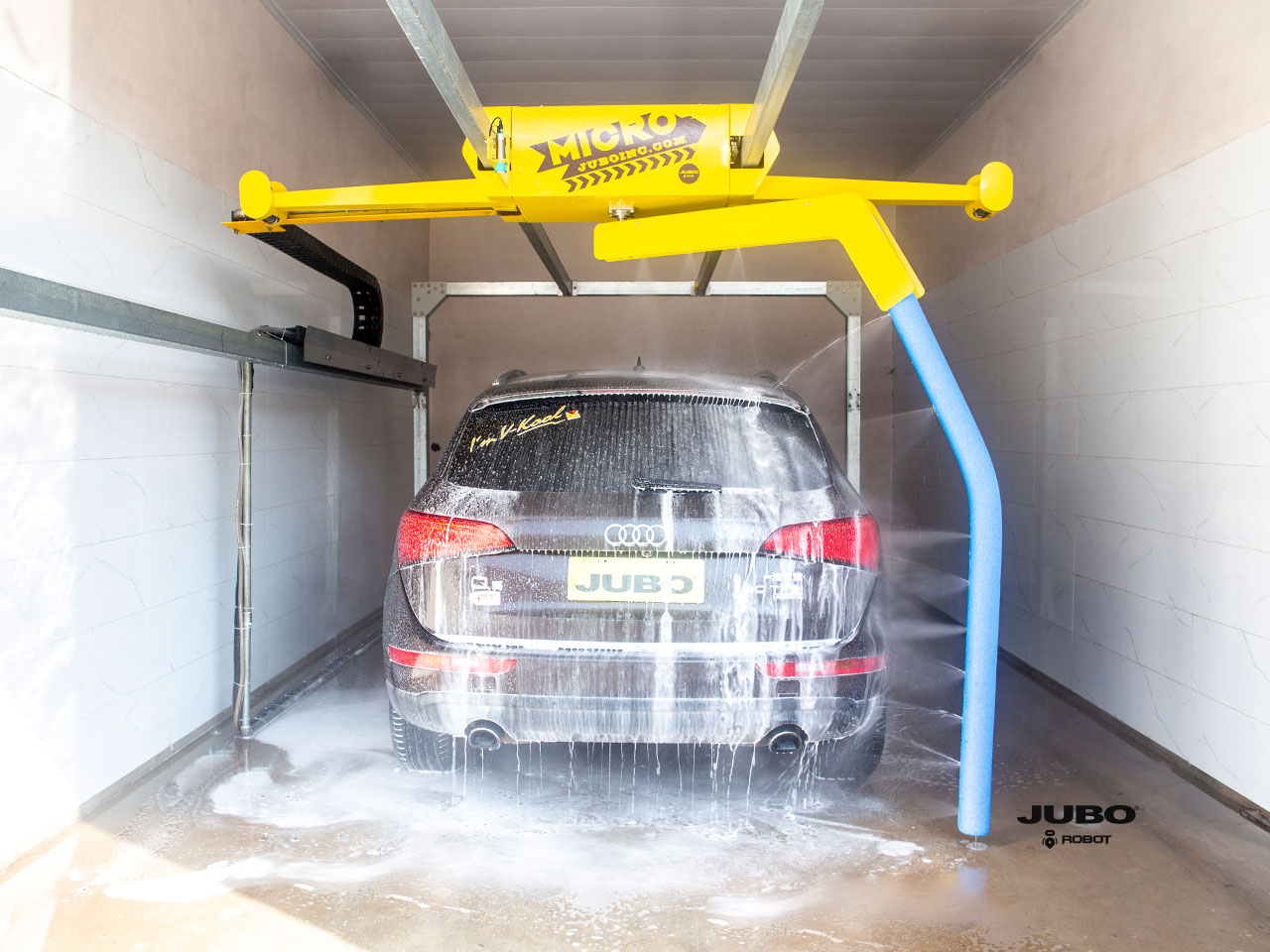

Pre-soak Alkaline program of Touchfree car wash machine MICRO jubo

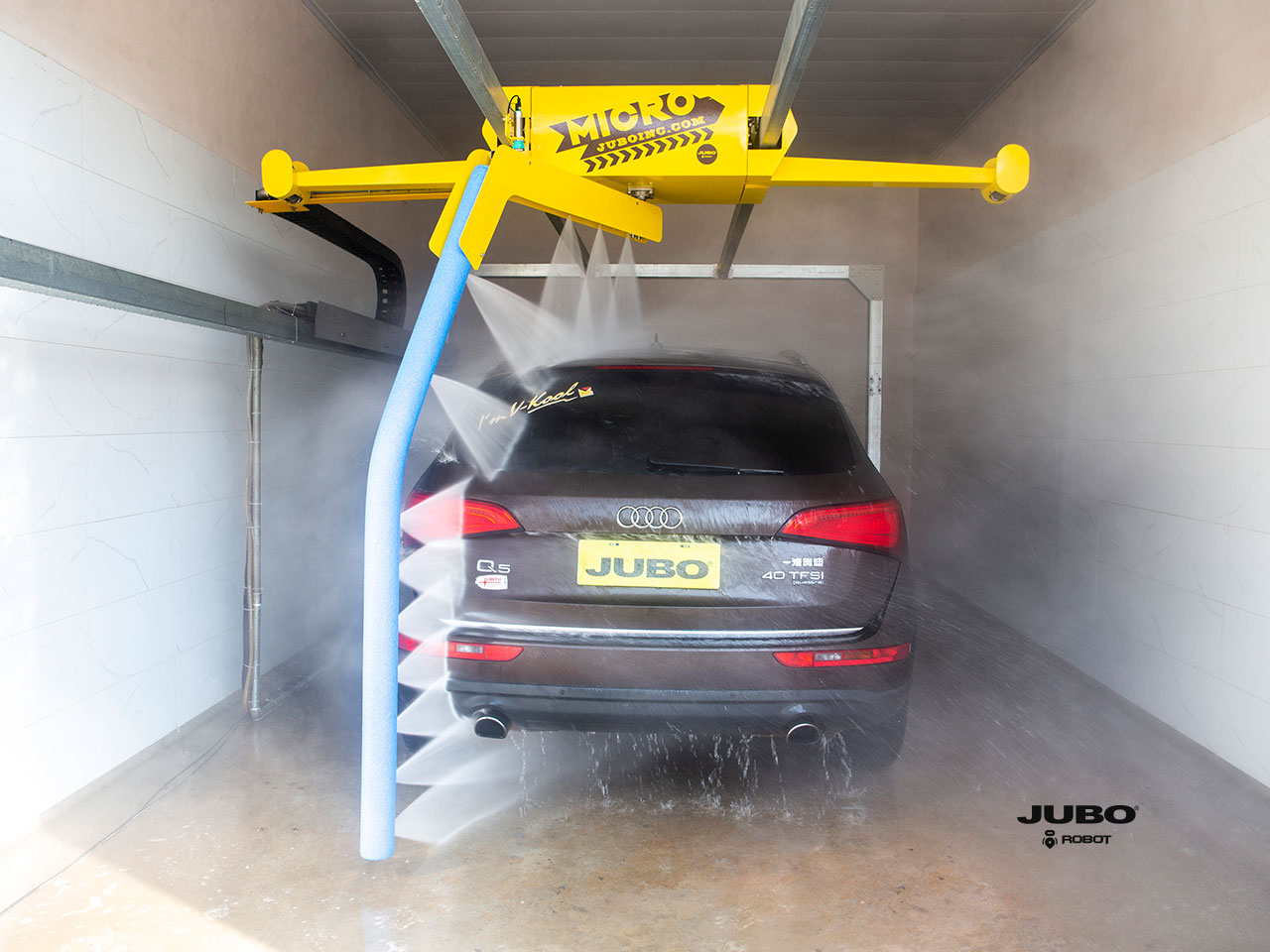

High pressure blast program of Touchfree car wash machine MICRO jubo

Pre-soak Acid program of Touchfree car wash machine MICRO jubo

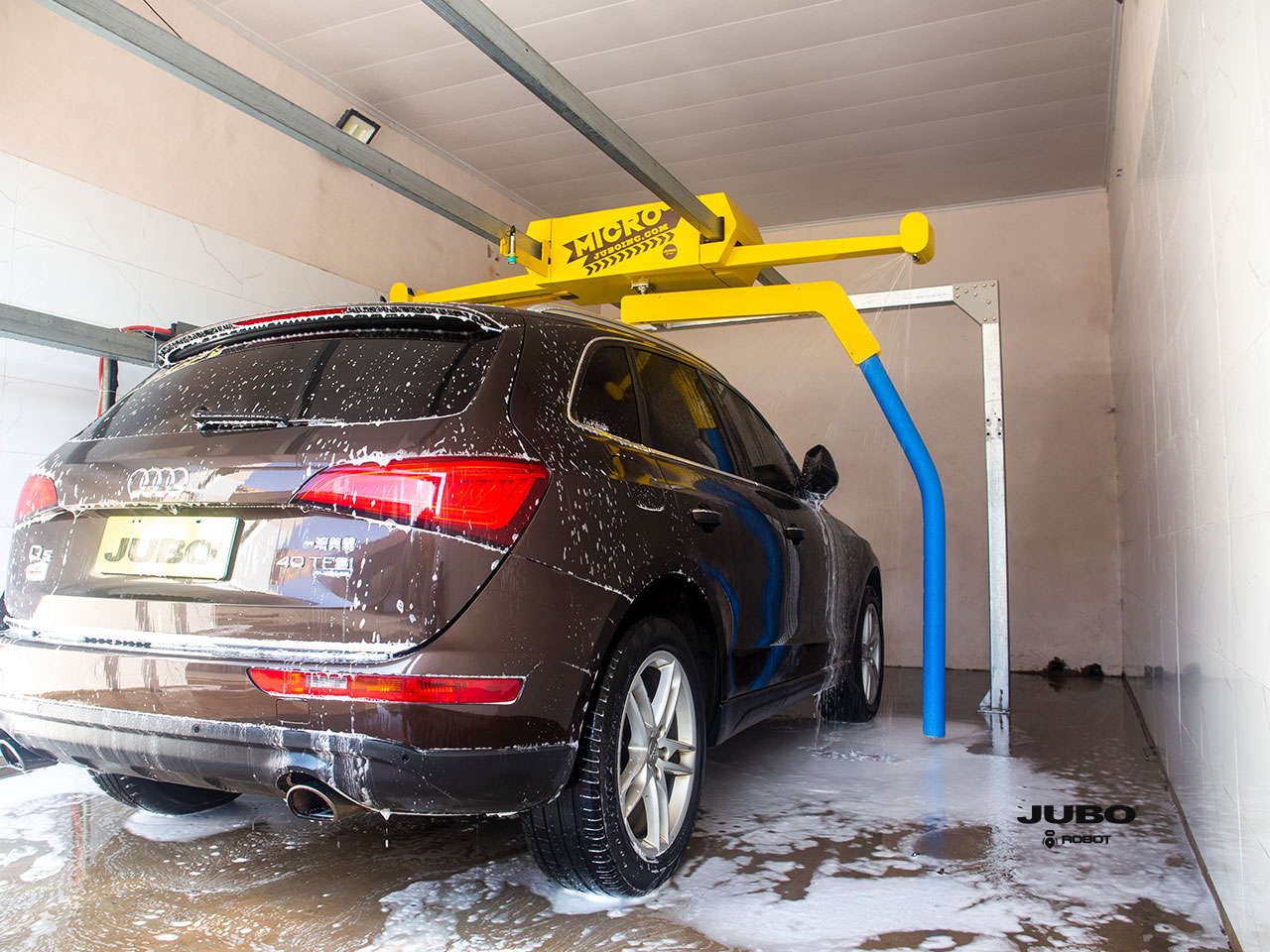

Multi-foam of Touchfree car wash machine MICRO jubo

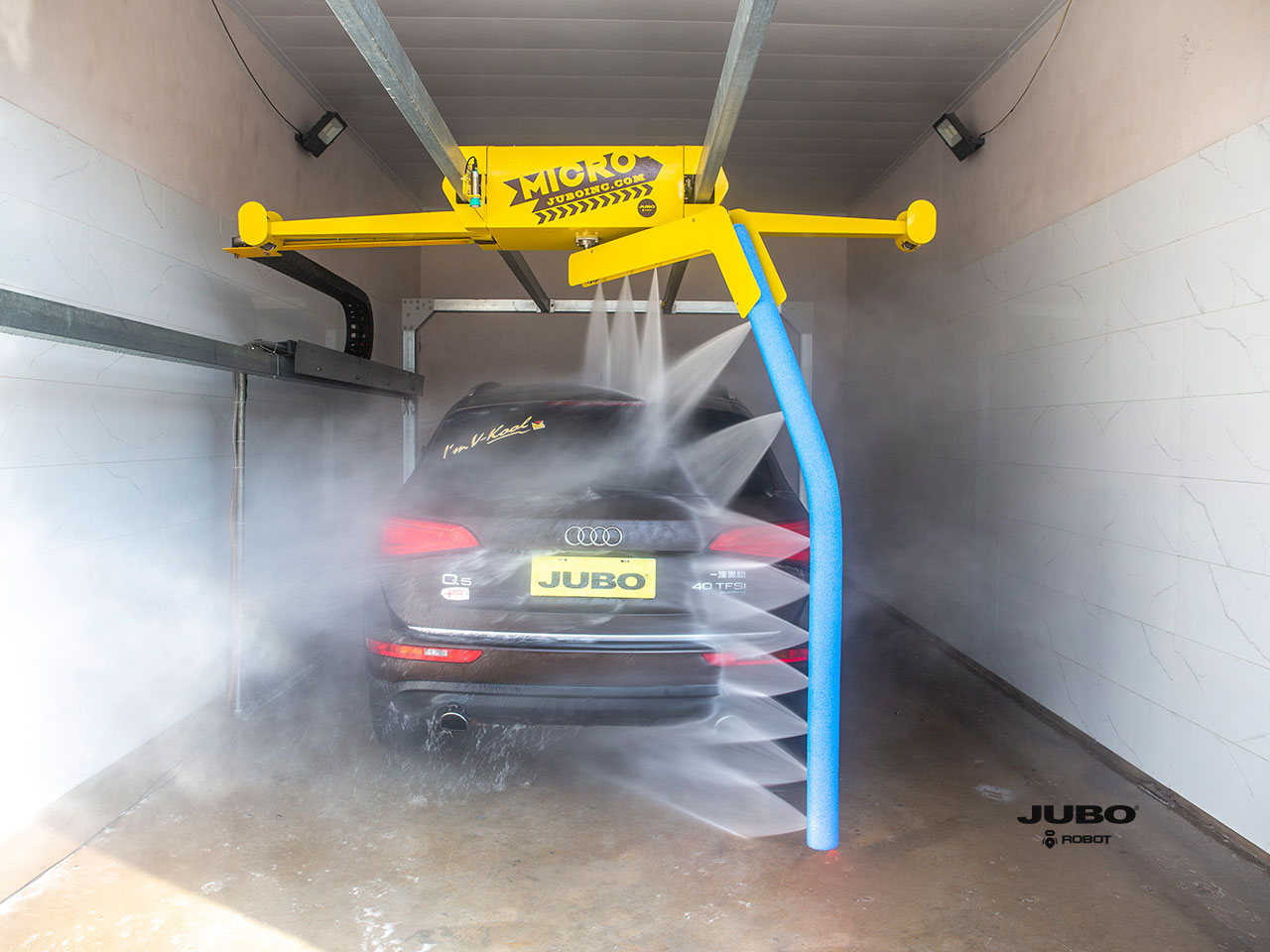

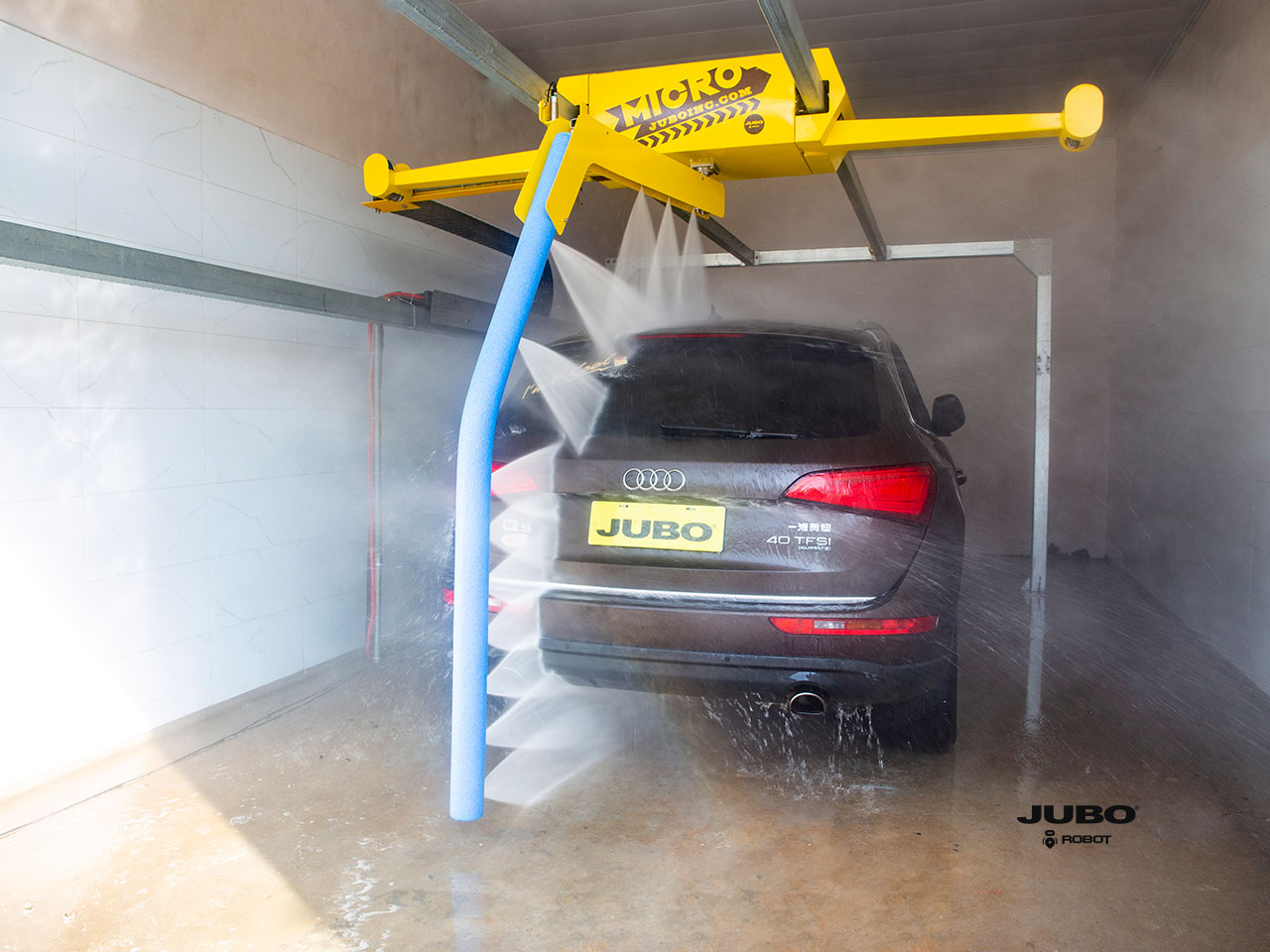

High pressure rinse program washing the rear trunk Touchfree car wash machine MICRO jubo

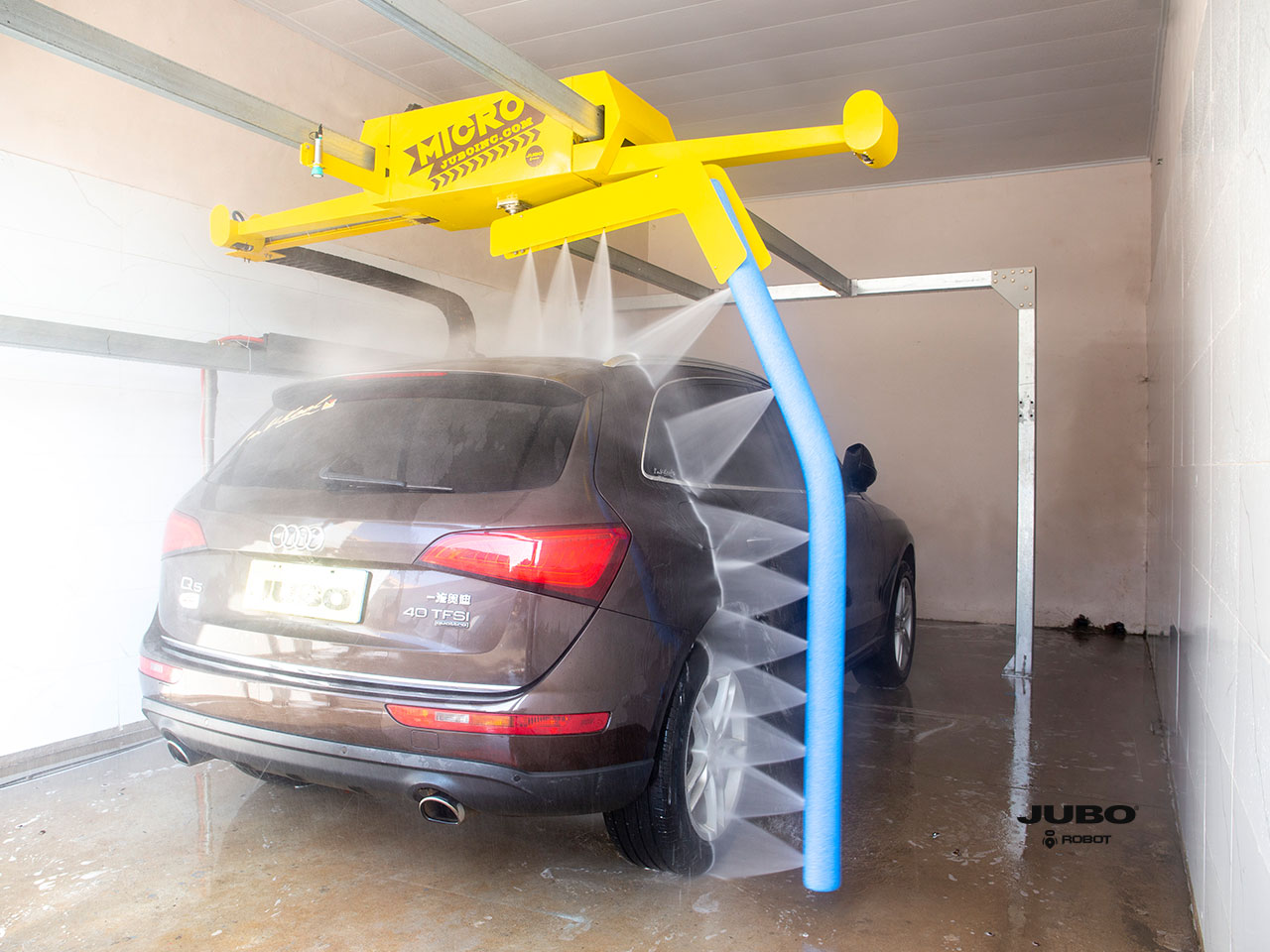

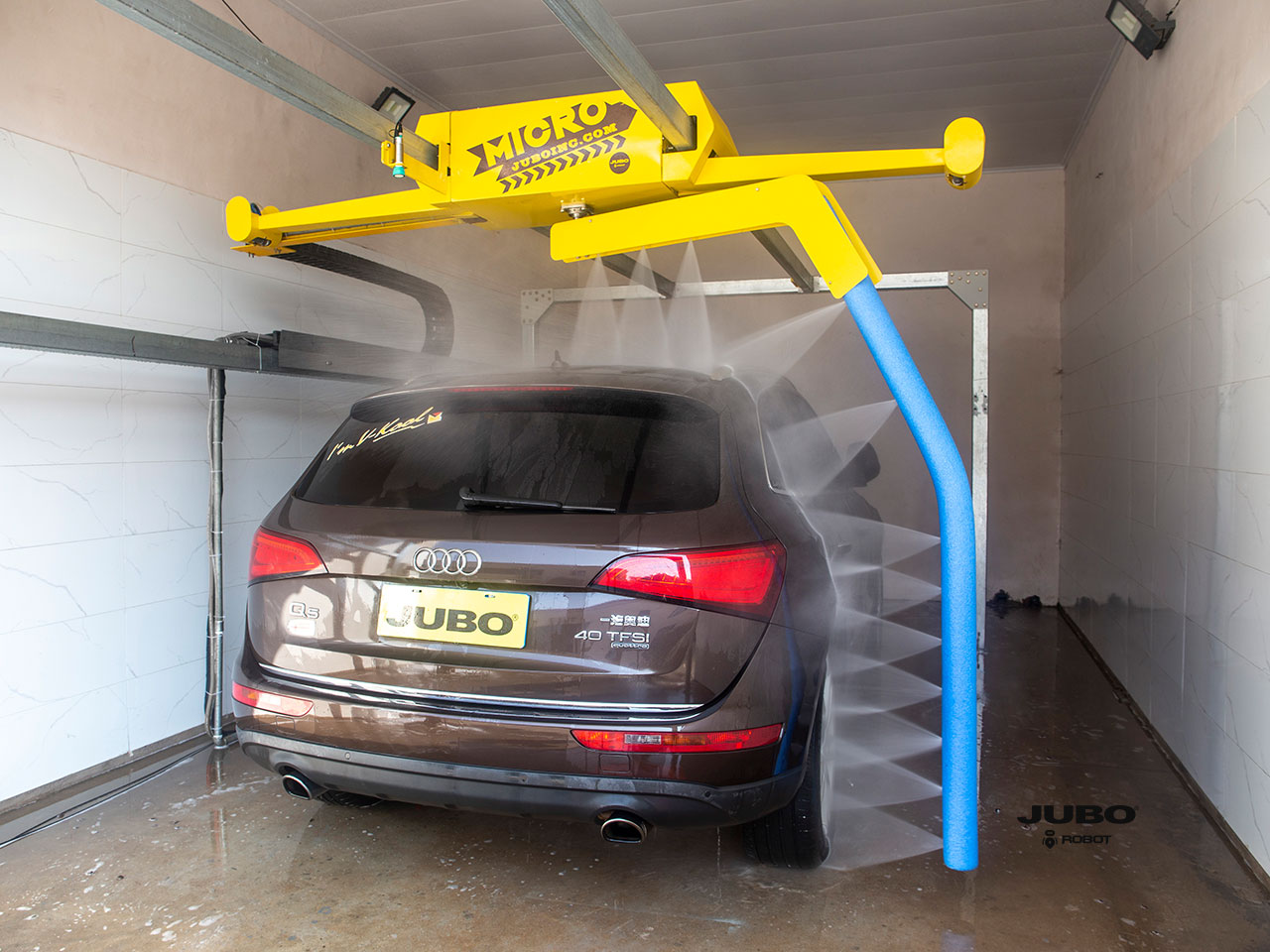

High pressure rinse rear wheel Touchfree car wash machine MICRO jubo

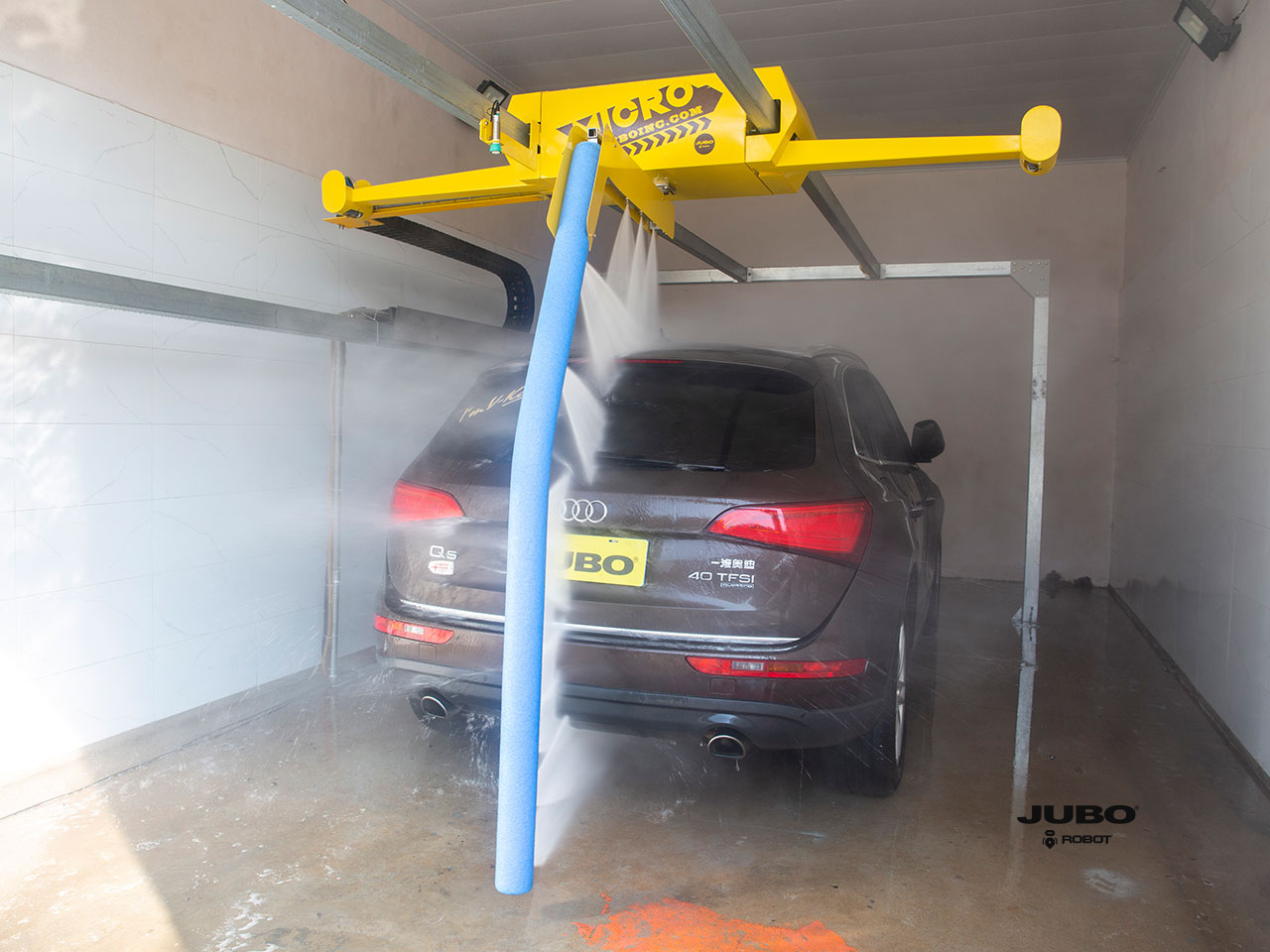

Rear trunk rinse Touchfree car wash machine MICRO jubo

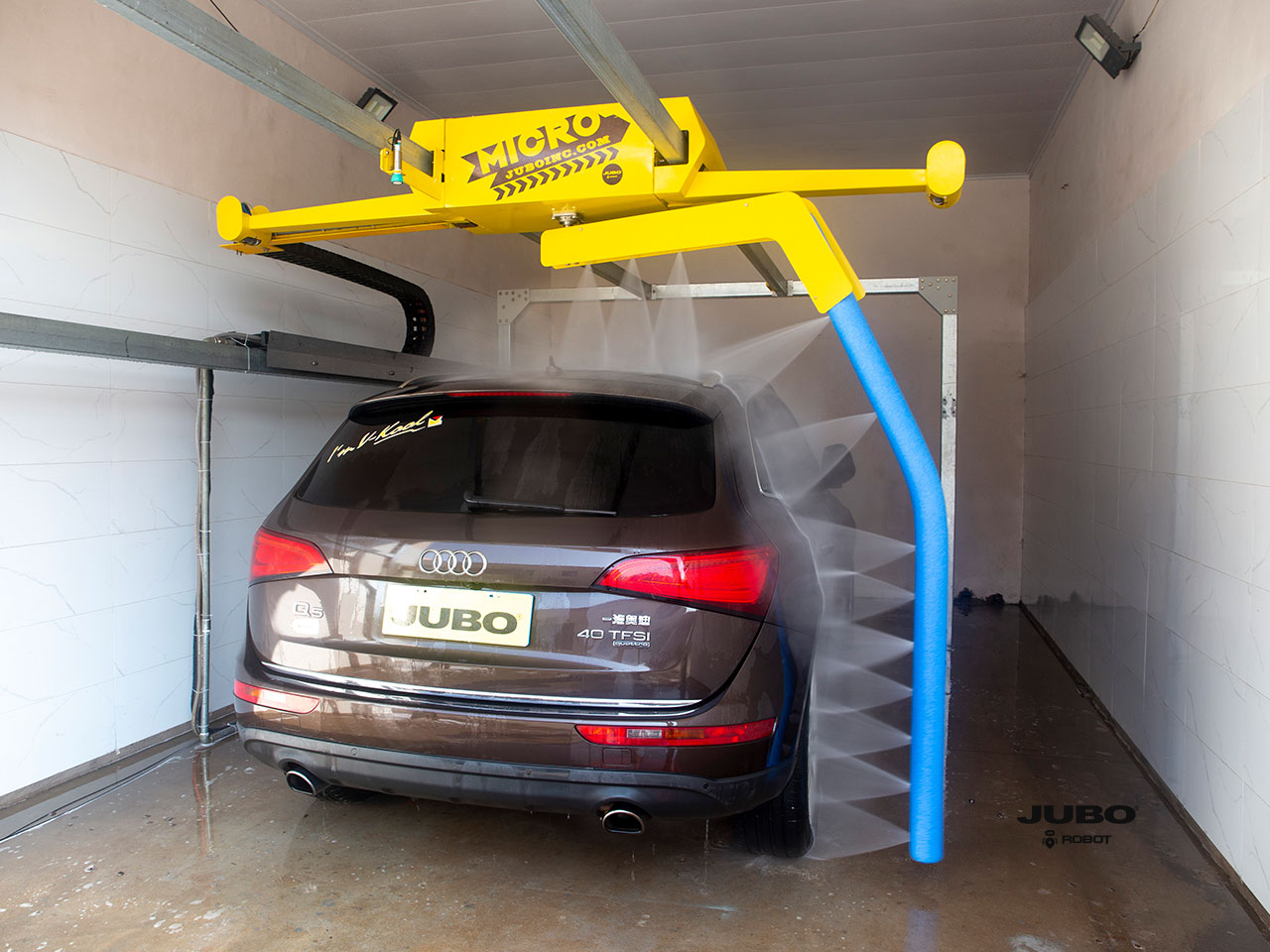

Rear wheel rinse Touchfree car wash machine MICRO jubo

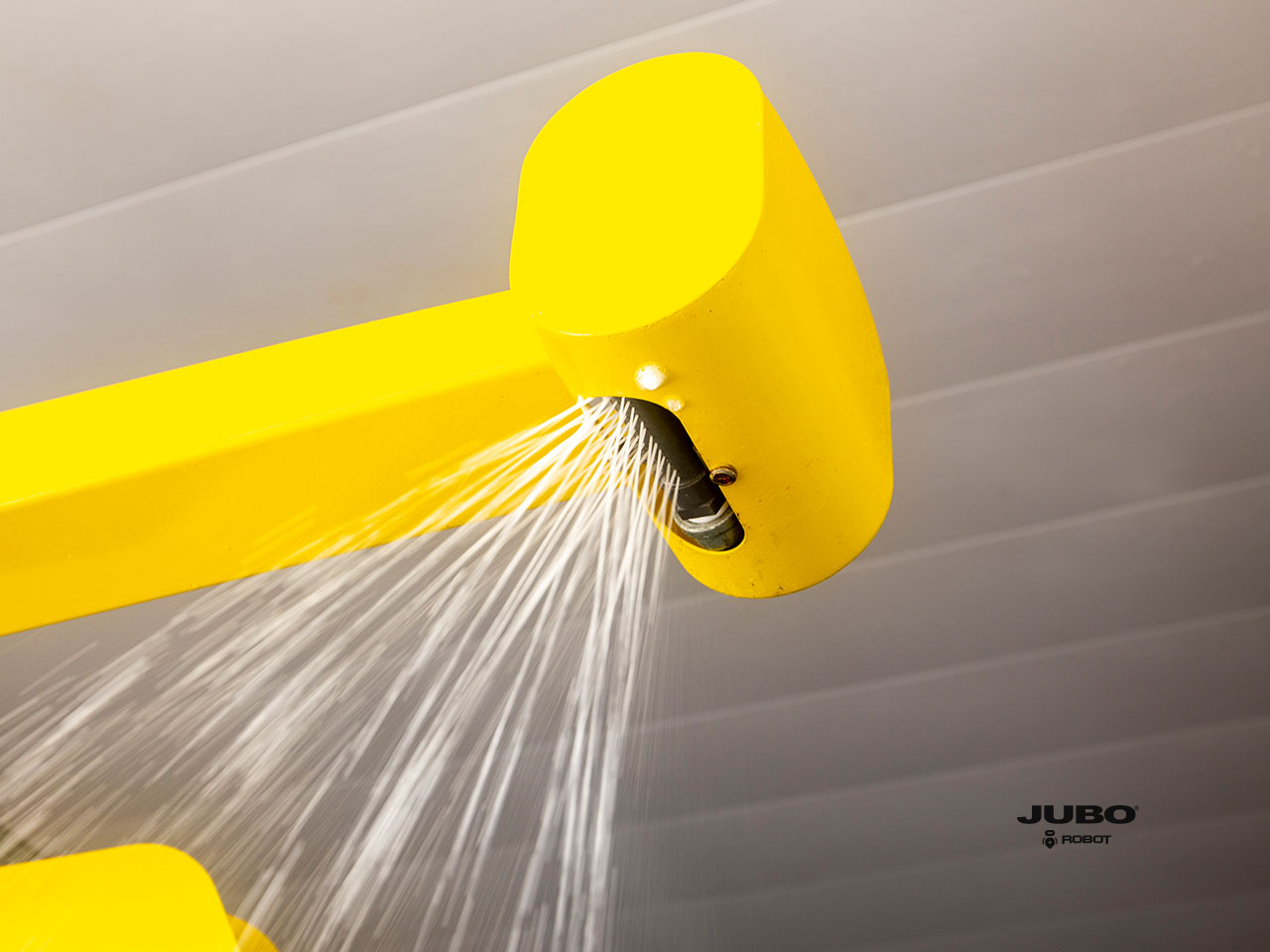

Side foam of Touchfree car wash machine MICRO jubo

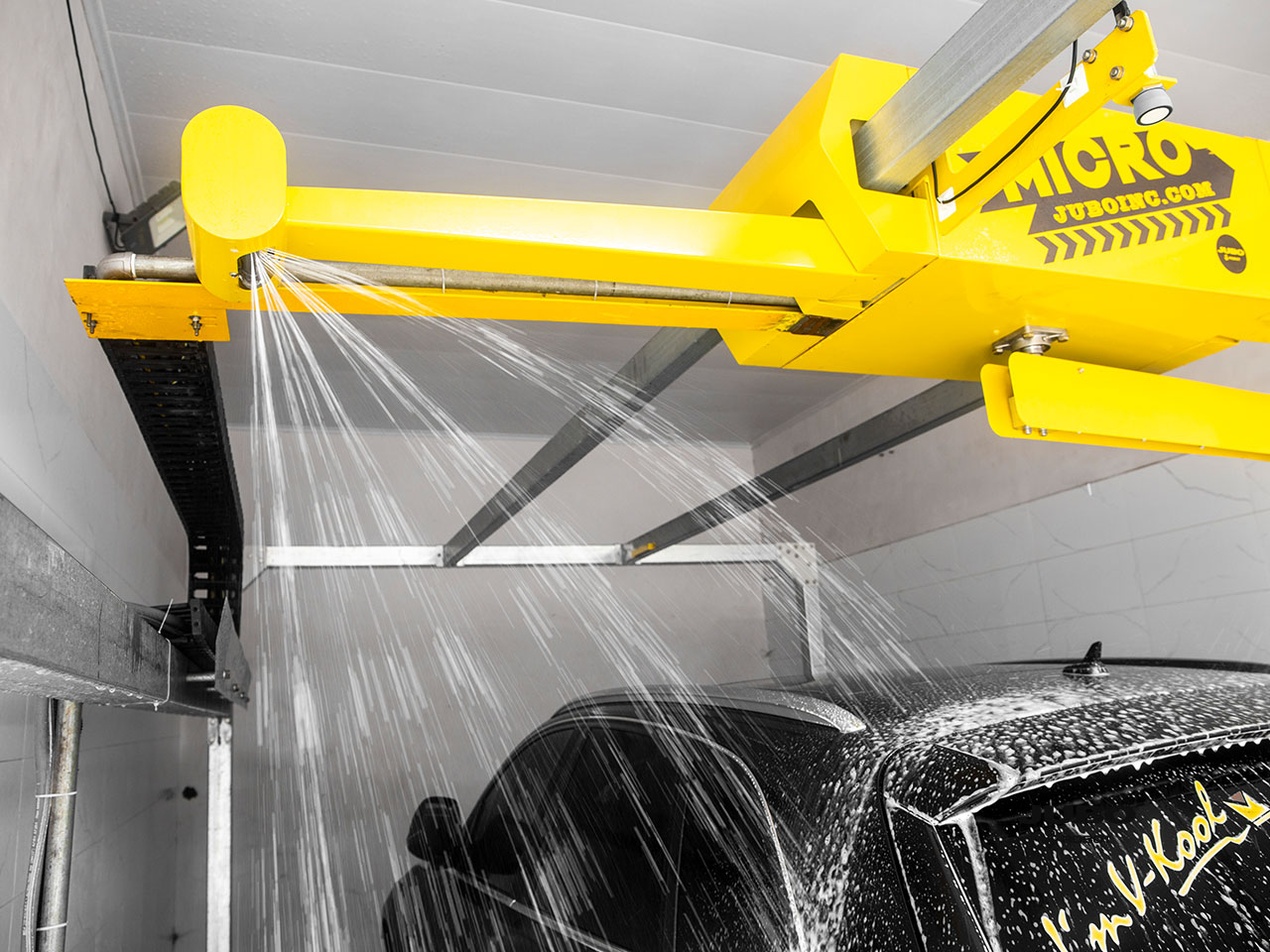

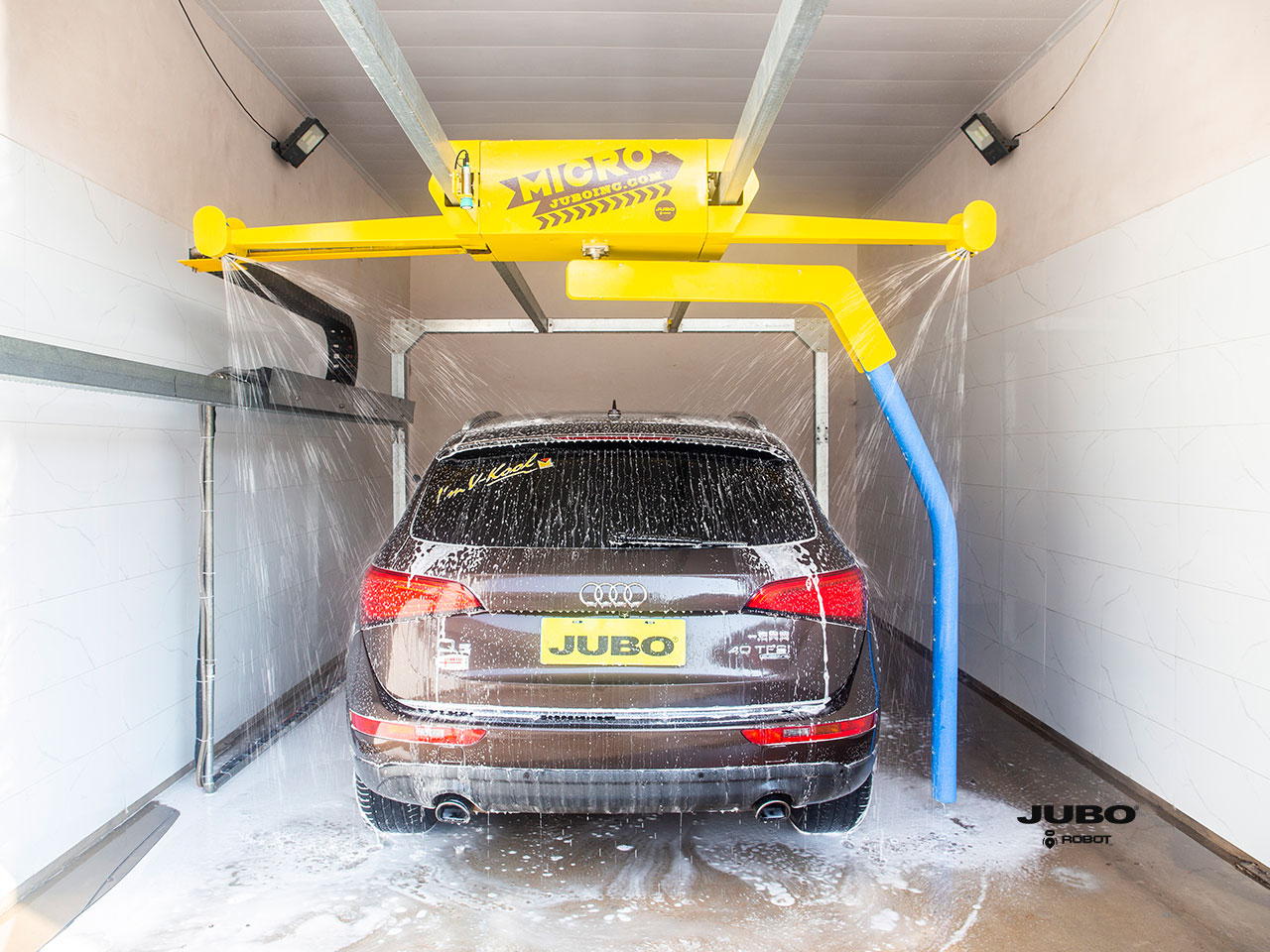

Side multi-foam Touchfree car wash machine MICRO jubo

Side multi-foam front hood spray Touchfree car wash machine MICRO jubo

High pressure rinse and E-chain of Touchfree car wash machine MICRO jubo

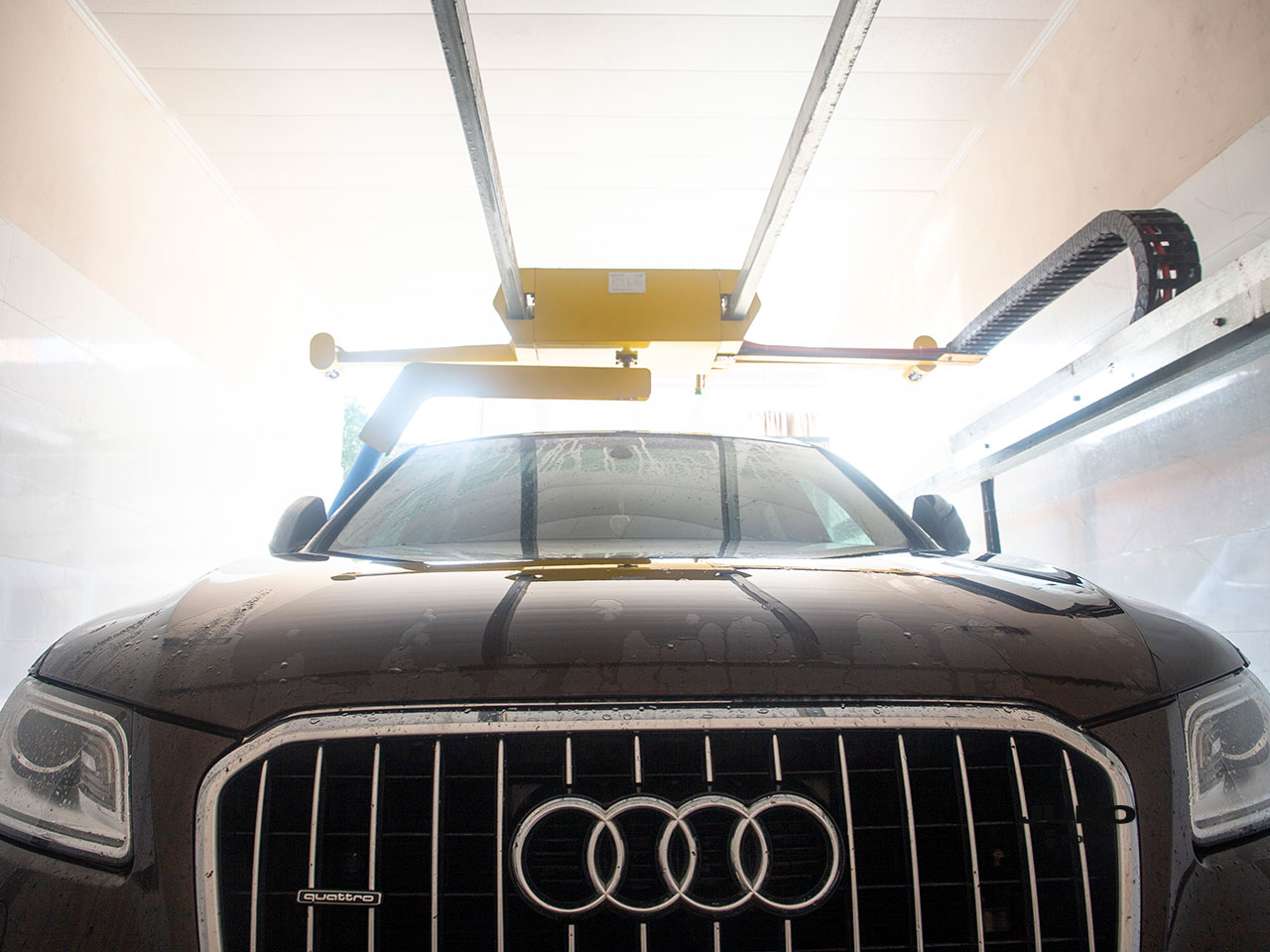

Back view of Touchfree car wash machine MICRO jubo

Features

Anti-corrosive Hot-dipped galvanized steel & Stainless steel material
Smart 360 Technology (with: Smart Networking, Smart Dwell)
Automatic Obstacle Guidance
Pump Station
Smart Arch Control, Smart Drying System and Smart Cleaning System
Electrical Control Panels
Anti-corrosive metering pump
Ultimate Cover Package
Advanced Arch Package
Electric High Pressure Gatling Spray Nozzles
Free Standing Frame
Wash Activation Entry Terminals
High Pressure Rinse Arch

Electricity and power supply	3PHASE 380V 50HZ 15kW
Electrical system	French Schneider
Min installation dimensions	L6400 x W3200 x H 3100mm
Max washing vehicle dimensions	L5500 x W2600 x H2100mm
Material	Hot dipped galvanized steel, Stainless steel 304
Water pressure	60~80Bar
Dryer	Optional
Drive system	Roller
Wash speed	2-5minutes/car, adjustable
Chemical consumption	0.02~0.08L/car, adjustable
Wash cycle	Chassis wash Presoak HP water Dryer(Optional)

Deployment

Deployed for outdoor wash stations or single in-bay wash store, several self-serve wash bays and single automatic touchless car wash system will be a good idea to work together. Steel frame or wall mounted both works.

Application

Mini
Sedan
SUV
MPV
Pickup-Truck

FAQ - frequently asked questions

What equipment does the micro consist of?

Main control unit (MCU), control panel, control terminal, touchscreen, sensor detecting system, bridge, frame, pipeline for water, pipeline for chemical, tube for pressure air, pressure pump, chemical pump, accessories like cables tubes sensors remote controller etc.

What functions does it perform?

Pressure water, Pre-soak, Wax

Is it possible in the future to buy additional equipment from you and install it on the micro?

It is possible, but MICRO designed to be simple, so the additional equipment will not be such many like lavafoam in jubo360, Something like chemicals or fixed dryer is ok

Do you need a technical room for a pump? what size?

Recommended more than 3 x 2 meters

What do customers prepare before installation?

Water storage, power supply, air compressor, flat land, recommend concrete slap thickness 200+mm

Will representatives of the plant go to installation and commissioning?

For MICRO, you don't need an engineer, you can install it yourself with support manualbook and videos

What is the water pressure on the micro?

60-80 bar, standard equipped with 11kW pump

Can the MICRO standard pump be changed to a more powerful pump?

JB16 pump is an option to replace the standard pump, the JB16 working on 120bar with 22kW. Stainless steel pump head with Ceramic coating spool plunger.

We have did

The pump can work max 160bar.

How is the foam supplied?

The Pre-soak(active foam) applied through the arm nozzles, the foam/wax applied through the side wings.

What is the maximum height of a car on a micro that can be washed?

The system MICRO we built with frame height is 2760mm, and offering arm height of 2220mm. So max washing 2100mm vehicles is no problem

What is the consumption of foam per car?

Foam dosing pump flow speed 6~12L/h adjustable

What is the consumption of water per car?

The water pump flow speed 130L/min adjustable

How does the driver know where to stop the car in the washing post so that the robot does not break the car ?

There are traffic lights and voice alarm will tell the driver you are in stop position. owners can put some plastic obstacles in front of the car so the car can stop at the designed position.The robot will never break the car due the 360 arm protected.

What are your ratings for JUBO touchfree robot models?

MICRO small to install in a limited space, VENTUS with low performance 3dryers, Tornado with high performance 4 dryers, Jubo360 full of modern technologies on car wash robot, high-end. details in sheet bellow

Differences among touchless car wash models

"●" include "○"optional "/“ none

Items	jubo360	ventus	tornado	parvus	micro
Chassis jet	●	●	●	●	●
Side combo jet	●	●	●	●	●
Presoak A	●	●	●	●	●
Presoak B	○	○	○	○	○
Tri-color foam	●	○	○	○	○
One-color foam	○	●	●	○	○
Foamfall	○	○	○	○	○
HP water	●	●	●	●	●
RainX	●	●	●	○	○
Dryer	●	●	●	○	○
Gatling jet	○	○	○	○	○
Led screen	●	○	○	○	○
Spot Free	○	○	○	○	○
Osmossis	○	○	○	○	○
WheelMaster	○	○	○	○	○
360Arm protection	●	●	●	●	●
Car length detect	●	●	●	●	●
Car width detect	●	/	/	/	/
Failure alarm	●	●	●	●	●
E-Chain	●	/	/	/	●
Terminal control	●	●	●	●	●
Touchscreen	●	○	○	○	○
Frame	●	●	●	●	●
